JX-S
100(EB)
EXAMPLES
OF
USE

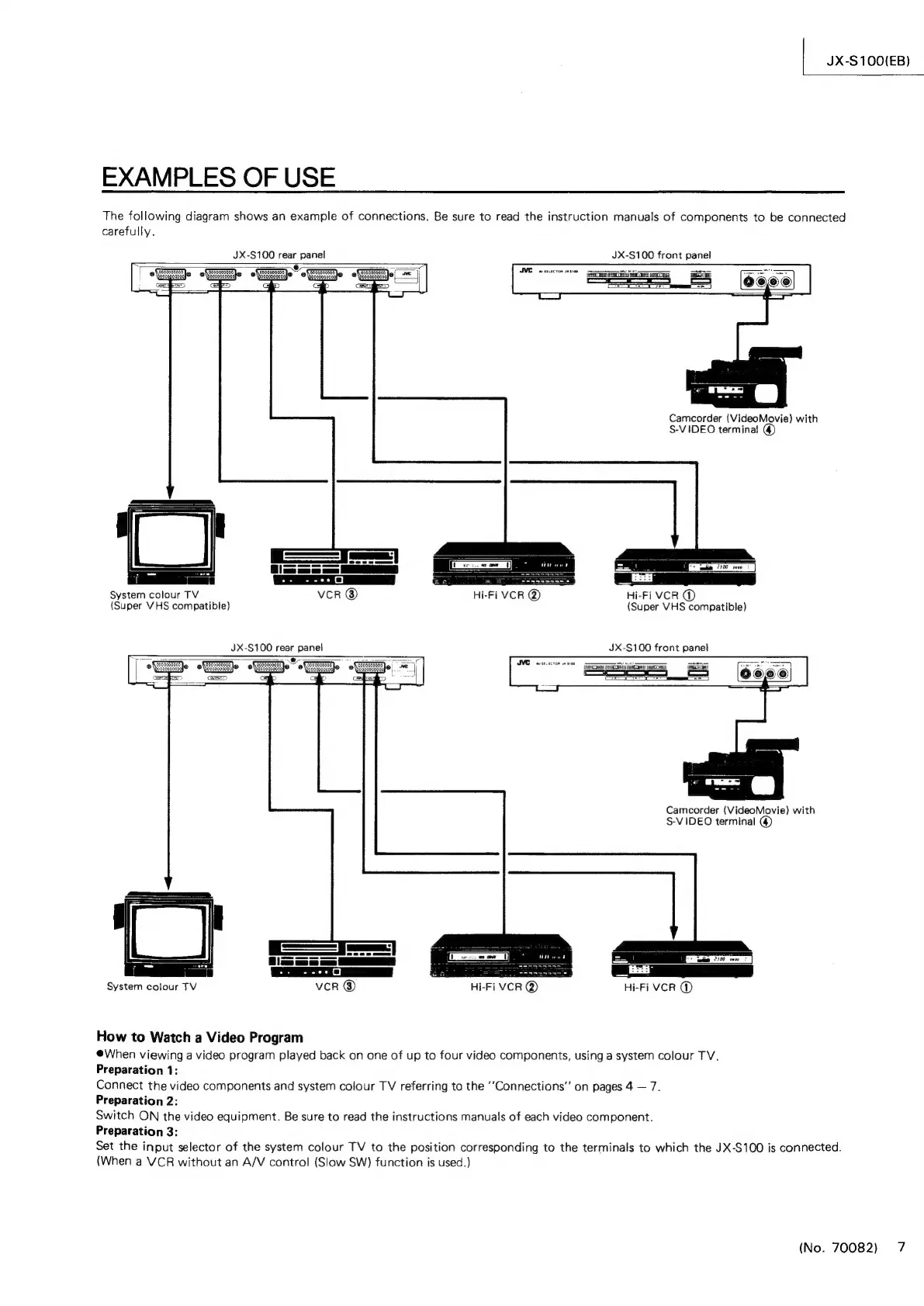

The
following
diagram
shows
an
example
of
connections.
Be
sure
to
read
the
instruction
manuals
of
components
to
be
connected
carefully,
JX-S100
rear
panel
JX-S100
front
panel
d000T0000
®
Yoooapaacag
Camcorder
(VideoMovie)
with
S-VIDEO
terminal
@
System
colour
TV
vcr
@
Hi-Fi
VCR
@
Hi-Fi
VCR
@
(Super
VHS
compatible)
(Super
VHS
compatible)
JX-S100
rear
panel
JX-S$100
front
panel
3500000
0090000000
0000000009)
Camcorder
(VideoMovie)
with
S-VIDEO
terminal
@
System
colour
TV
Hi-Fi
VCR
@
How
to
Watch
a
Video
Program
®When
viewing
a
video
program
played
back
on
one
of
up
to
four
video
components,
using
a
system
colour
TV.
Preparation
1:
Connect
the
video
components
and
system
colour
TV
referring
to
the
“‘Connections’’
on
pages
4
7.
Preparation
2:
Switch
ON
the
video
equipment.
Be
sure
to
read
the
instructions
manuals
of
each
video
component.
Preparation
3:
Set
the
input
selector
of
the
system
colour
TV
to
the
position
corresponding
to
the
terminals
to
which
the
JX-S100
is
connected.
(When
a
VCR
without
an
A/V
control
(Slow
SW)
function
is
used.)
(No.
70082)
