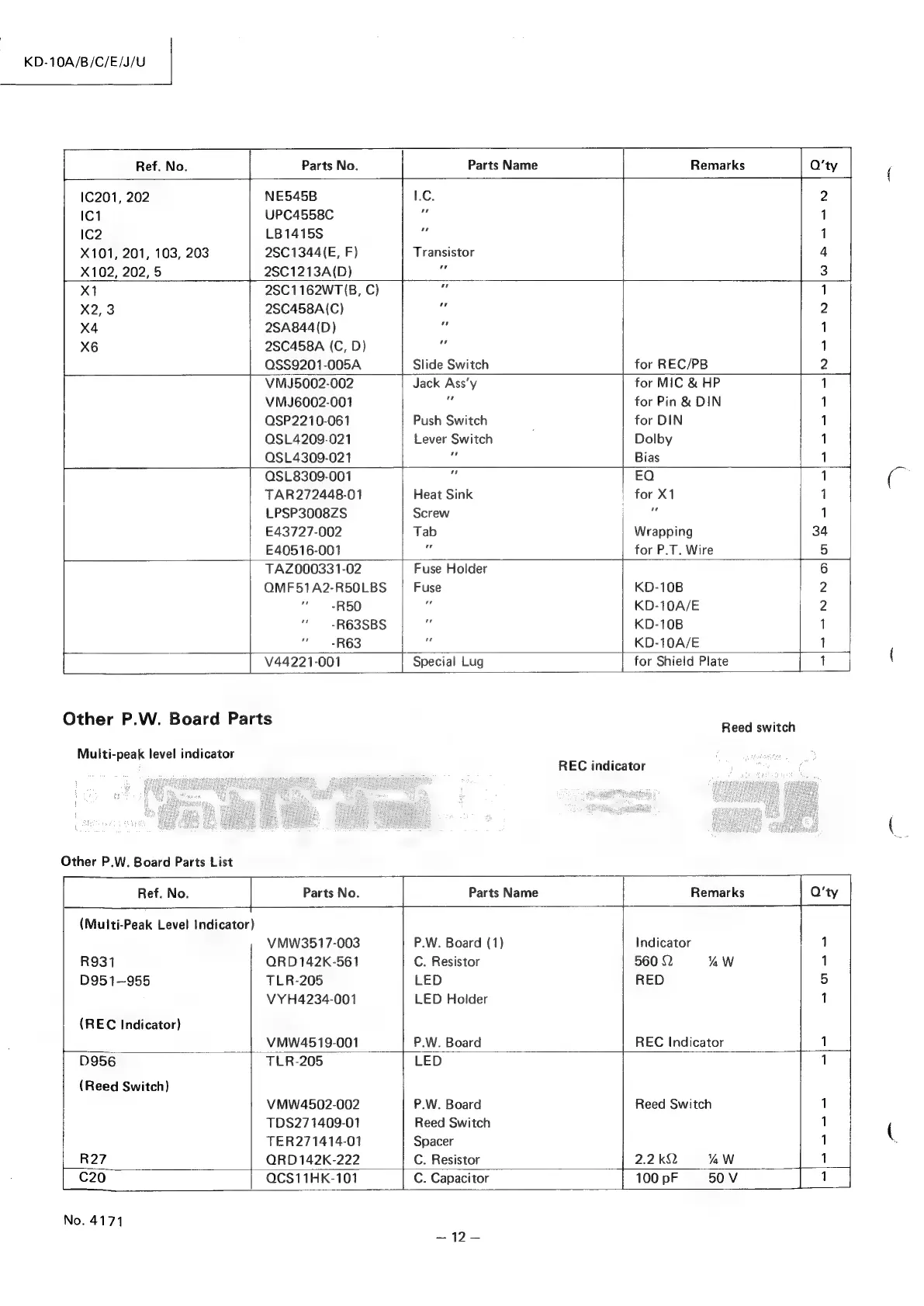

KD-10A/B/C/E/J/U
Jaen |
Ref. No. Parts No. Parts Name Remarks Q’ty
1C201, 202 NE545B I.C. 2
IC1 UPC4558C 7 1
IC2 LB1415S 1
X101, 201, 103, 203 28C1344(E, F) Transistor 4
X102, 202, 5 2S8C1213A(D) " 3 e
x1 2SC1162WT(B, C) ud 1
X2,3 2SC458A(C) . 2
x4 2SA844(D) ed 1
X6 2SC458A (C, D) te 1
QSS9201-005A Slide Switch for REC/PB 2
VMJ5002-002 Jack Ass’y for MIC & HP ‘eae
VMJ6002-001 “ for Pin & DIN 1
QSP2210-061 Push Switch for DIN 1
OSL4209-021 Lever Switch Dolby 1
QSL4309-021 és Bias 1
QSL8309-001 . EQ ae
TAR272448-01 Heat Sink for X1 1
LPSP3008ZS Screw pee 1
E43727-002 Tab Wrapping 34
E40516-001 | ie for P.T. Wire 5
TAZ000331-02 Fuse Holder 6
OMF51A2-R50LBS Fuse KD-10B 2
"" -R50 - KD-10A/E 2
" -R63SBS " KD-10B 1
" -R63 " KD-10A/E 1
V44221-001 Special Lug for Shield Plate |
Other P.W. Board Parts
Multi-peak level indicator
Other P.W. Board Parts List
REC indicator
Reed switch
rc—
Ref. No. Parts No. Parts Name Remarks Q'ty
(Multi-Peak Level Indicator)
VMW3517-003 P.W. Board (1) Indicator 1
R931 QRD 142K-561 C. Resistor 560 Q2 % W 1
D951—955 TLR-205 LED RED 5
VYH4234-001 LED Hoider 1
(REC Indicator)
VMW4519-001 P.W. Board REC Indicator 1
D956 TLR-205 LED T 1
(Reed Switch)
VMW4502-002 P.W. Board Reed Switch 1
TDS271409-01 Reed Switch 1
TER271414-01 Spacer 1
R27 QRD142K-222 C. Resistor 2.2 kQ % W 1
C20 QCS11HK-101 C. Capacitor 100 pF 50 V 1
No. 4171
