| KD-10A/B/C/E/J/U

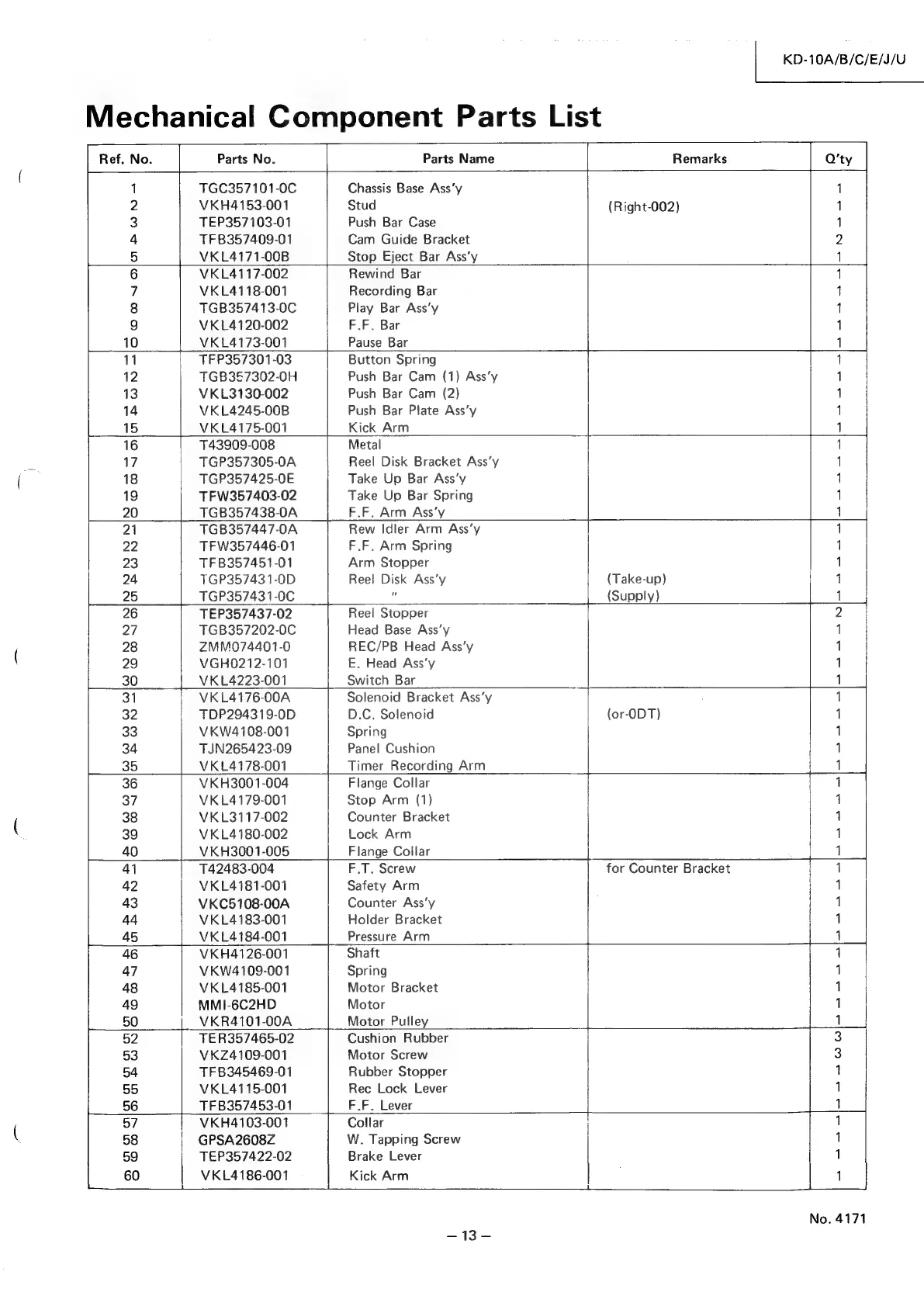

Mechanical Component Parts List
Ref. No. Parts No. Parts Name Remarks O'ty
1 TGC357101-0C Chassis Base Ass’y 1
2 VKH4153-001 Stud (Right-002) 1
3 TEP357103-01 Push Bar Case 1
4 TFB357409-01 Cam Guide Bracket 2
5 VKL4171-00B Stop Eject Bar Ass’y 1
6 VKL4117-002 Rewind Bar 1
7 VKL4118-001 Recording Bar 1
8 TGB357413-0C Play Bar Ass’y 1
9 VKL4120-002 F.F. Bar 1
10 VKL4173-001 Pause Bar 1
1 TFP357301-03 Button Spring 1 a
12 TGB3&7302-0H Push Bar Cam (1) Ass’y 1
13 VKL3130-002 Push Bar Cam (2) 1
14 VKL4245-00B Push Bar Plate Ass’y 1
15 VKL4175-001 Kick Arm | 1
16 T43909-008 Metal 1
17 TGP357305-0A Reel Disk Bracket Ass’y 1
18 TGP357425-0E Take Up Bar Ass’y 1
19
TFW357403-02
Take
Up
Bar
Spring
1
20 TGB357438-0A —|_—OF.F. Arm Ass’y 1
21 TGB357447-0A Rew Idler Arm Ass’y 1
22
TFW357446-01
F.F.
Arm
Spring
1
23
TFB357451-01
Arm
Stopper
1
24 TGP357431-0D Reel Disk Ass‘y (Take-up) 1
25 TGP357431-0C i (Supply} 1
26 TEP357437-02 Reel Stopper 2
27 TGB357202-0C Head Base Ass’y 1
28 ZMMO74401-0 REC/PB Head Ass’y 1
29 VGH0212-101 E. Head Ass’y 1
30 VKL4223-001 Switch Bar _| 1
31 VKL4176-00A Solenoid Bracket Ass’y 1
32 TDP294319-0D D.C. Solenoid (or-ODT) 1
33 VKW4108-001 Spring 1
34 TJN265423-09 Panel Cushion 1
35 VKL4178-001 Timer Recording Arm | 1
36
VKH3001-004
Flange
Collar
1
37 VKL4179-001 Stop Arm (1) 1
38 VKL3117-002 Counter Bracket 1
39 VKL4180-002 Lock Arm 1
40 VKH3001-005 Flange Collar | 1
41 T42483-004 F.T. Screw ae | for Counter Bracket 1
42 VKL4181-001 Safety Arm 1
43
VKC5108-00A
Counter
Ass‘y
1
44 VKL4183-001 Holder Bracket 1
45 VKL4184-001 Pressure Arm | | 1 |
46
VKH4126-001
Shaft
1
47 VKW4109-001 Spring 1
48 VKL4185-001 Motor Bracket 1
49 MMI-6C2HD Motor 1
50 VKR4101-00A Motor Pulley | 1
52 TER357465-02 Cushion Rubber 3
53 VKZ4109-001 Motor Screw 3
54 TFB345469-01 Rubber Stopper 1
55 VKL4115-001 Rec Lock Lever 1
56 TFB357453-01 F.F. Lever 1
57 VKH4103-001 Collar r 1
58 GPSA2608Z W. Tapping Screw 1
59 TEP357422-02 Brake Lever 1
60 VKL4186-001 Kick Arm 1
1 a Tae
—~13-—
No. 4171
