KD-10A/B/C/E/J/U |

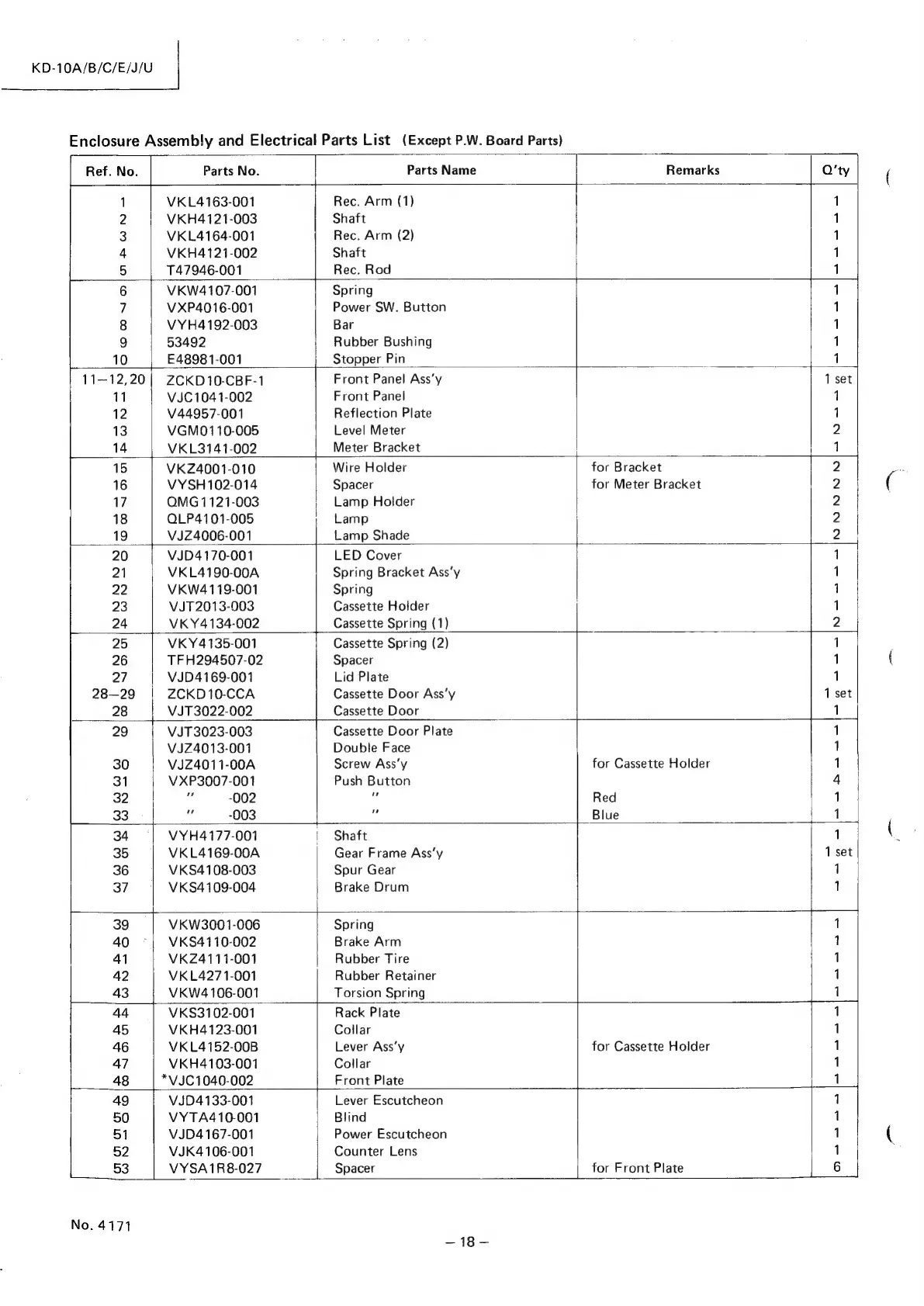

Enclosure Assembly and Electrical Parts List (Except P.W. Board Parts)
Parts No. Parts Name Remarks O'ty
1 VKL4163-001 Rec. Arm (1) 1
2 VKH4121-003 Shaft 1
3 VKL4164-001 Rec. Arm (2) 1
4 VKH4121-002 Shaft 1
5 T47946-001 Rec. Rod 1
6 VKW4107-001 Spring 1
7 VXP4016-001 Power SW. Button 1
8 VYH4192-003 Bar 1
9
53492
Rubber
Bushing
1
10
E48981-001
Stopper
Pin
;
fe
11—12,20| ZCKD10-CBF-1 Front Panel Ass’y 1 set
11
VJC104
1-002
Front
Panel
1
12 V44957-001 Reflection Plate 1
13. | VGMO0110-005 Level Meter 2
14
VKL3141-002
Meter
Bracket
1
15 VKZ4001-010 Wire Holder for Bracket 2
16 VYSH102-014 Spacer for Meter Bracket 2
17 QMG1121-003 Lamp Holder 2
18 QLP4101-005 Lamp 2
19 VJZ4006-001 Lamp Shade 2
20 VJD4170-001 LED Cover 1
21 VKL4190-00A Spring Bracket Ass‘y 1
22 VKW4119-001 Spring 1
23 VJT2013-903 Cassette Holder 1
VKY4134-002 Cassette Spring (1) 2
VKY4135-001 Cassette Spring (2) 1
26 TFH294507-02 Spacer 1
27 VJD4169-001 Lid Plate 1
28—29 ZCKD10-CCA Cassette Door Ass’y 1 set
28 VJT3022-002 Cassette Door 1
29 VJT3023-003 Cassette Door Plate 1
VJZ4013-001 Double Face 1
30 VJZ4011-00A Screw Ass’y for Cassette Holder 1
31 V XP3007-001 Push Button 4
32 -002 a Red 1
33 - -003 ‘“ Blue oe oe
34 VYH4177-001 Shaft 1
35 VKL4169-00A Gear Frame Ass’y 1 set
36 VKS4108-003 Spur Gear 1
37 VKS4 109-004 Brake Drum 1
- + po
39 VKW3001-006 Spring 1
40 VKS4110-002 Brake Arm 1
41 VK2Z4111-001 Rubber Tire 1
42 VKL4271-001 Rubber Retainer 1
43 VKW4106-001 Torsion Spring {1
44 VKS3102-001 Rack Plate 1
45 VKH4123-001 Collar 1
46 VKL4152-00B Lever Ass‘y for Cassette Holder 1
47 VKH4103-001 Collar 1
| 48 *V JC 1040-002 Front Plate 1
49 VJD4133-001 Lever Escutcheon 1 |
50 VYTA410-001 Blind 1
51 VJD4 167-001 Power Escutcheon 1
52 VJK4106-001 Counter Lens 1
53 VYSA1R8-027 Spacer for Front Plate i 6
No. 4171
—18—
