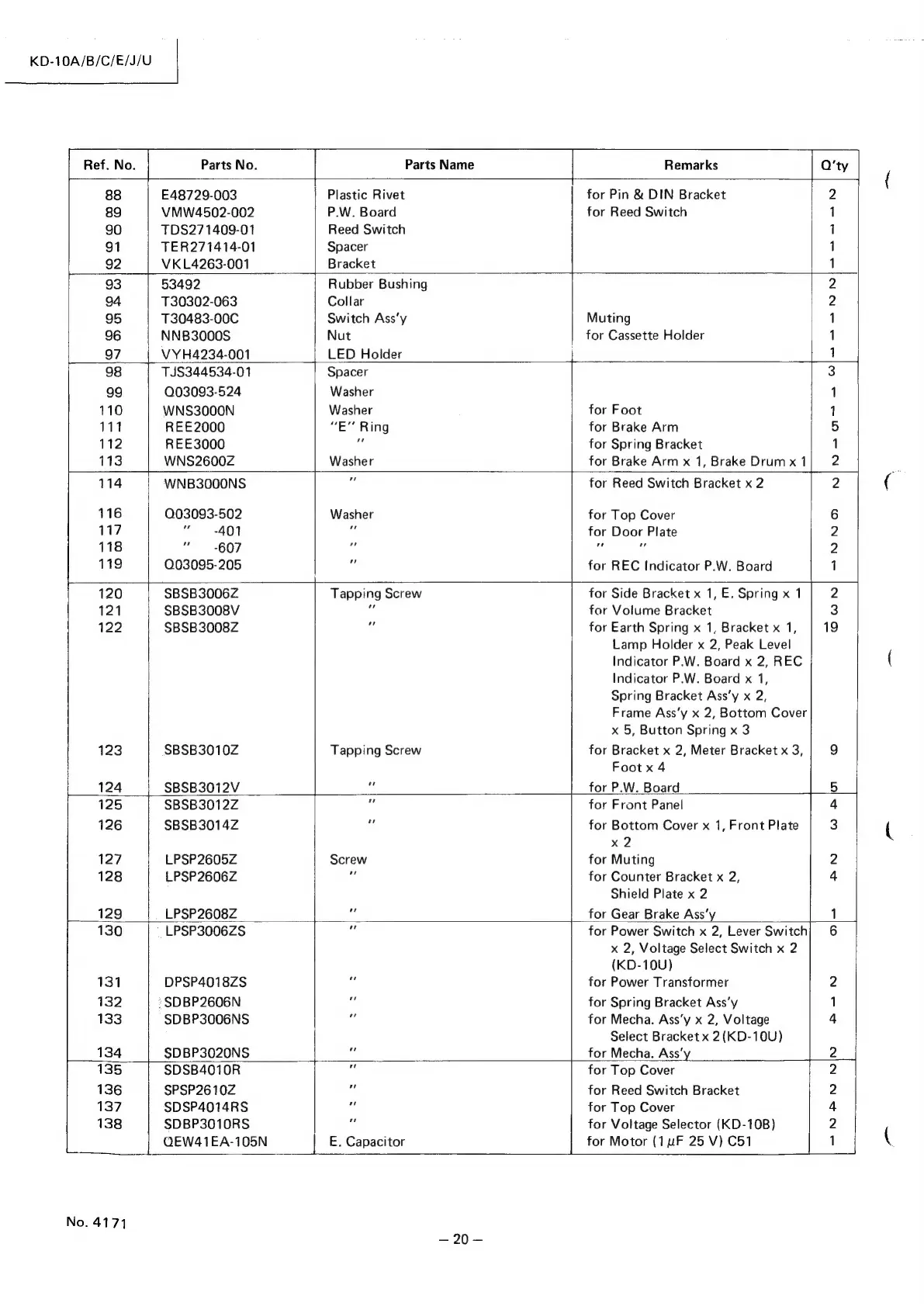

KD-10A/B/C/E/J/U
oa
No. 4171
—20—
Ref. No. Parts No. Parts Name Remarks Q'ty
88 E48729-003 Plastic Rivet for Pin & DIN Bracket 2
89 VMW4502-002 P.W. Board for Reed Switch 1
90 TDS271409-01 Reed Switch 1
91 TER271414-01 Spacer 1
[ 92 VKL4263-001 = Bracket 1
93 53492 Rubber Bushing 2
94 T30302-063 Collar 2
95 T30483-00C Switch Ass’y Muting 1
96 NNB3000S Nut for Cassette Holder 1
97 VYH4234-001 LED Holder 1
98 TJS344534-01 Spacer 3
99
Q03093-524
Washer
1
110 WNS3000N Washer for Foot 1
111 REE2000 “E” Ring for Brake Arm 5
112 REE3000 a for Spring Bracket 1
113 WNS2600Z Washer for Brake Arm x 1, Brake Drum x 1 2
114 WNB3000NS " for Reed Switch Bracket x 2 2
Q03093-502 Washer for Top Cover 6
-401 i for Door Plate 2
"
-607
o
"
"
2
Q03095-205 a for REC Indicator P.W. Board 1
SBSB30062Z Tapping Screw for Side Bracket x 1, E. Spring x 1 2
SBSB3008V is for Volume Bracket 3
SBSB3008Z " for Earth Spring x 1, Bracket x 1, 19
Lamp Holder x 2, Peak Level
Indicator P.W. Board x 2, REC
Indicator P.W. Board x 1,
Spring Bracket Ass’y x 2,
Frame Ass‘y x 2, Bottom Cover
x 5, Button Spring x 3
SBSB3010Z Tapping Screw for Bracket x 2, Meter Bracket x 3, 9
Foot x 4
SBSB3012V oe for P.W. Board 5
| S$BSB3012z " for Front Panel 4
SBSB3014Z ef for Bottom Cover x 1, Front Plate 3
x2
LPSP2605Z2 Screw for Muting 2
LPSP2606Z ed for Counter Bracket x 2, 4
Shield Plate x 2
LPSP2608Z = for Gear Brake Ass’y 1
’ LPSP3006ZS id for Power Switch x 2, Lever Switch; 6
x 2, Voltage Select Switch x 2
(KD-10U)
DPSP40182S - for Power Transformer 2
*SDBP2606N i for Spring Bracket Ass’y 1
SDBP3006NS es for Mecha. Ass’y x 2, Voltage 4
Select Bracket x 2(KD-10U)
SDBP3020NS is for Mecha. Ass’y | 2
SDSB4010R for Top Cover 2
SPSP26 10Z ad for Reed Switch Bracket 2
SDSP4014RS re for Top Cover 4
SDBP3010RS "4 for Voltage Selector (KD-10B) 2
iz QEW41EA-105N E. Capacitor for Motor (1 uF 25 V) C51 1
