JVC KD-2A User Manual

KD-2A/B/C/E/J/U |

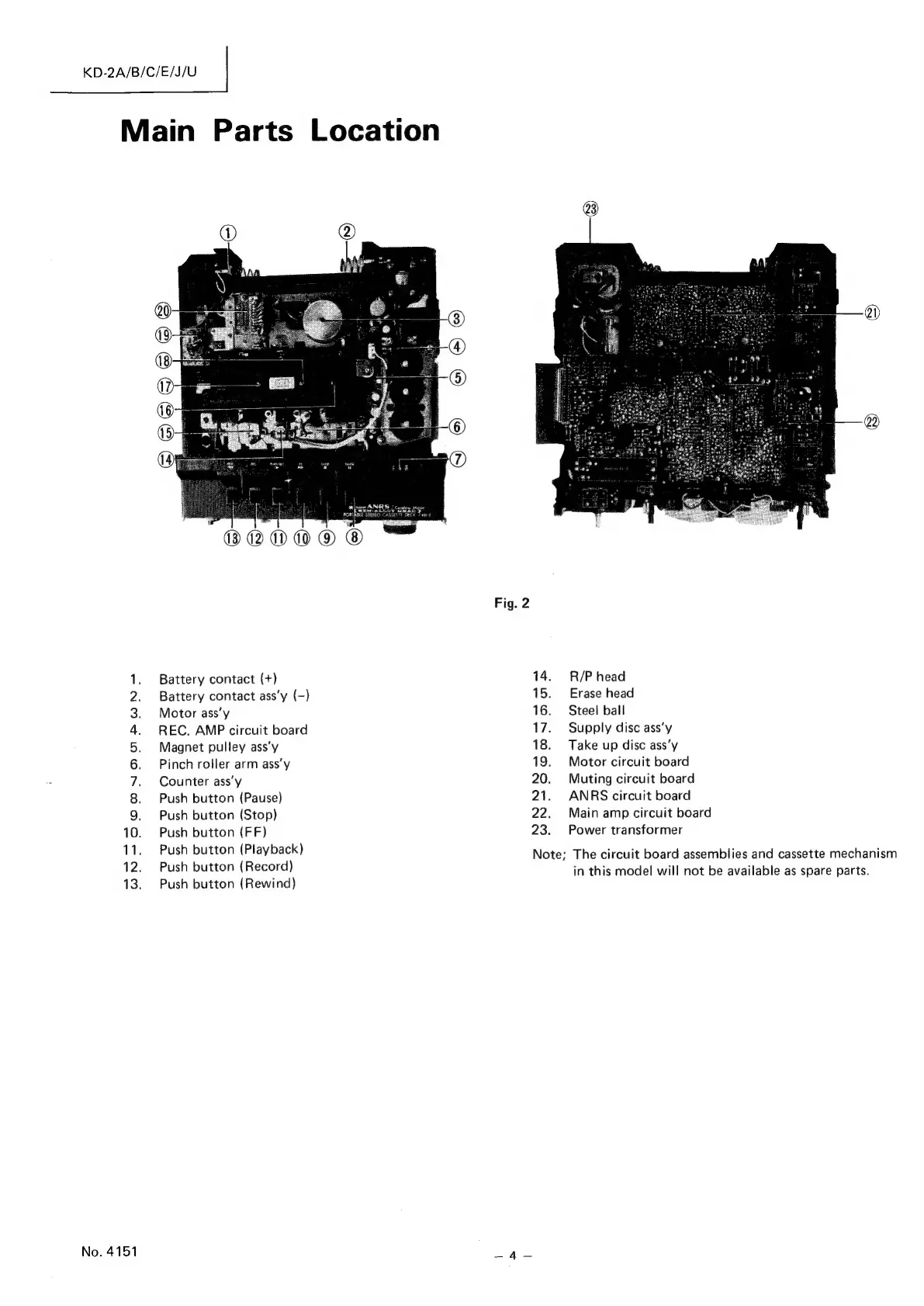

Main Parts Location
CON|APWN>
No. 4151
@Oe9eee
“OOOO ®
Fig. 2
Battery
contact
(+)
14.
Battery
contact
ass’y
(-)
15.
Motor ass’y 16.
REC.
AMP
circuit
board
17.
Magnet pulley ass’y 18.
Pinch roller arm ass’y 19.
Counter ass’y 20.
Push button (Pause) 21.
Push button (Stop) 22.
Push button (FF) 23.
Push button (Playback)
Push button (Record)
Push button (Rewind)
R/P head
Erase head
Steel ball
Supply disc ass’y
Take up disc ass’y
Motor circuit board
Muting circuit board
ANRS circuit board
Main amp circuit board
Power transformer
Note; The circuit board assemblies and cassette mechanism
in this model will not be available as spare parts.

JVC KD-2A Specifications

General

Brand	JVC
Model	KD-2A
Category	Cassette Player
Language	English
