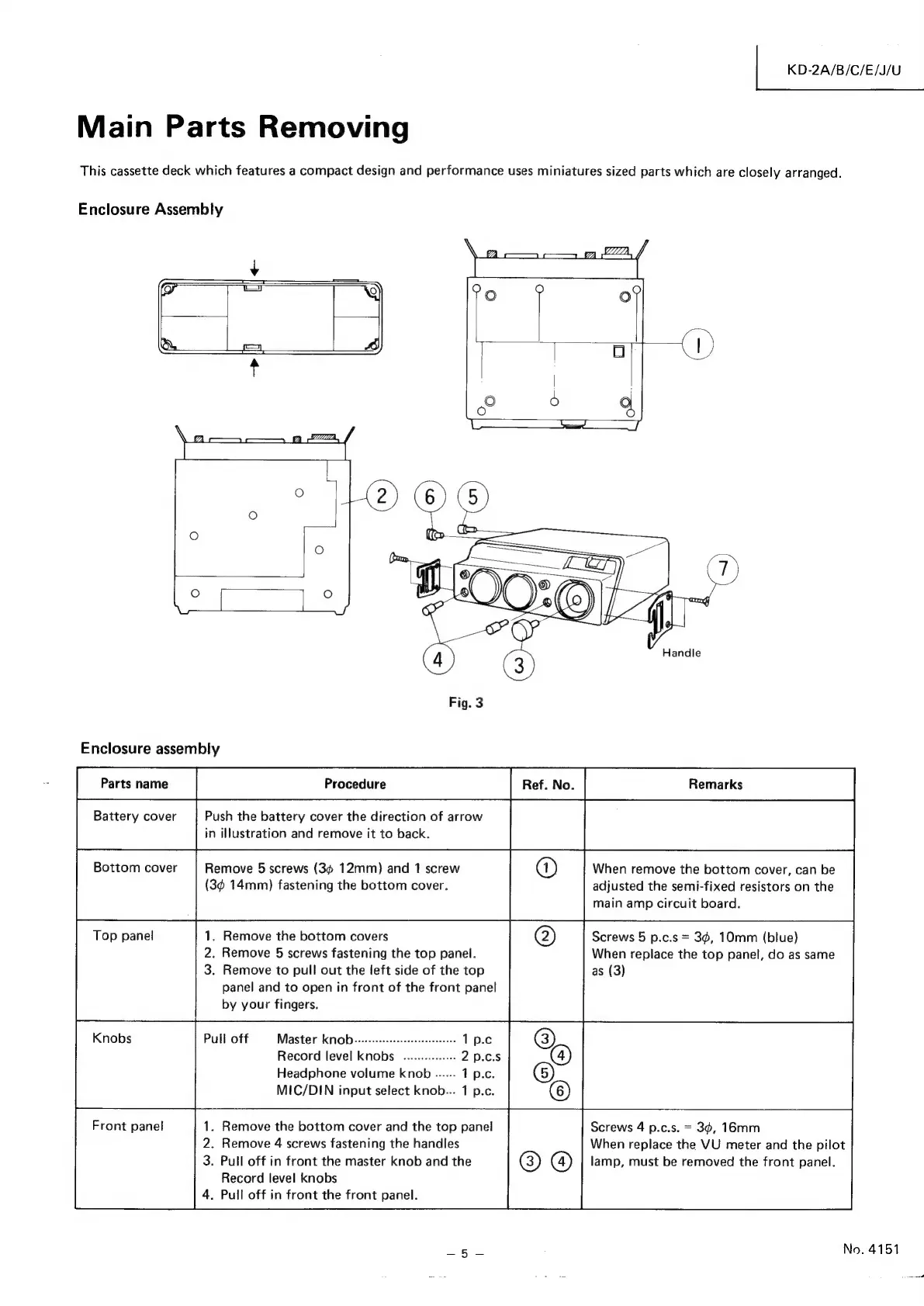

Main Parts Removing
This cassette deck which features a compact design and performance uses miniatures sized parts which are closely arranged.
Enclosure Assembly
Handle
Enclosure assembly
Battery cover Push the battery cover the direction of arrow
in illustration and remove it to back.
Bottom cover Remove 5 screws (3¢ 12mm) and 1 screw
(3¢ 14mm) fastening the bottom cover.
Top panel 1. Remove the bottom covers Q)
2. Remove 5 screws fastening the top panel.
3. Remove to pull out the left side of the top
panel and to open in front of the front panel
by your fingers.
Knobs Pull off Master knob
Record level knobs
Headphone volume knob
MIC/DIN input select knob...
When remove the bottom cover, can be
adjusted the semi-fixed resistors on the
main amp circuit board.
Screws 5 p.c.s = 3d, 10mm (blue)
When replace the top panel, do as same
as (3)
Screws 4 p.c.s. = 3¢, 16mm
When replace the VU meter and the pilot
lamp, must be removed the front panel.
1. Remove the bottom cover and the top panel
2. Remove 4 screws fastening the handles
3. Pull off in front the master knob and the
Record level knobs
4, Pull off in front the front panel.
No. 4151
