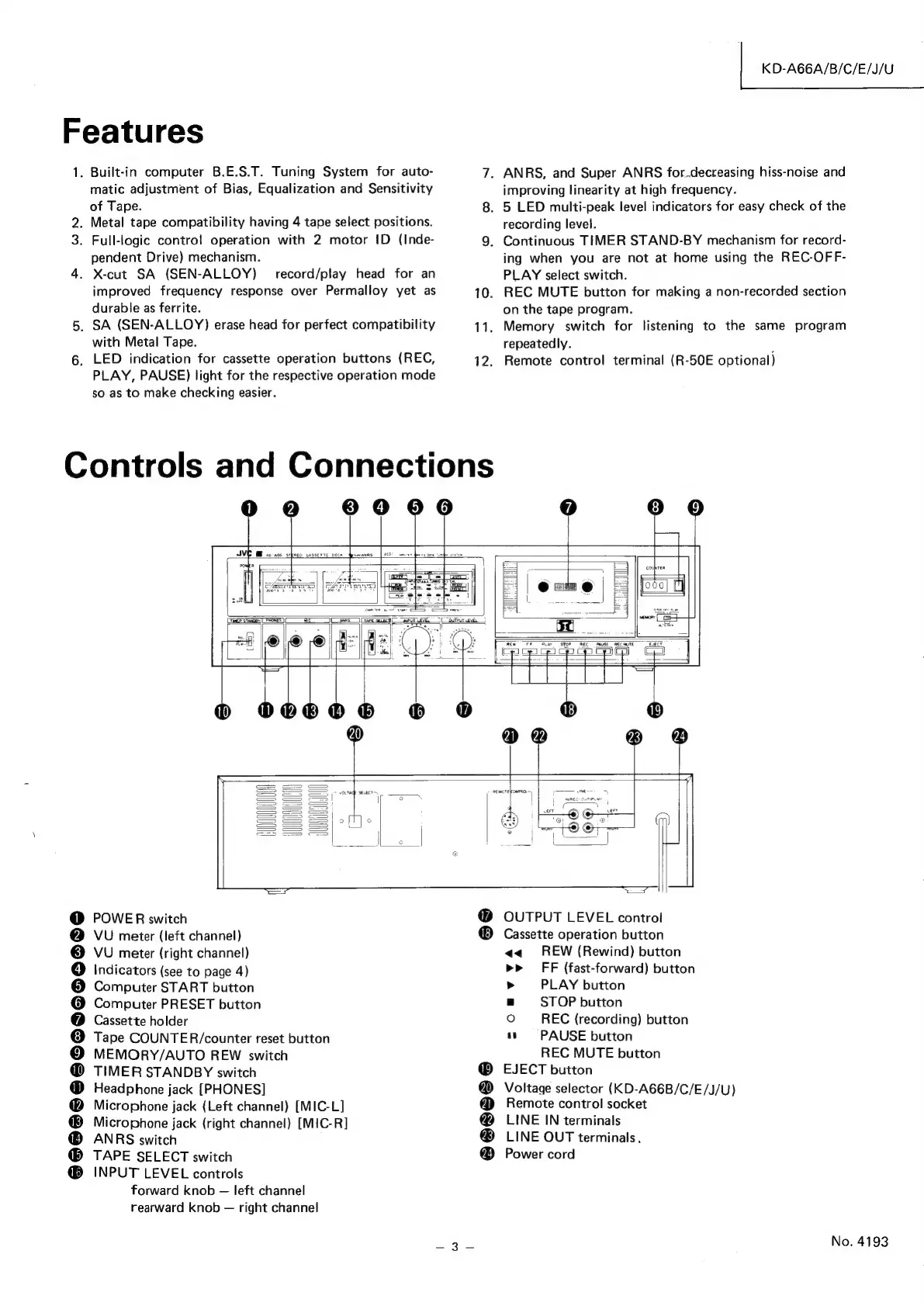

JVC KD-A66 Service Manual

Features
1.
Controls and Connections
» @
0
12)
®
. X-cut SA (SEN-ALLOY)
Built-in computer B.E.S.T. Tuning System for auto-
matic adjustment of Bias, Equalization and Sensitivity
of Tape.
. Metal tape compatibility having 4 tape select positions.
. Full-logic control operation with 2 motor ID (Inde-
pendent Drive) mechanism.
record/play head for an
improved frequency response over Permalloy yet as
durable as ferrite.
_ SA (SEN-ALLOY) erase head for perfect compatibility
with Metal Tape.
. LED indication for cassette operation buttons (REC,
PLAY, PAUSE) light for the respective operation mode
so as to make checking easier.
oe 989
10.
11.
12.
KD-A66A/B/C/E/J/U
ANRS, and Super ANRS for.decreasing hiss-noise and
improving linearity at high frequency.
. 5 LED multi-peak level indicators for easy check of the
recording level.
Continuous TIMER STAND-BY mechanism for record-
ing when you are not at home using the REC-OFF-
PLAY select switch.
REC MUTE button for making a non-recorded section
on the tape program.
Memory switch for listening to the same program
repeatedly. ;
Remote control terminal (R-50E optional)
(Cramer Stance || PHONES)
cca) ce hd
POWER switch
VU meter (left channel)
VU meter (right channel)
@ Indicators (see to page 4)
@8E268 6600000
Computer START button
Computer PRESET button
Cassette holder
Tape COUNTER/counter reset button
MEMORY/AUTO REW switch
TIMER STANDBY switch
Headphone jack [PHONES]
Microphone jack (Left channel) [MIC-L]
Microphone jack (right channel) [MIC-R]
ANRS switch
TAPE SELECT switch
INPUT LEVEL controls
forward knob — left channel
rearward knob — right channel
7]
®
8066 e
®
OUTPUT LEVEL control
Cassette operation button
<< > REW (Rewind) button
>> FF (fast-forward) button
> PLAY button
a STOP button
Oo REC (recording) button
«© =~ PAUSE button
REC MUTE button
EJECT button
Voltage selector (KD-A66B/C/E/J/U)
Remote control socket
LINE IN terminals
LINE OUT terminals.
Power cord
No. 4193
