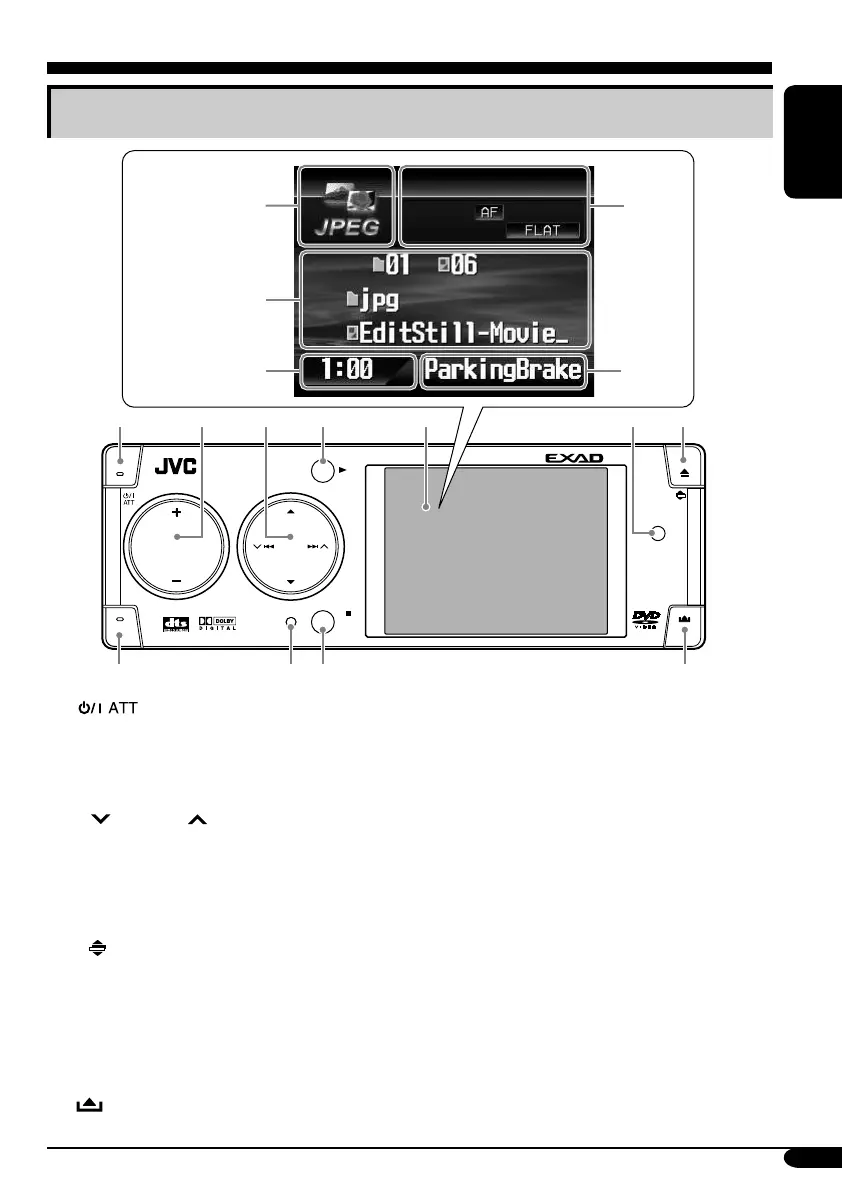

Control panel
1 (standby/on attenuator) button
2 • +/– (volume +/–) button
• SOURCE button
• MENU button
3 • 5 (up) / ∞ (down) buttons
• 4/¢ buttons
4 • OK button
• 3 (play) button
5 Monitor
6 D DISP (display) button
7 • 0 (eject) button
• (angle) button
8 T/P (traffic programme/programme type)
button
9 Reset button
p • BACK button
• BAND button
• 7 (stop) button
q (control panel release) button
Monitor indications
w Source indicator
e Main display
r Clock display
Also indicates volume level when adjusting
volume.
t Status indicators
y Alert information area
Also indicates volume level bar when
adjusting volume.
Parts identification
Monitor
indications
Ex.:
Source
screen
on JPEG
playback
