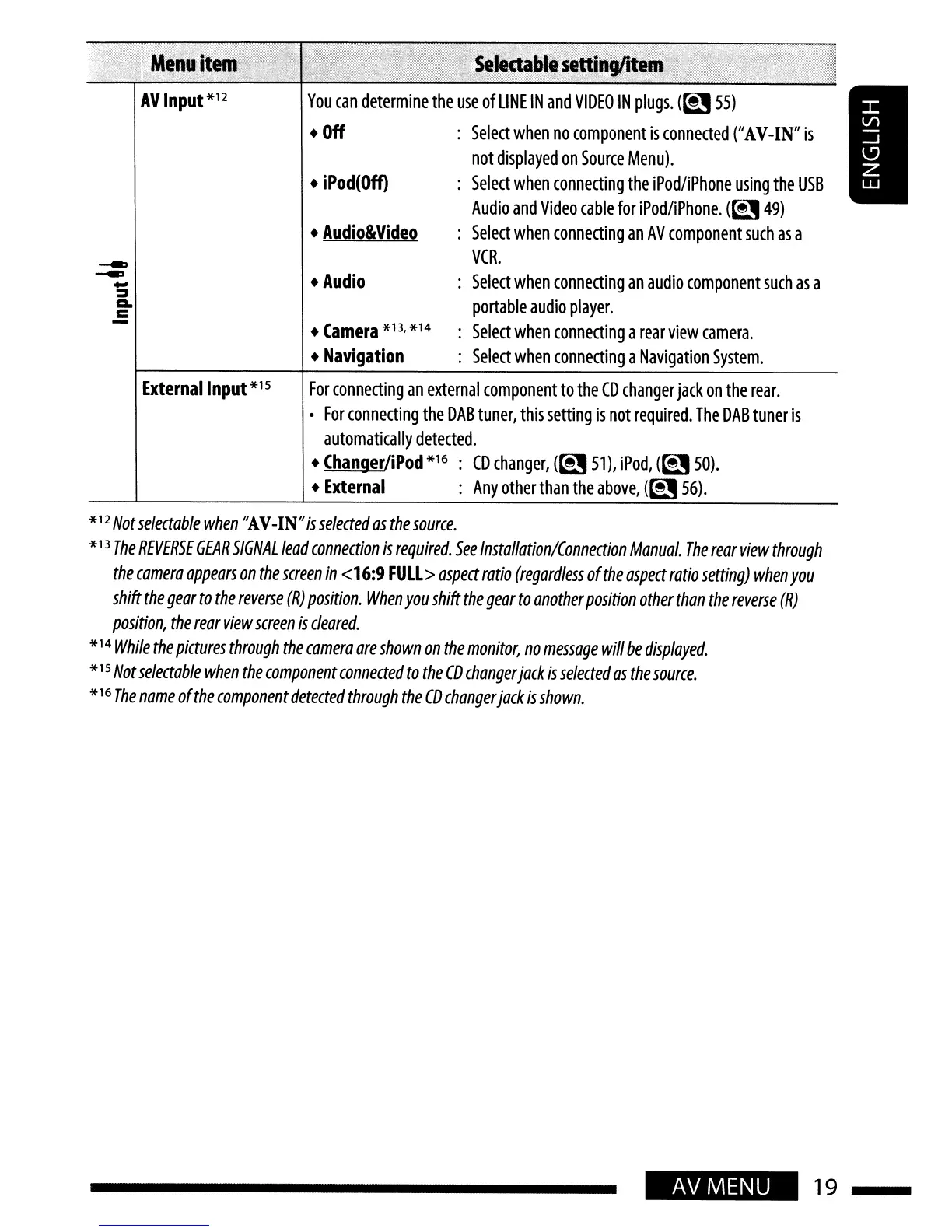

AVlnput*12
Externallnput*15
You can determine the use of LINE IN and VIDEO IN plugs. (C!3 55)
• Off Select when no component is connected ("AV-IN" is
not displayed on Source Menu).
• iPod(Off) Select when connecting the iPod/iPhone using the USB
Audio and Video cable for iPod/iPhone. (~ 49)
• Audio&Video Select when connecting an AV component such as a
VCR.
• Audio Select when connecting an audio component such as a
portable audio player.
• Camera *13, *14 Select when connecting a rear view camera.
• Navigation Select when connecting a Navigation System.
For connecting an external component to the CD changer jack on the rear.
• For connecting the DAB tuner, this setting is not required. The DAB tuner is
automatically detected.
• Changer/iPod *16 : CD changer, (~51), iPod, (~50).
• External : Any other than the above, (~ 56).
* 12 Not selectable when "A V-IN" is selected as the source.
*13 The REVERSE GEAR SIGNAL lead connection is required. See Installation/Connection Manual. The rear view through
the camera appears on the screen in <16:9 FULL> aspect ratio (regardless of the aspect ratio setting) when you
shift the gear to the reverse (R) position. When you shift the gear to another position other than the reverse (R)
position, the rear view screen is cleared.
*14 While the pictures through the camera are shown on the monitor, no message will be displayed.
*
1
5
Not selectable when the component connected to the CD changer jack is selected as the source.
* 16 The name of the component detected through the CD changer jack is shown.
AV MENU
19
