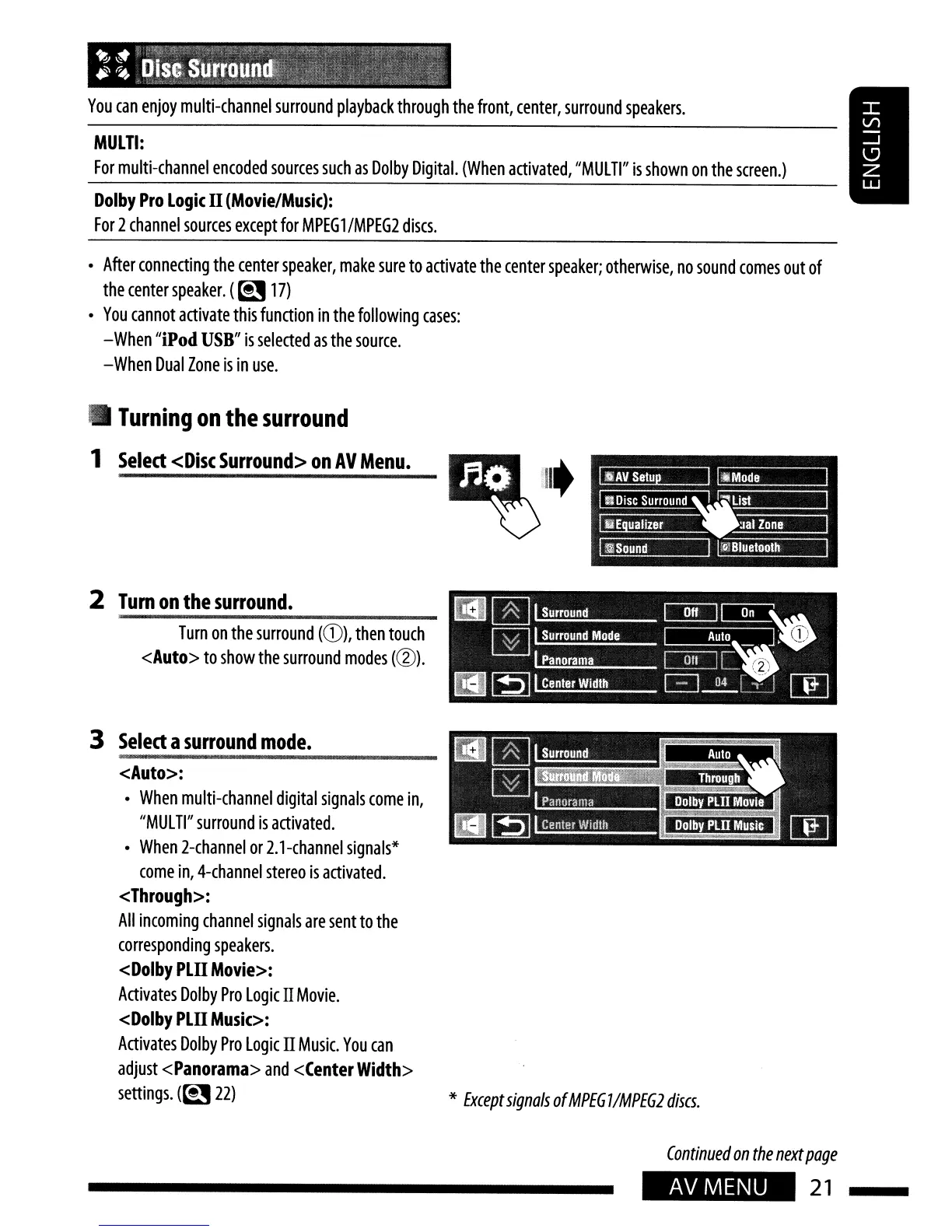

You can enjoy multi-channel surround playback through the front, center, surround speakers.
MULTI:
For multi-channel encoded sources such as Dolby Digital. (When activated, "MULTI" is shown on the screen.)
Dolby Pro Logic II (Movie/Music):
For 2 channel sources except for MPEG1/MPEG2 discs.
• After connecting the center speaker, make sure to activate the center speaker; otherwise, no sound comes out of
the center speaker. (t!..l17)
•
You cannot activate this function in the following cases:
-When "iPod USB" is selected as the source.
-When Dual Zone is in use.
*Mode
KllSound
li.AV Setu
• Turning on the surround
1 Select <Disc Surround> on AV Menu.
2 Tum on the surround.
Turn on the surround (CD), then touch
<Auto> to show the surround modes (@).
3 Select a surround mode.
<Auto>:
• When multi-channel digital signals come in,
"MULTI" surround is activated .
•
When 2-channel or 2.1-channel signals*
come in, 4-channel stereo is activated.
<Through>:
All incoming channel signals are sent to the
corresponding speakers.
<Dolby PLII Movie>:
Activates Dolby Pro Logic II Movie.
<Dolby PLII Music>:
Activates Dolby Pro Logic II Music. You can
adjust <Panorama> and <Center Width>
settings. (t!..l22) * Except signals of MPEG 1IMPEG2 discs.
AV MENU
Continued on the next page
21

JVC KD-AVX77 Specifications

General

MP3 playback	Yes
Audio formats supported	AAC, MP3, WAV, WMA
Tuner type	HS-IV
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Preset stations quantity	24
Product color	Black
Signal-to-Noise Ratio (SNR)	95 dB
Display type	TFT
Display diagonal	5.4 \
RMS rated power	20 W

Weight and Dimensions

Weight	2200 g
Dimensions (WxDxH)	182 x 160 x 52 mm
