JVC KD-DB98BT User Manual

ENGLISH
29
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
(A) Faceplate

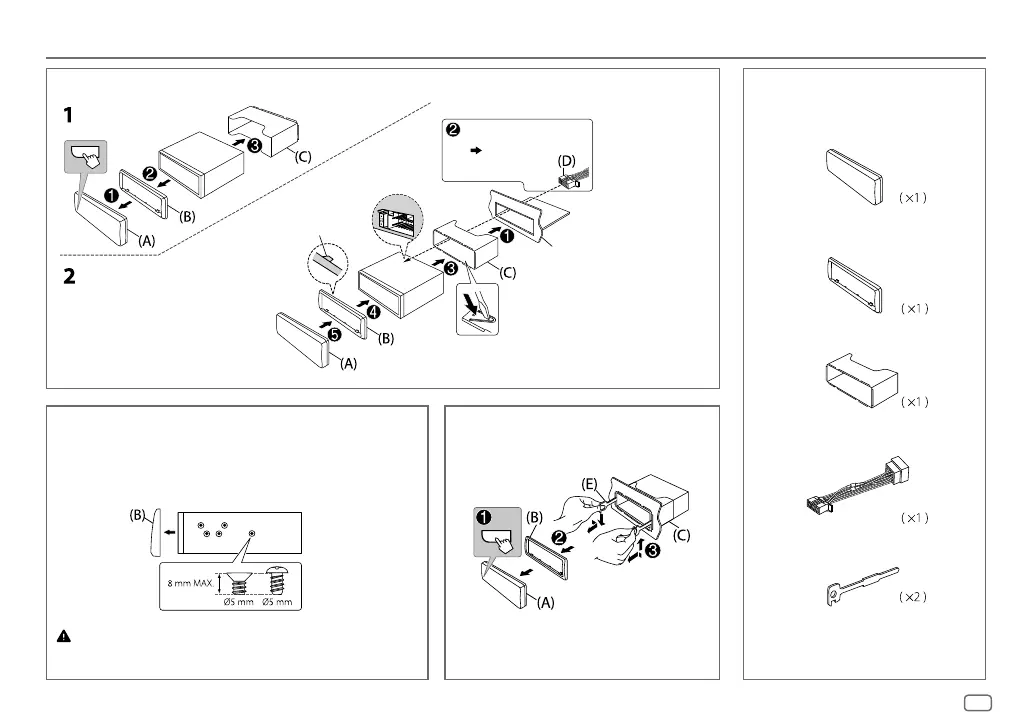

INSTALLATION/CONNECTION
How to remove the unitWhen installing without the mounting sleeve
1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the
vehicle mounting bracket and secure the unit with screws
(commercially available).
Use only the specified screws. Using wrong screws might damage
the unit.
Installing the unit (in-dash mounting)
Do the required wiring.
( 30)
Bend the appropriate tabs to
hold the sleeve firmly in place.
Hook on the top side
Orientate the trim plate
as illustrated before
fitting.
Dashboard of
your car
Part list for installation
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
JS_JVC_KD_DB98BT_E_EN_3.indd 29JS_JVC_KD_DB98BT_E_EN_3.indd 29 11/28/2016 12:15:52 PM11/28/2016 12:15:52 PM

JVC KD-DB98BT Specifications

General

Audio system	MOSFET
USB direct playback	Yes
Audio formats supported	FLAC, MP3, WAV, WMA
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, HFP, PBAP
DIN size	1 DIN
Product color	Black
Disc types supported	CD
Equalizer bands quantity	13
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	DAB+, FM, LW, MW
Preset stations quantity	24
Display type	LCD
Display number of lines	2 lines
Key illumination color	Multi

Weight and Dimensions

Weight	1500 g
Dimensions (WxDxH)	182 x 159 x 53 mm
