4

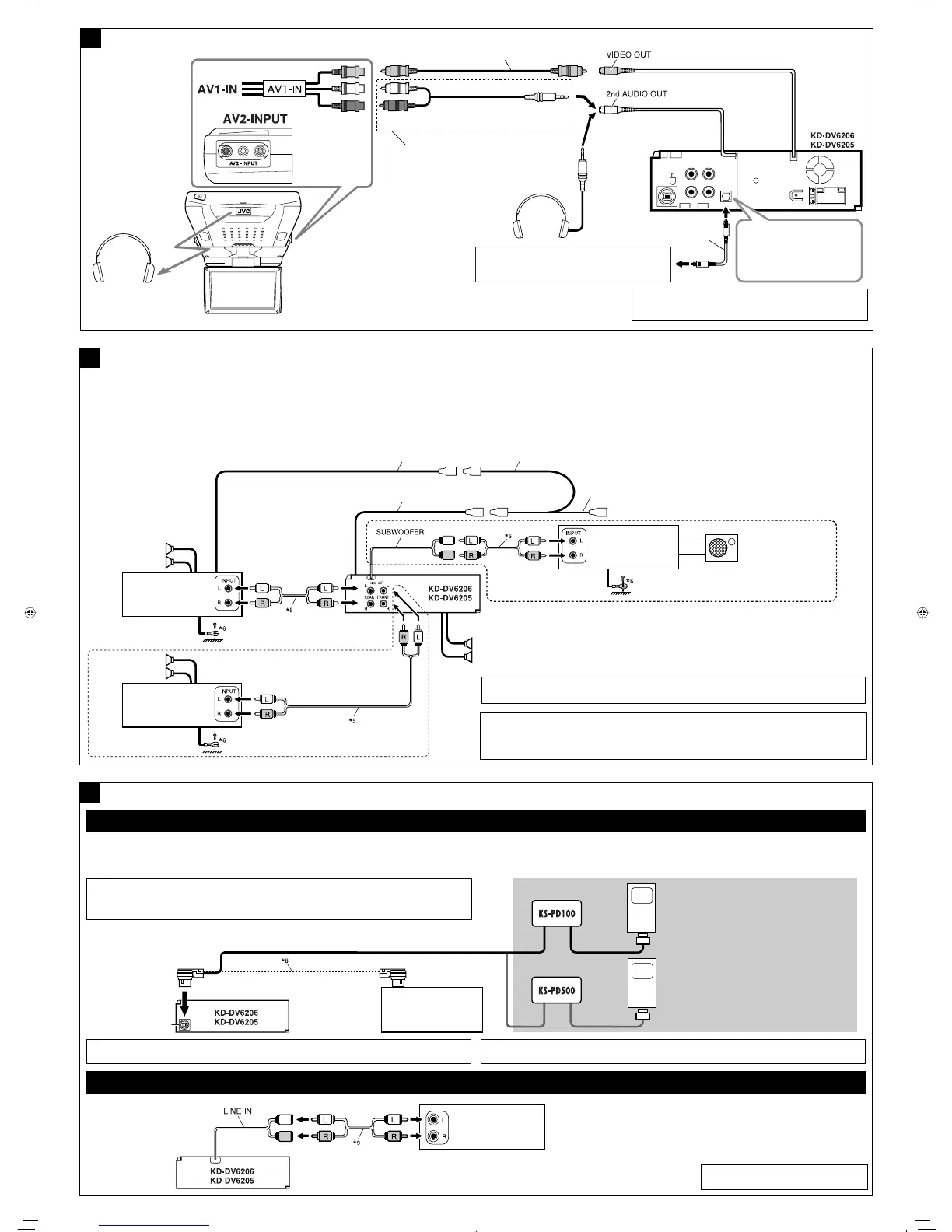

Required connections for DVD playback
D
Audio/video control amplifier or the decoder
compatible with the multichannel digital sources
When using JVC’s KV-MR9010 and KS-HP2,
connect using a conversioncable of this type
(not supplied).
Headphones (not supplied)
*
4
KS-HP2
Cordless headphones
(not supplied)*
4
KV-MR9010
9-INCH WIDESCREEN MONITOR
(not supplied)
Video cord (not supplied)
Stereo mini plug
RCA Pin plugs
Digital optical cable (not supplied)
DIGITAL OUT
See “About sounds reproduced
through the rear terminals.”
*
4
To listen to disc playback sound while in Dual Zone
operations (see page 32 of INSTRUCTIONS).
E
Connecting the external amplifiers and/or subwoofer
You can connect amplifiers to upgrade your car stereo system.
• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.
• For amplifier only:
– Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker leads of this unit unused.
– The line output level of this unit is kept high to maintain the hi-fi sounds reproduced from this unit.
When connecting an external amplifier to this unit, turn down the gain control on the external amplifier to obtain the best performance from this unit.
To the remote lead of other equipment or auto antenna if any
Y-connector (not supplied for this unit)Remote lead
*
5
Signal cord (not supplied for this unit)
Front speakers
Rear speakers
JVC Amplifier
JVC Amplifier
Subwoofer
Front speakers
Remote lead (Blue with white stripe)
*
6
Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place
uncoated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do
so may cause damage to the unit.
F
Connecting the external components
Other external component
Rear side
or
JVC Amplifier
CD changer, Apple iPod
®
, or JVC D. player
You can connect these components as illustrated below. The iPod
*
7
or D. player can be connected using an interface adapter (not supplied)—KS-PD100 (for iPod) or KS-PD500 (for D. player).
• Set “CHANGER” for the external input setting (See page 36 of the INSTRUCTIONS.)
Apple iPod
(separately purchased)
JVC D. player
(separately purchased)
JVC CD changer
or
CAUTION :
• Before connecting the external components, make sure that the unit is turned off.
*
8
Connecting cord supplied for your CD changer
*
7
iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
CD changer jack
External component
*
9
Signal cord (not supplied for this unit)
