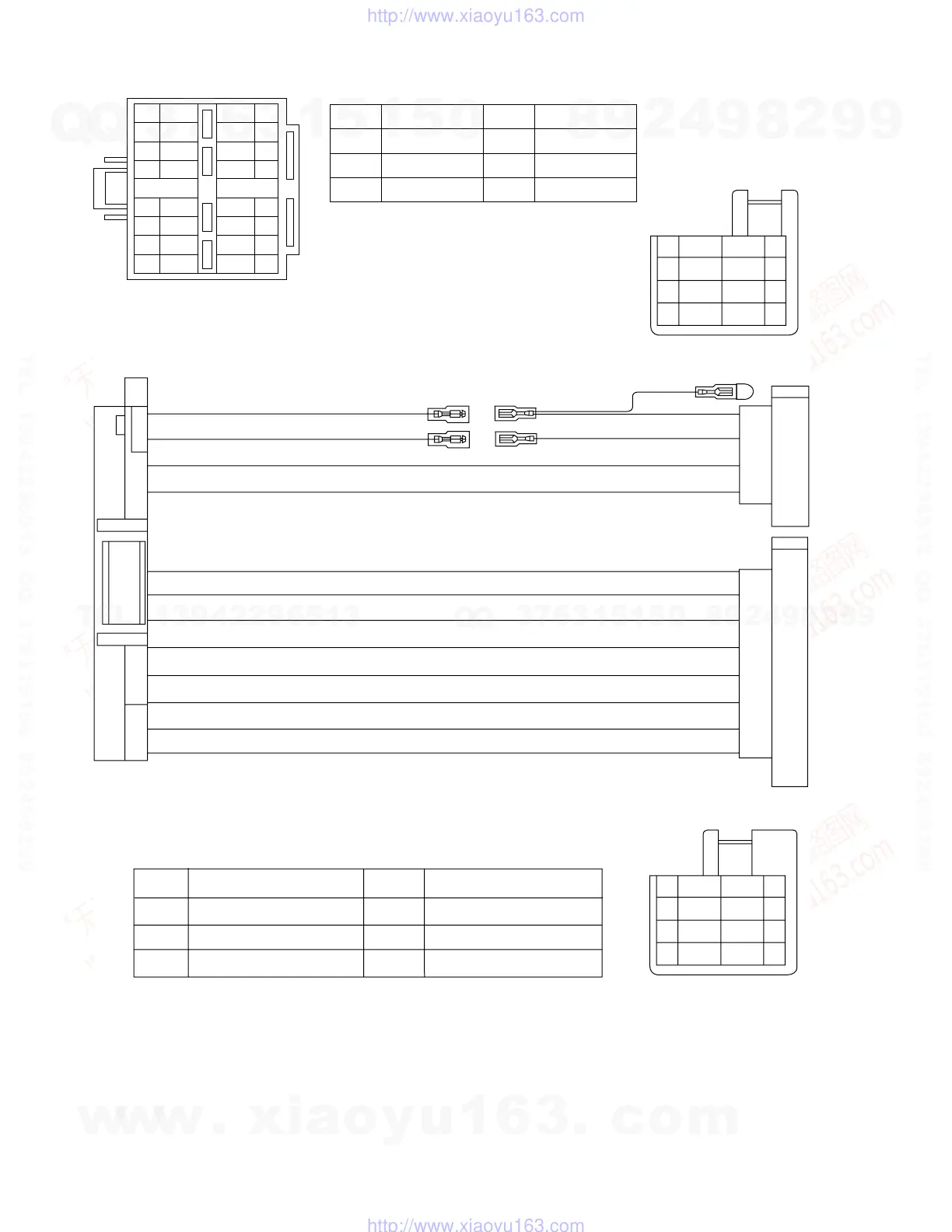

5.9 16 PIN CORD DIAGRAM (for G227)
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
BK
RD
NC
WH
GN
VI
GY
YL
NC
NC
NC
1
3
5
7
2
4
6
8
NC
NC
BL/WH
RD
NC
YL
NC
BK
1
3
5
7
2
4
6
8
VI
GY
WH
GN
VI/BK
GY/BK
WH/BK
GN/BK
BK
Black
RD
Red
BL
Blue
WH White
GN
Green
VI
Violet
GY
Gray
YL
Yellow
7 RD
16 YL
8 BK
5 BL/WH
3 GN
11 GN/BK
2 VI
10 VI/BK
4 WH
12 WH/BK
1 GY
9 GY/BK
RD
RD 7
YL 4
8
5
7
8
1
2
5
3
6
4
RR
Rear Right
FR
FL
RL
Rear Left
Front Right
Front Left
REMOTE
Remote out
ACC
MEMORY
ACC Line
GND
Memory Backup Battery+
Ground
ACC
MEMORY
GND
REMOTE
RL+
RL-
RR+
RR-
FL+
FL-
FR+
FR-
BL/WH
WH/BK
GN/BK
VI/BK
GY/BK
