SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the Bottom cover
(See Fig.1)
(1) Disengage the five hooks a engaged bottom cover.

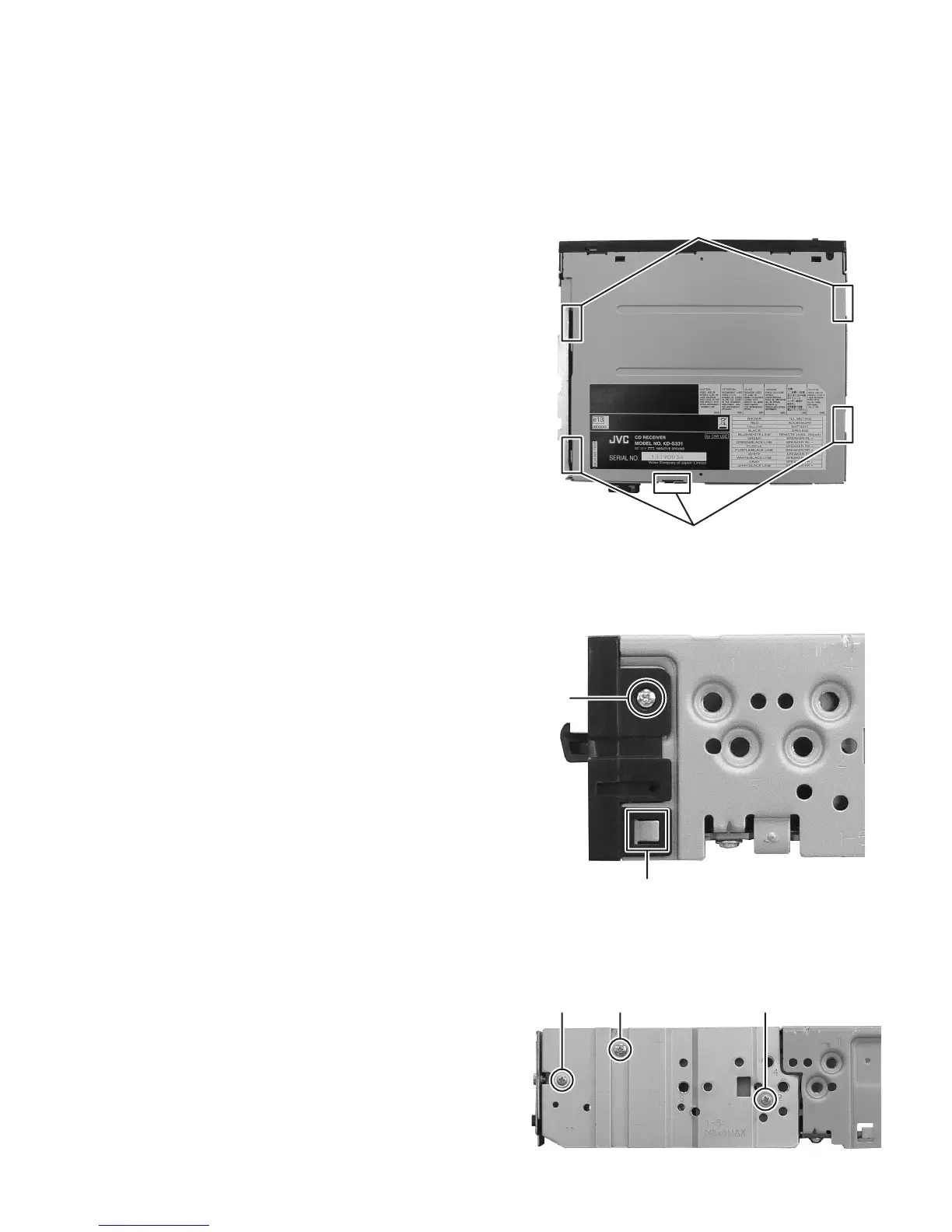

Fig.1
3.1.2 Removing the Front chassis
(See Fig.2)
(1) Remove the two screws A (both side of Front chassis) at-
taching the Front chassis.
(2) Disengage the two hooks b (both side of Front chassis) en-
gaged Front chassis.
Fig.2
3.1.3 Removing the Heat sink
(See Fig.3)
(1) Remove the two screws B and one screw C attaching the
Heat sink.
Fig.3
Hook a
Hook a
A
Hook b
BBC
