1-18 (No.MA051)
3.2.12 Reassembling the mode sw. / select lock arm
(See Figs.24 to 26)
REFERENCE:
Reverse the above removing procedure.
(1) Reattach the select lock arm spring to the top plate and set
the shorter end of the select lock arm spring to the hook w
on the top plate.
(2) Set the other longer end of the select lock arm spring to the
boss x on the underside of the select lock arm, and join the
select lock arm to the slots (joint v). Turn the select lock
arm as shown in the figure.
(3) Reattach the mode sw. while setting the part t to the first
peak of the link plate gear, and join the joint u.
CAUTION:
When reattaching the mode sw., check if the points y and
z are correctly fitted and if each part operates properly.

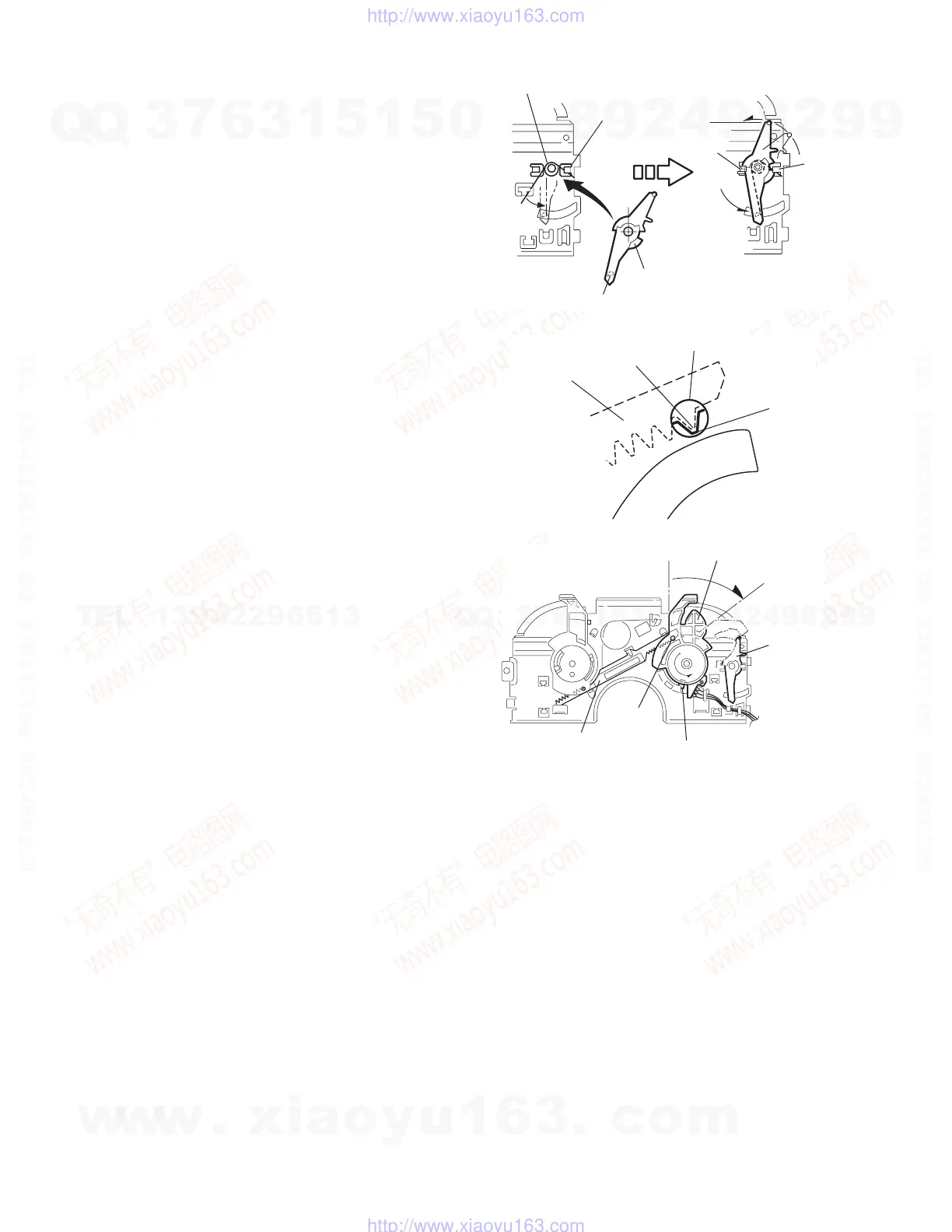

Fig.24
Fig.25
Fig.26
Select lock arm
Hook w
Boss x
Select lock arm spring
Joint v
Joint v
Link plate
Joint t
Point z
Point y
Select
lock arm
Mode sw.
Joint t
Joint u
Link plate
