JVC KD-G401 Service Manual

(No.MA051)1-25

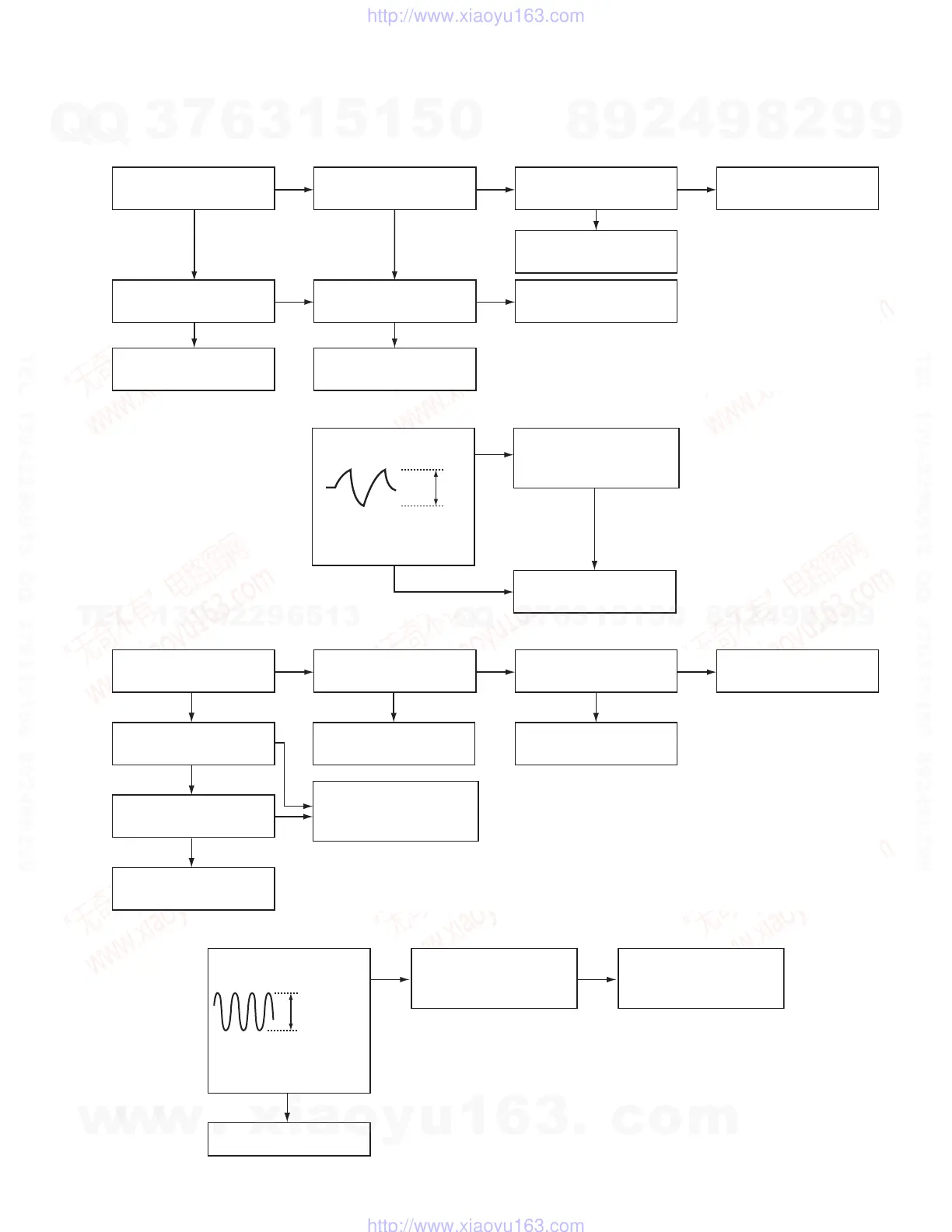

SECTION 5
TROUBLESHOOTING
5.1 Feed section
5.2 Focus section
5.3 Spindle section
5.4 Tracking section
Check the feed motor.
Is 4V present at both
sides of the feed motor?
Is the wiring for IC541
pin 40 correct?
NO
YES
YES
Is 5v or 0V at IC541
pin 40?
NO
Is 6V or 2V present at
IC501 pins 4 and 5?
NO
Check IC501.
YES
YES
Is 5V present at IC501
pin 20?
Check the feed motor
connection wiring.
YES
Check the vicinity of
IC541.
NO
Check 8V.
NO
When the lens is
moving:
Check the circuits in
the vicinity of IC501
pins 15 and 16.
Does the S-search
waveform appear at
IC501 pins 8 and 9?
4V
YES
NO
YES
Check the pickup and
its connections.
Is the disk rotated?
YES
NO
Is 4V present between
IC501 pins 6 and 7?
NO
Is 4V present at IC541
pin 41?
NO
Check IC541.
Does the RF signal
appear at RF test point?
YES
YES
Check the spindle motor
and its wiring.
Is the RF waveform
at RF test point distorted?
YES
Proceed to the Tracking
section
Check the circuits in
the vicinity of IC521
or the pickup.
NO
NO
YES
Check the vicinity of
IC501.
When the disc is rotated
at first:
Approx. 1.2V
Is the tracking error
signal output at IC521
pin 11?
YES
Check IC541.
Check the circuits in
the vicinity of IC521
pins 2 to 12.
NO
Check the pickup and
its connections.
NO
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

JVC KD-G401 Specifications

Audio Amplifier

maximum power output (front)	50 W per channel
maximum power output (rear)	50 W per channel
continuous power output (RMS) (front)	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
continuous power output (RMS) (rear)	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
load impedance	4 Ω (4 Ω to 8 Ω allowance)
tone control range (bass)	±10 dB at 100 Hz
tone control range (treble)	±10 dB at 10 kHz
frequency response	40 Hz to 20 000 Hz
signal-to-noise ratio	70 dB
line-out level/impedance	2.0 V/20 kΩ load (full scale)
output impedance	1 kΩ

CD Player

operating voltage	DC 14.4 V (11 V to 16 V allowance)
allowable operating temperature	0°C to +40°C
dimensions (W × H × D)	182 mm × 52 mm × 150 mm
panel size	188 mm × 58 mm × 11 mm
mass	1.3 kg (excluding accessories)
frequency response	5 Hz to 20 000 Hz
dynamic range	96 dB
signal-to-noise ratio	98 dB
max. bit rate	320 Kbps

Tuner

frequency range (FM)	87.5 MHz to 108.0 MHz
frequency range (AM MW)	522 kHz to 1 620 kHz
frequency range (AM LW)	144 kHz to 279 kHz
usable sensitivity	11.3 dBf (1.0 µV/75 Ω)
50 dB quieting sensitivity	16.3 dBf (1.8 µV/75 Ω)
alternate channel selectivity (400 kHz)	65 dB
frequency response	40 Hz to 15 000 Hz
stereo separation	30 dB
capture ratio	1.5 dB
sensitivity (MW)	20 µV
selectivity (MW)	35 dB
sensitivity (LW)	50 µV
