JVC KD-G401 Service Manual

1-22 (No.MA051)

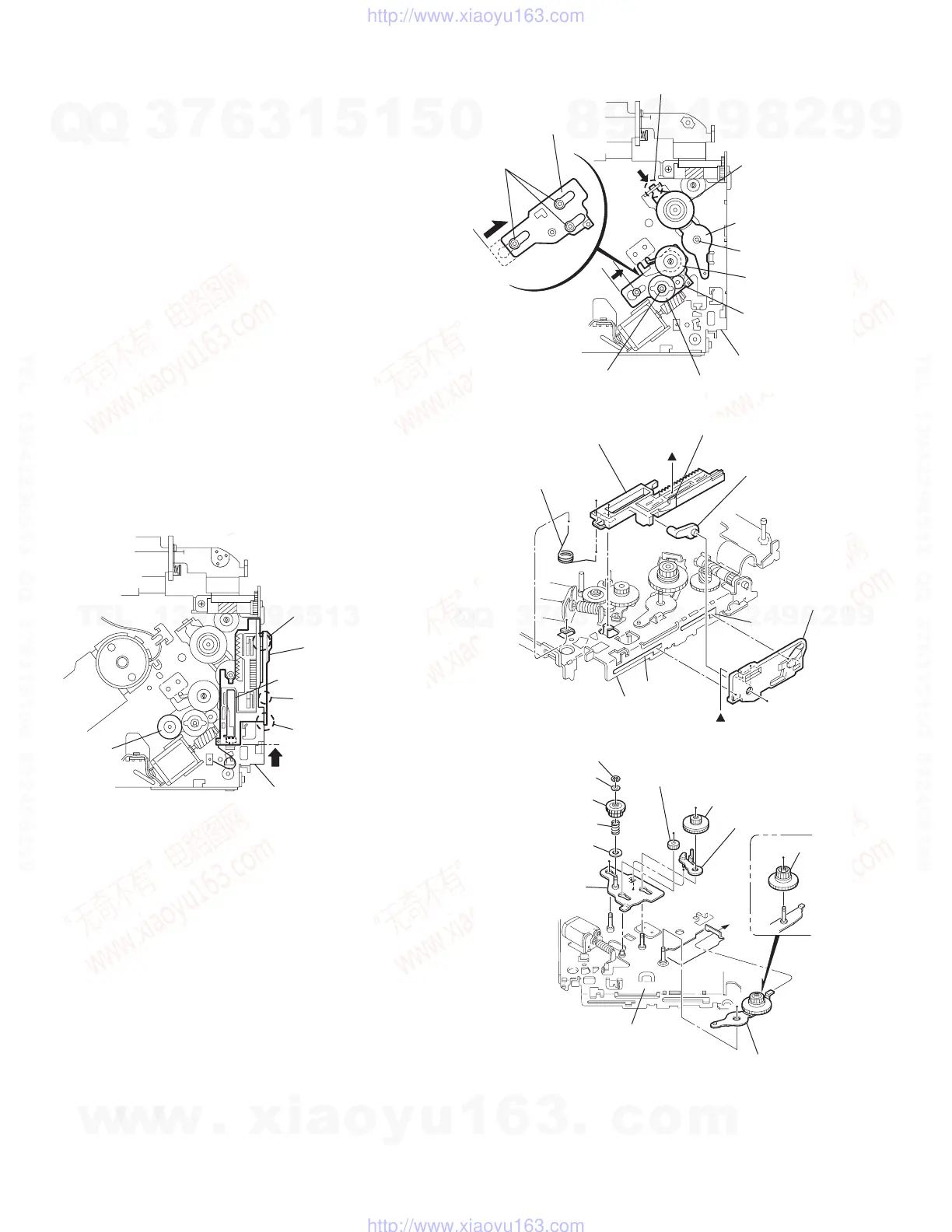

3.2.17 Removing the gears
(See Figs.37 to 40)
• Prior to performing the following procedure, remove the top
cover, chassis unit, top plate assembly and pickup unit.
• Pull out the loading gear 3. (See Fig.35.)
(1) Pull out the feed gear.
(2) Move the loading plate assembly in the direction of the ar-
row to release the L side plate from the two slots m' of the
chassis rivet assembly. (See Fig.37.)
(3) Detach the loading plate assembly upward from the chas-
sis rivet assembly while releasing the joint n'. Remove the
slide hook and loading plate spring from the loading plate
assembly.
(4) Pull out the loading gear 2 and remove the change lock le-
ver.
(5) Remove the E ring and washer attaching the changer gear
2.
(6) The changer gear 2, change gear spring and adjusting
washer come off.
(7) Remove the loading gear 1.
(8) Move the change plate rivet assembly in the direction of the
arrow to release from the three shafts of the chassis rivet
assembly upward. (See Fig.38.)
(9) Detach the loading gear plate rivet assembly from the shaft
of the chassis rivet assembly upward while releasing the
joint p'. (See Figs.38 and 40.)
(10) Pull out the loading gear 4.
Fig.37
Fig.38
Fig.39
Fig.40
Slot m'
Slot m'
Joint n'
Feed gear
Loading plate assembly
L side plate
Chassis rivet assembly
Joint p'
Loading gear 4
Loading gear 2
Loading gear 1
Change gear 2
Loading gear plate
rivet assembly
E ring
Shafts
Change plate
rivet assembly
Shaft
Chassis rivet assembly
Loading plate assembly
Loading plate spring
Chassis rivet assembly
Slot m'
Slot m'
Joint n'
L side plate
Slide hook
Loading gear 2
Loading gear 4
Change gear 2
Loading gear 1
E ring
Washer
Change gear spring
Loading gear plate rivet assembly
Chassis rivet assembly
Adjusting washer
Change plate
rivet assembly
Change lock lever
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

JVC KD-G401 Specifications

Audio Amplifier

maximum power output (front)	50 W per channel
maximum power output (rear)	50 W per channel
continuous power output (RMS) (front)	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
continuous power output (RMS) (rear)	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
load impedance	4 Ω (4 Ω to 8 Ω allowance)
tone control range (bass)	±10 dB at 100 Hz
tone control range (treble)	±10 dB at 10 kHz
frequency response	40 Hz to 20 000 Hz
signal-to-noise ratio	70 dB
line-out level/impedance	2.0 V/20 kΩ load (full scale)
output impedance	1 kΩ

CD Player

operating voltage	DC 14.4 V (11 V to 16 V allowance)
allowable operating temperature	0°C to +40°C
dimensions (W × H × D)	182 mm × 52 mm × 150 mm
panel size	188 mm × 58 mm × 11 mm
mass	1.3 kg (excluding accessories)
frequency response	5 Hz to 20 000 Hz
dynamic range	96 dB
signal-to-noise ratio	98 dB
max. bit rate	320 Kbps

Tuner

frequency range (FM)	87.5 MHz to 108.0 MHz
frequency range (AM MW)	522 kHz to 1 620 kHz
frequency range (AM LW)	144 kHz to 279 kHz
usable sensitivity	11.3 dBf (1.0 µV/75 Ω)
50 dB quieting sensitivity	16.3 dBf (1.8 µV/75 Ω)
alternate channel selectivity (400 kHz)	65 dB
frequency response	40 Hz to 15 000 Hz
stereo separation	30 dB
capture ratio	1.5 dB
sensitivity (MW)	20 µV
selectivity (MW)	35 dB
sensitivity (LW)	50 µV
