(No.MA232)1-7
SECTION 3
DISASSEMBLY
3.1 Main body section

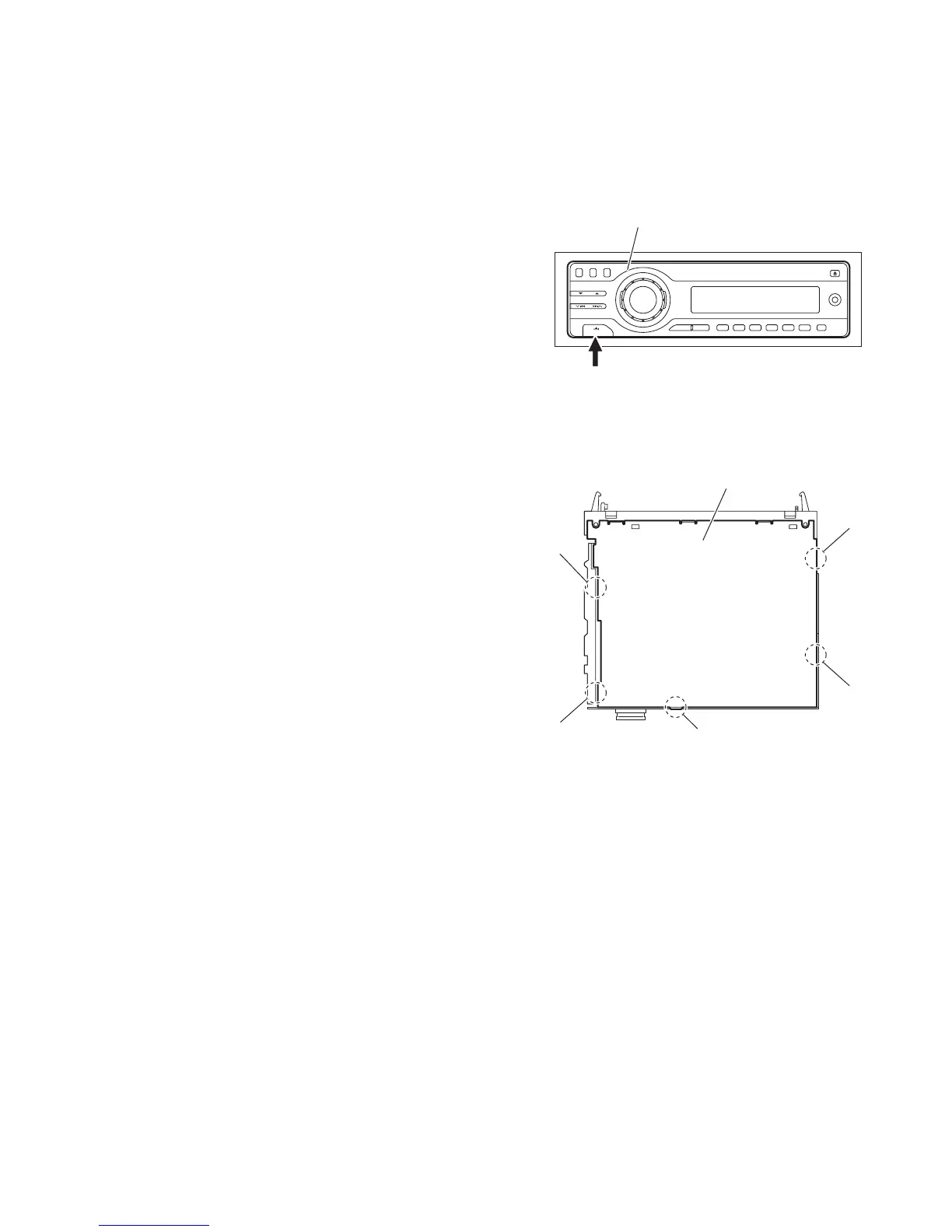

3.1.1 Removing the front panel assembly
(See Fig.1)
(1) Push the control panel release button in the lower left part
of the front panel assembly and remove the front panel as-
sembly.
(2) Take out the front panel assembly.
Fig.1
3.1.2 Removing the bottom cover
(See Fig.2)
(1) Turn the main body up side down.
(2) Insert a screwdriver under the joints to release the joints a
on the left side, joints b on the right side and joint c on the
back side of the main body, then remove the bottom cover
from the main body.
Caution:
When releasing the joints using a screwdriver, do not damage
the main board.
Fig.2
Front panel assembly
Control panel release button
Bottom cover
a
b
a
b
c
