1-8 (No.MA147)

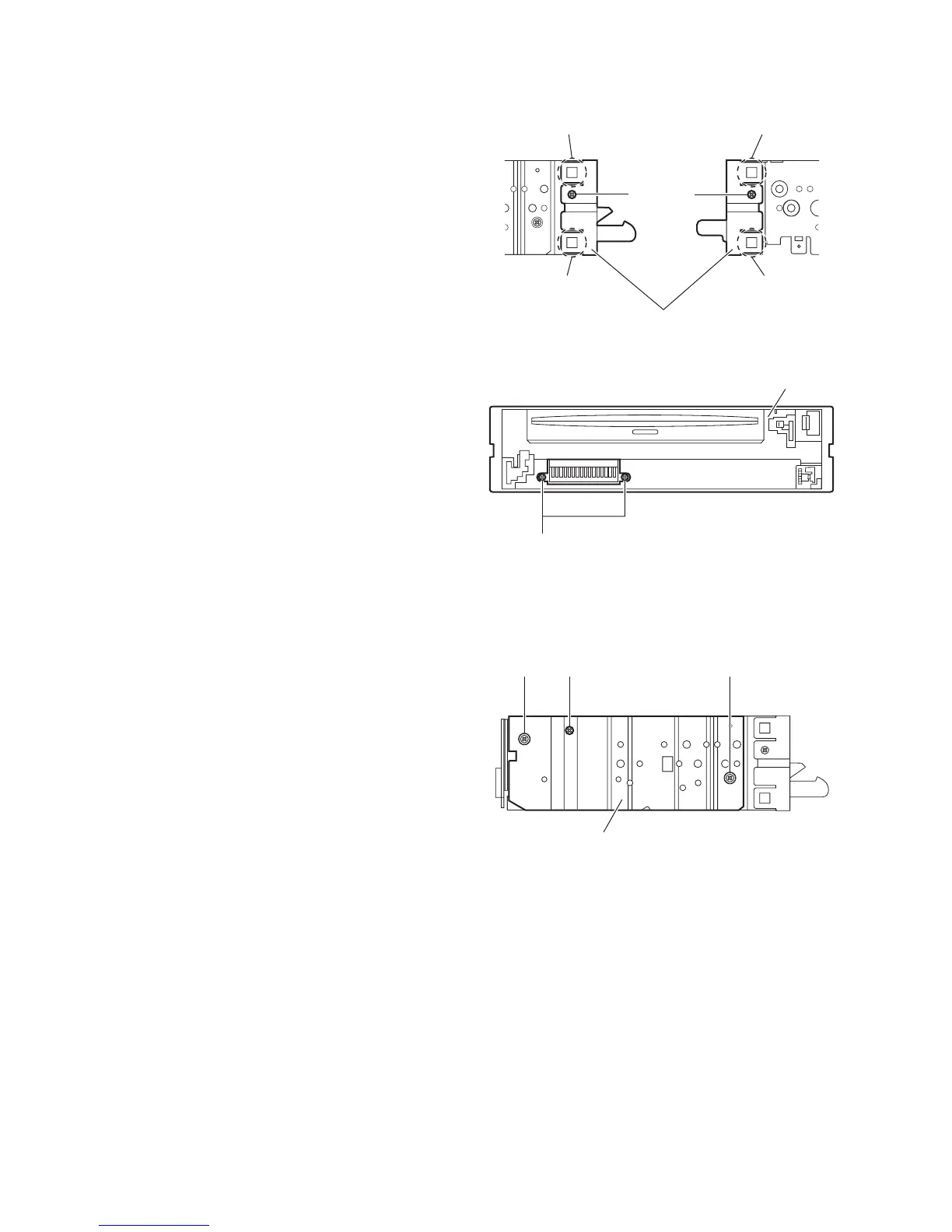

3.1.3 Removing the front chassis assembly
(See Figs.3 and 4)
• Prior to performing the following procedures, remove the front
panel assembly and bottom cover.
(1) Remove the two screws A on the both sides of the main
body. (See Fig.3)
(2) Remove the two screws B on the front side of the main
body. (See Fig.4)
(3) Release the two joints d and two joints e on the both sides
of the main body, then remove the front chassis assembly
forward. (See Fig.3)
Fig.3
Fig.4
3.1.4 Removing the side panel
(See Fig.5)
Reference:
Remove the front panel assembly as required. (Refer to "3.1.1
Removing front panel assembly")
(1) Remove the two screws C and screw D attaching the side
panel on the left side of the main body.
(2) Take out the side panel from the main body.
Fig.5
Joint d
Joint d
Front chassis assembly
A
Joint e
Joint e
A
B
Front chassis assembly
Side panel
CCD
To Next Page
