JVC KD-R430J User Manual

(No.MA503<Rev.003>)11/16

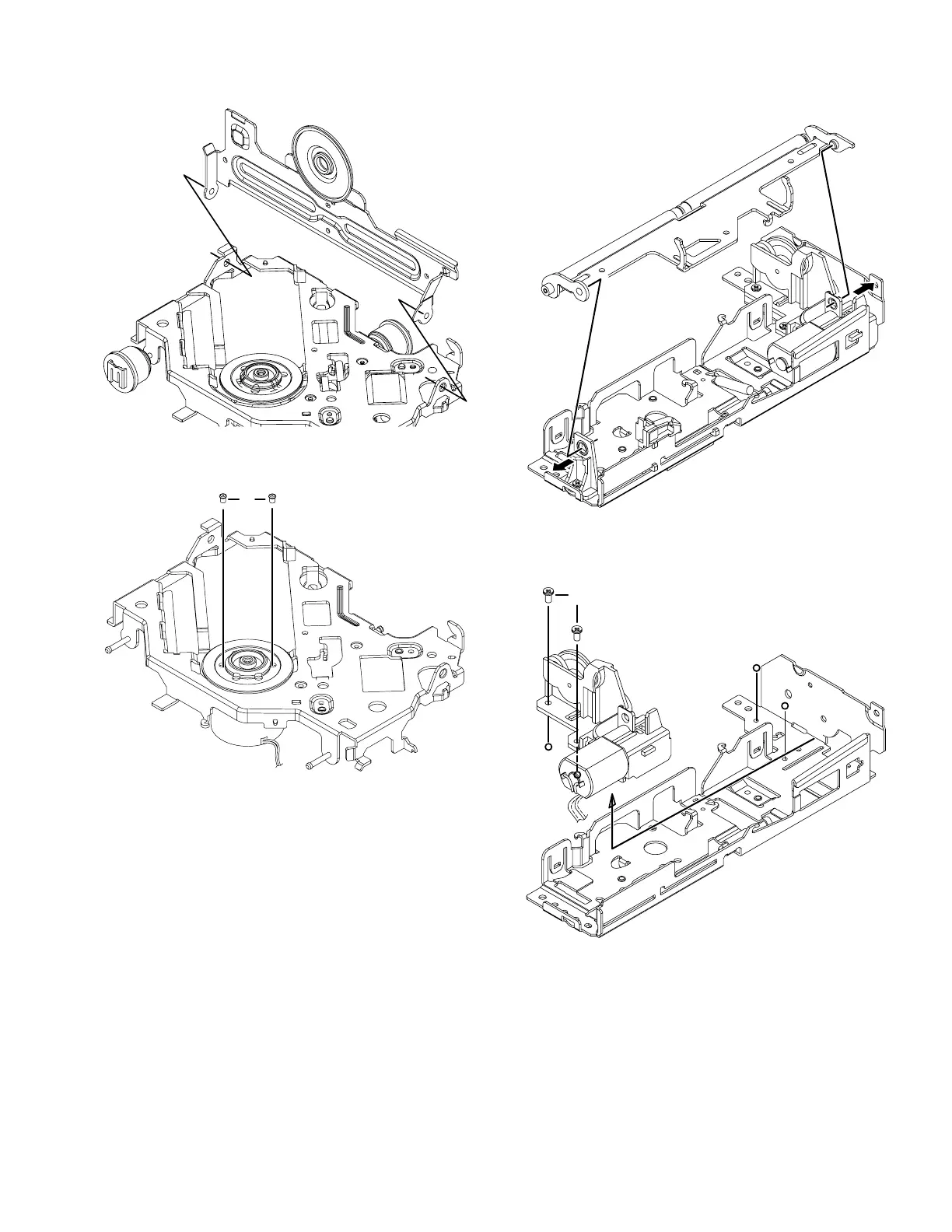

(2) Remove the HC CL. base from the holes on the TM base.
(See Fig.9)
Fig.9
(3) Remove the 2 screws D attaching the spindle motor. (See
Fig.10)
Fig.10
3.2.5 Removing the Loading motor
(1) Remove the roller arm assembly from the bottom frame as-
sembly. (See Fig.11)
Fig.11
(2) Remove the 2 screws E attaching the loading motor as-
sembly, and then remove the loading motor assembly in
the direction of the arrow. (See Fig.12)
Fig.12
D
E
