(No.MA503<Rev.003>)10/16

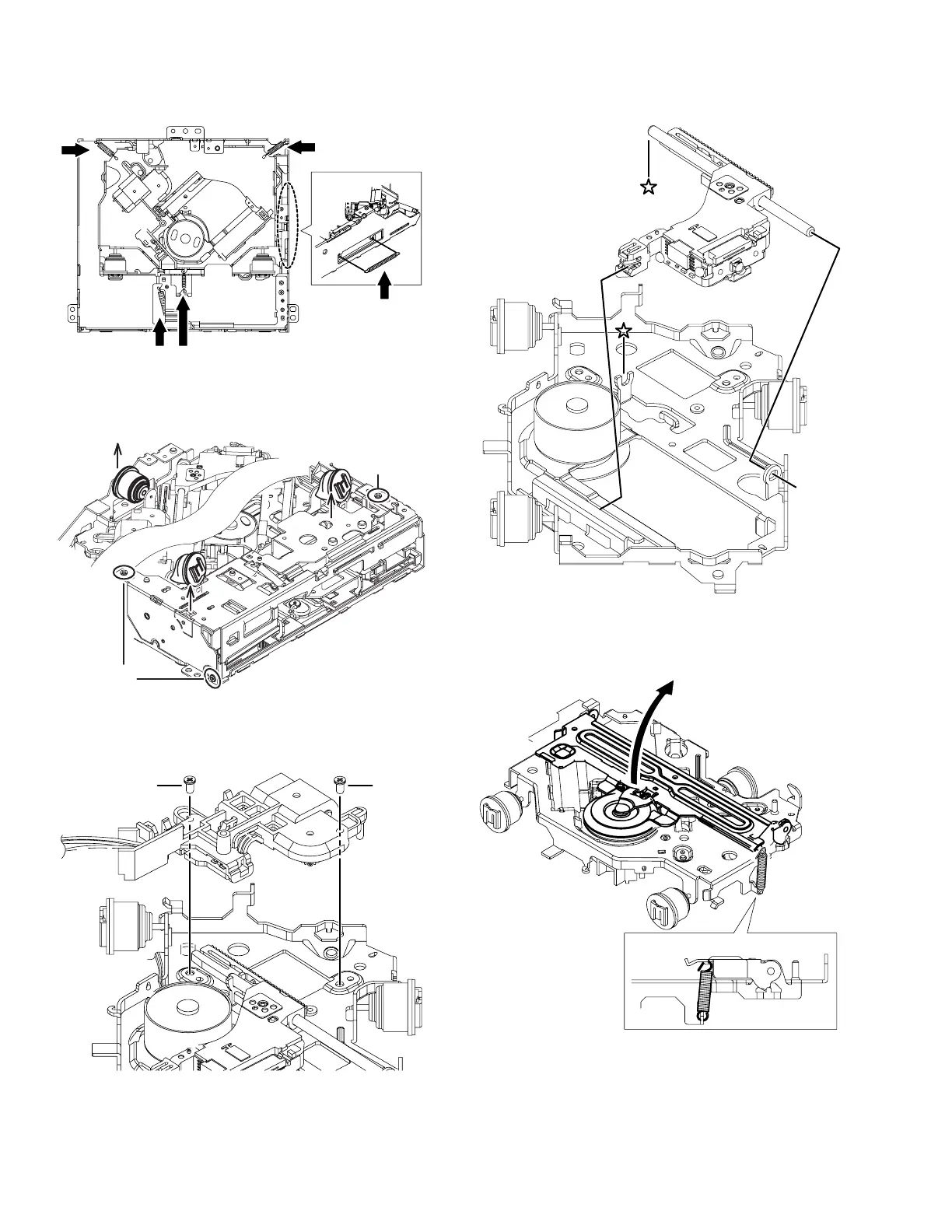

3.2.2 Removing the Traverse mechanism (See Fig.4, 5)
(1) Remove the 5 springs from the traverse mechanism. (See
Fig.4)
Fig.4
(2) Remove the 3 screws B attaching the bottom frame as-
sembly. (See Fig.5)
(3) Remove the 3 dumpers from the bottom frame assembly.
(See Fig.5)
Fig.5
3.2.3 Removing the Pickup (See Fig.6, 7)
(1) Remove the 2 screws C attaching the feed bracket assem-
bly. (See Fig.6)
Fig.6
(2) Remove the shaft from the TM base. (See Fig.7)
(3) Disengage the hook a on the pickup from the TM base.
(See Fig.7)
Fig.7
3.2.4 Removing the Spindle motor (See Fig.8. 9)
(1) Remove the HC CL. Spring from the HC CL. base and the
TM base, and then lift up the HC CL. base. (See Fig.8)
Fig.8
B
B
CC
shaft
[ SIDE VIEW ]
HC CL. spring
