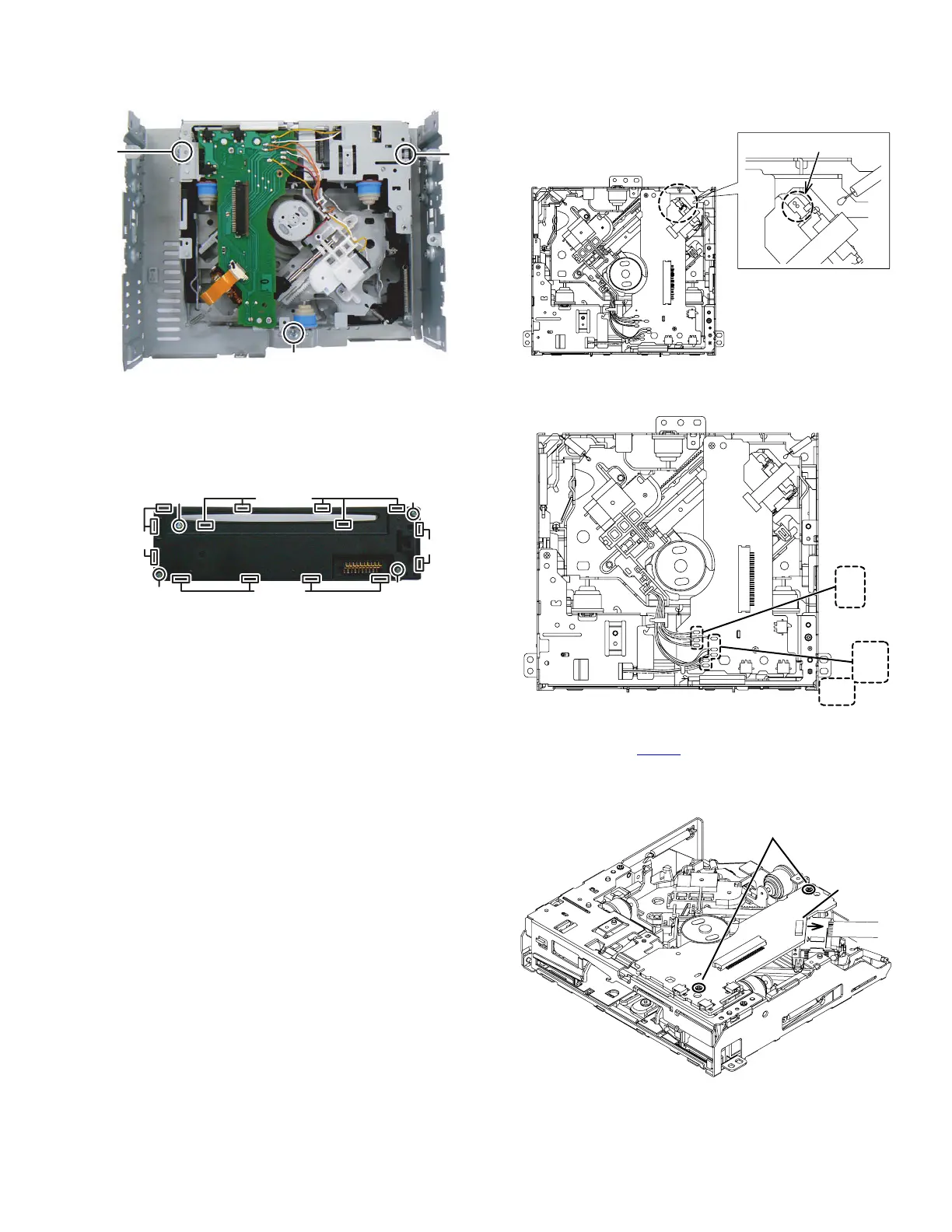

3.1.4 Removing the CD mechanism (See Fig.6)
(1) Remove the 3 screws D attaching the CD mechanism.
Fig.6
3.1.5 Removing the Switch unit (See Fig.7)
(1) Remove the Volume knob.
(2) Remove the 4 screws E attaching the Rear cover.
(3) Disengage the 14 hooks c engaging the Rear cover.
Fig.7
3.2 CD mechanism assembly section
3.2.1 Removing the Mecha control board
(1) Solder the short land on the pickup. (See Fig. 1)
Fig.1
(2) Remove the 8 wires from the Mecha control board. (See
Fig.2)
Fig.2
(3) Disconnect the flexible wire from the pickup connected to
the connector CN102
on the Mecha control board. (See
Fig.3)
(4) Remove the 2 screws A attaching the Mecha control board.
(See Fig.3)
Fig.3
D
D
D
E
E
E
E
hook c
hook c
hook c
hook c
SOLDER
BLACK
RED
WHITE
ORANGE
ORANGE
WHITE
YELLOW
YELLOW
CN102
A
