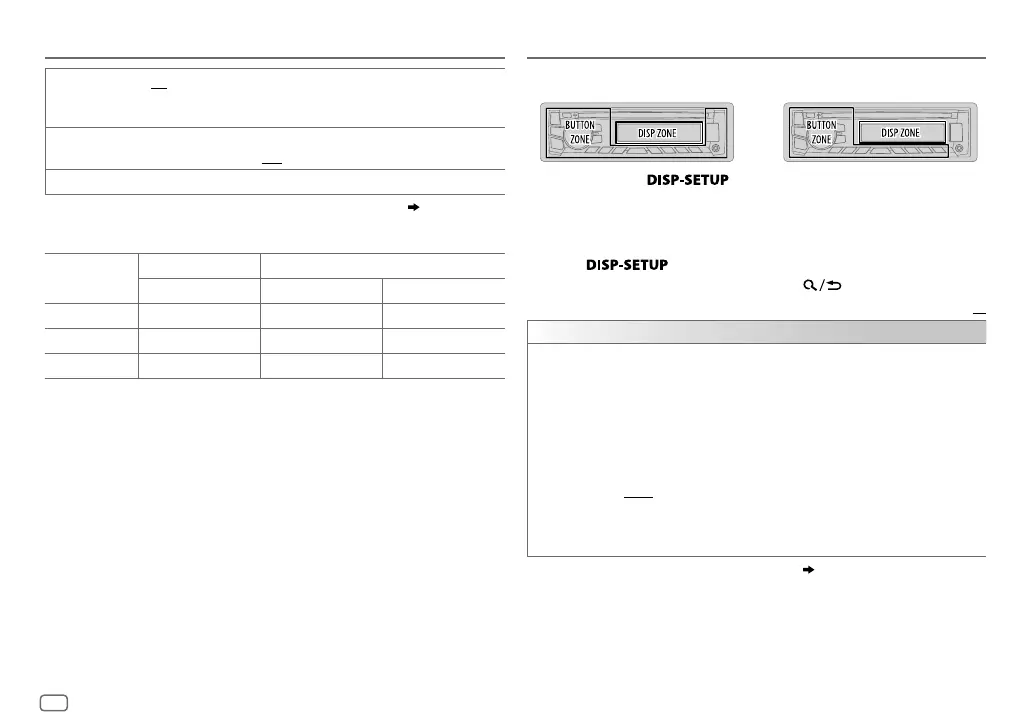

JVC KD-R463 - AUDIO SETTINGS (Source Specific); D.T.EXP (Digital Track Expander); TEL MUTING; SPK;PRE OUT

10
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
D.T.EXP
(Digital Track
Expander)
ON :Creates realistic sound by compensating the high-frequency
components and restoring the rise-time of the waveform that are lost in
audio data compression.;
OFF :Cancels.
TEL  MUTING
*
5
ON :Mutes the sounds while using the cellular phone (not connected
through KS-BTA100).;
OFF :Cancels.
SPK/PRE  OUT Selects the appropriate setting to get the desired output.
*
5
Does not work if [ BT  ADAPTER ] is selected for [ AUX ] in [ SRC  SELECT ]. (  4 )
SPK/PRE OUT
Setting
Lineout terminal Rear speaker lead
REAR/SW L (left) R (right)
REAR/REAR Rear speakers output Rear speakers output Rear speakers output
REAR/SUB.W Subwoofer output Rear speakers output Rear speakers output
SUB.W/SUB.W Subwoofer output Subwoofer output (Mute)
If [ SUB.W/SUB.W ] is selected:
– [
HIGH120HZ ] is selected in [ SUB.W  LPF ] and [ THROUGH ] is not available.
– [
R01 ] is selected in [ FADER ] and selectable range is [ R06 ]to [ 00 ]
AUDIO SETTINGS
KD-R463KD-R561
1 Press and hold .
2 Turn the volume knob to make a selection (see the following table),
then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow
the instructions stated on the selected item.
4 Press to exit.
To return to the previous setting item, press .
Default: XX
DISPLAY
DIMMER
Selects the display and button illumination adjusted in the [ BRIGHTNESS ]
setting.
OFF :Selects the day adjustments.; ON :Selects the night adjustments.;
DIMMER TIME :Adjusts the dimmer on and off time.
Turn the volume knob to adjust the [
ON ] time, then press the knob.
Turn the volume knob to adjust the [
OFF ] time, then press the knob.
(Default: [
ON ]: 18:00 or 6:00 PM
[
OFF ]: 6:00 or 6:00 AM)
AUTO :Changes between the day and night adjustments when you turn off
or on the car headlights. *
1
For KD-R561 , the display and button colors change according to the
settings made on [
COLOR ].
*
1
The illumination control wire connection is required. ( 15)
DISPLAY SETTINGS
