1-8 (No.MA035)

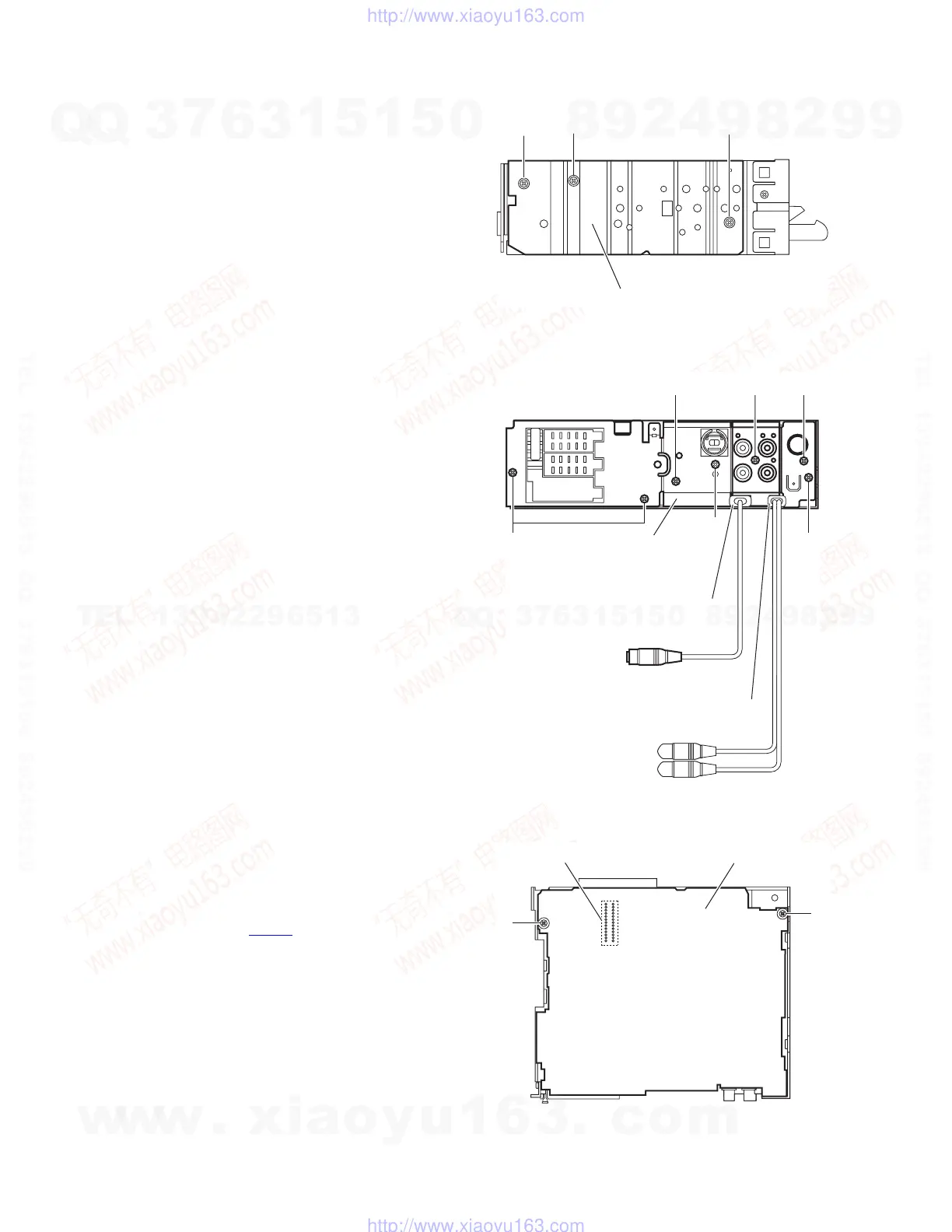

3.1.4 Removing the side panel
(See Fig.5)
• Prior to performing the following procedure, remove the front
panel assembly as required.
(1) Remove the screw C and two screws D attaching the side
panel on the left side of the main body, and remove the side
panel.
Fig.5
3.1.5 Removing the rear bracket
(See Fig.6)
• Prior to performing the following procedure, remove the bottom
cover.
(1) Remove the three screws E, screw F and three screws G
attaching the rear bracket on the back side of the main
body.
Reference:
During reassembly, before fixing the rear bracket onto the
main body, inserts the steering remote cable and sub-cable
into the slot.(KD-SC601 E/EX)
Fig.6
3.1.6 Removing the main board
(See Fig.7)
• Prior to performing the following procedure, remove the front
panel assembly, bottom cover, front chassis assembly and
side panel.
• Remove the rear bracket as required.
(1) Remove the two screws H attaching the main board.
(2) Disconnect the connector CN501
and remove the main
board.
Fig.7
Side panel
D
C
D
GG
E
Rear bracket
Insert the steering
remote cable
into the slot.
F
E
Insert the sub-cable
into the slot.
G
Main board
H
H
CN501
