KD-SC900R
1-4 (No.49829)
SECTION 2
Disassembly method
2.1 Main body

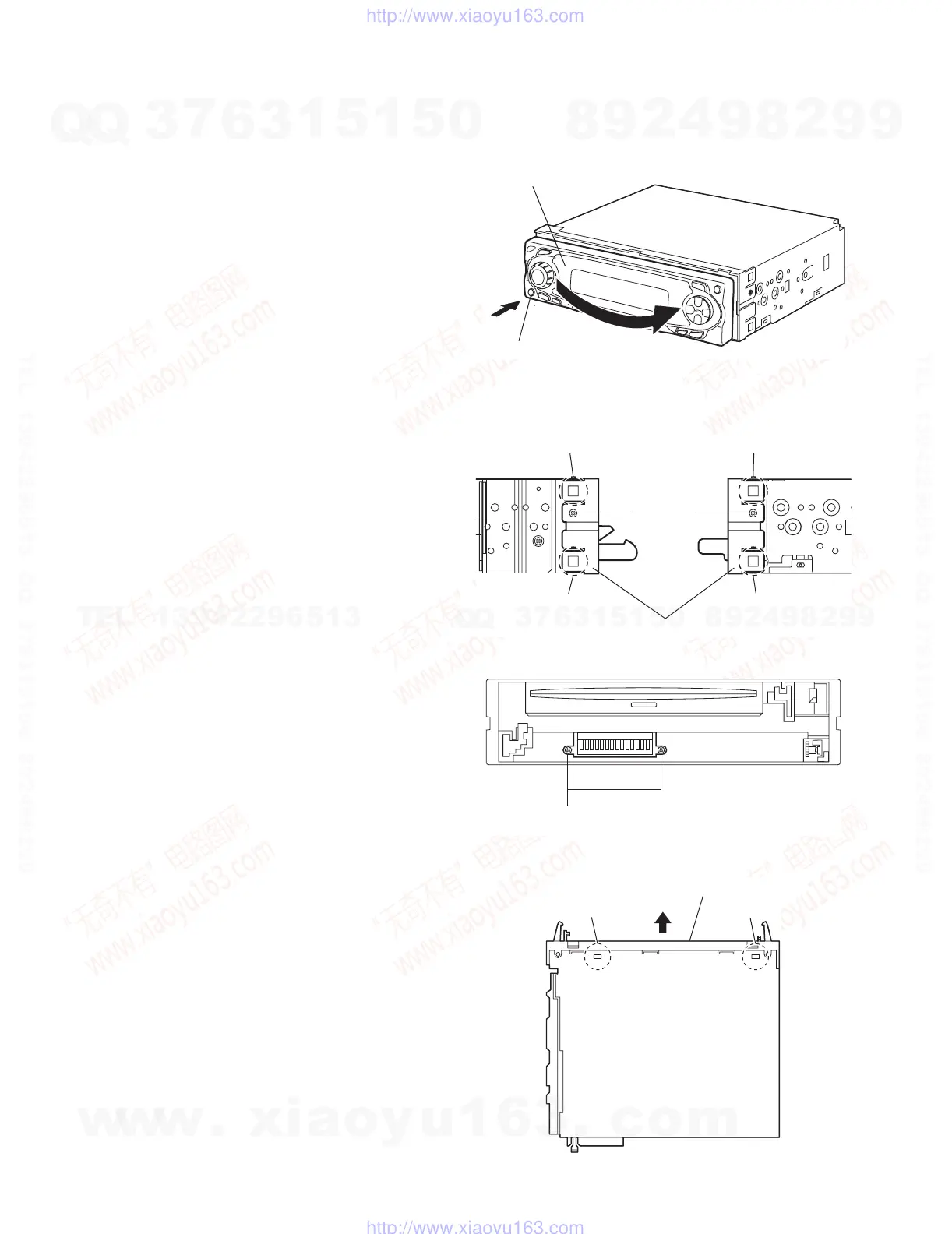

2.1.1 Removing the front panel assembly
(See Fig.1)
(1) Push the detach button in the lower left part of the front
panel assembly and remove the front panel assembly in
the direction of the arrow.
Fig.1
2.1.2 Removing the front chassis assembly
(See Figs.2 to 4)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the screw A on the both sides of the main body.
(2) Remove the two screws B on the front side of the main
body.
(3) Release the two joints a and two joints b on both sides of
the main body using a screwdriver, and remove the front
chassis assembly forward.
(4) Release the two joints c on the bottom side of the main
body and remove the front chassis assembly in the direc-
tion of the arrow.(see Fig.3)
Fig.2
Fig.3
Fig.4
Front panel assembly
Detach button
Joint a
Joint a
Front chassis assembly
A
Joint b
Joint b
A
B
Front chassis assembl
Joint c
Joint c
