KD-SX998R,KD-SX997R
(No.49819)1-5

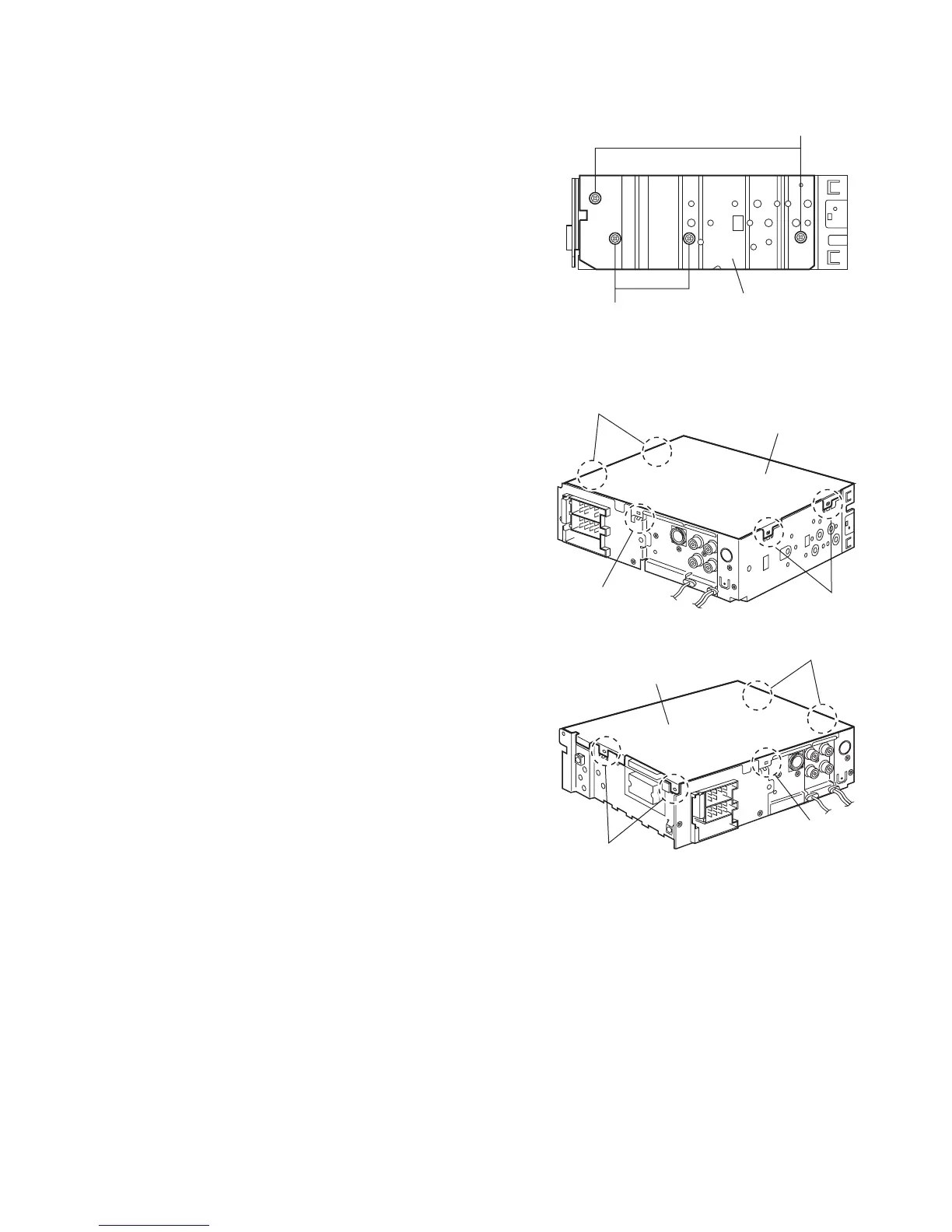

2.1.3 Removing the heat sink
(See Fig.5)
(1) Remove the two screws C and two screws D on the left
side of the main body.
Fig.5
2.1.4 Removing the bottom cover
(See Figs.6 and 7)
• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly and heat sink.
(1) Turn over the body and release the two joints c, two joints
d and joint e.
CAUTION:
Do not damage the main board when releasing the joint e
using a screwdriver. (See Figs.6 and 7)
Fig.6
Fig.7
C
D
Heat sink
Joint
d
Joint e
Joint f
Bottom cover
Joint e
Joint d
Joint f
Bottom cover
To Next Page
