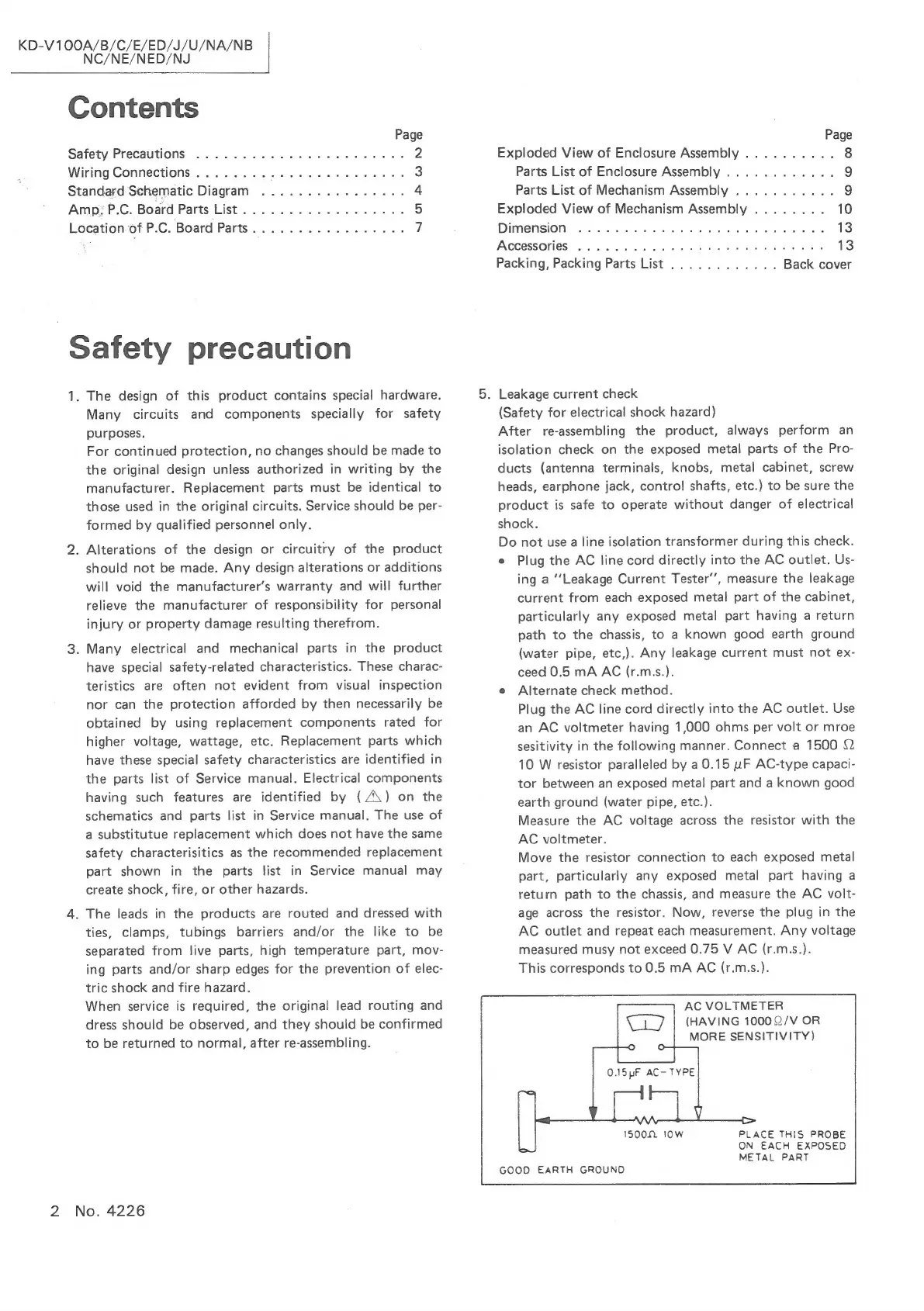

KD-V
100A/B/C/E/ED/J/U/NA/NB
NC/NE/NED/NJ
Contents
Page
Safety
Precautions
............0-0
eee
eee
2
Wiring
Connections
...........-.--++++000s
3
Standard
Schematic
Diagram
................
4
Amp:
P.C.
Board
Parts
List.
.............22205
5
Location
of
P.C.
Board
Parts.................
7
Safety
precaution
1.
The
design
of
this
product
contains
special
hardware.
Many
circuits
and
components
specially
for
safety
purposes.
For
continued
protection,
no
changes
should
be
made
to
the
original
design
unless
authorized
in
writing
by
the
manufacturer.
Replacement
parts
must
be
identical
to
those
used
in
the
original
circuits.
Service
should
be
per-
formed
by
qualified
personnel
only.
2.
Alterations
of
the
design
or
circuitry
of
the
product
should
not
be
made.
Any
design
alterations
or
additions
will
void
the
manufacturer’s
warranty
and
will
further
relieve
the
manufacturer
of
responsibility
for
personal
injury
or
property
damage
resulting
therefrom.
3.
Many
electrical
and
mechanical
parts
in
the
product
have
special
safety-related
characteristics.
These
charac-
teristics
are
often
not
evident
from
visual
inspection
nor
can
the
protection
afforded
by
then
necessarily
be
obtained
by
using
replacement
components
rated
for
higher
voltage,
wattage,
etc.
Replacement
parts
which
have
these
special
safety
characteristics
are
identified
in
the
parts
list
of
Service
manual.
Electrical
components
having
such
features
are
identified
by
(/\)
on
the
schematics
and
parts
list
in
Service
manual.
The
use
of
a
substitutue
replacement
which
does
not
have
the
same
safety
characterisitics
as
the
recommended
replacement
part
shown
in
the
parts
list
in
Service
manual
may
create
shock,
fire,
or
other
hazards.
4.
The
leads
in
the
products
are
routed
and
dressed
with
ties,
clamps,
tubings
barriers
and/or
the
like
to
be
separated
from
live
parts,
high
temperature
part,
mov-
ing
parts
and/or
sharp
edges
for
the
prevention
of
elec-
tric
shock
and
fire
hazard.
When
service
is
required,
the
original
lead
routing
and
dress
should
be
observed,
and
they
should
be
confirmed
to
be
returned
to
normal,
after
re-assembling.
2
No.
4226
Page
Exploded
View
of
Enclosure
Assembly
..........
8
Parts
List
of
Enclosure
Assembly
............
9
Parts
List
of
Mechanism
Assembly
...........
9
Exploded
View
of
Mechanism
Assembly
........
10
DIMMGRSION
+2
&
scusces
eco
BS
be
SS
de.
oS
eodew
@
Redes
13
ACCESSOTIES:
oc
ecdiar
st
ee
ew
Hw
ares
Face
eae
w
13
Packing,
Packing
Parts
List
............
Back
cover
.
Leakage
current
check
(Safety
for
electrical
shock
hazard)
After
re-assembling
the
product,
always
perform
an
isolation
check
on
the
exposed
metal
parts
of
the
Pro-
ducts
(antenna
terminals,
knobs,
metal
cabinet,
screw
heads,
earphone
jack,
contro!
shafts,
etc.)
to
be
sure
the
product
is
safe
to
operate
without
danger
of
electrical
shock.
Do
not
use
a
line
isolation
transformer
during
this
check.
e
Plug
the
AC
line
cord
directly
into
the
AC
outlet.
Us-
ing
a
‘‘Leakage
Current
Tester’’,
measure
the
leakage
current
from
each
exposed
metal
part
of
the
cabinet,
particularly
any
exposed
metal
part
having
a
return
path
to
the
chassis,
to
a
known
good
earth
ground
(water
pipe,
etc,).
Any
leakage
current
must
not
ex-
ceed
0.5
mA
AC
(r.m.s.).
e
Alternate
check
method.
Plug
the
AC
line
cord
directly
into
the
AC
outlet.
Use
an
AC
voltmeter
having
1,000
ohms
per
volt
or
mroe
sesitivity
in
the
following
manner.
Connect
a
1500
2
10
W
resistor
paralleled
by
a0.15
uF
AC-type
capaci-
tor
between
an
exposed
metal
part
and
a
known
good
earth
ground
(water
pipe,
etc.).
Measure
the
AC
voltage
across
the
resistor
with
the
AC
voltmeter.
Move
the
resistor
connection
to
each
exposed
metal
part,
particularly
any
exposed
metal
part
having
a
return
path
to
the
chassis,
and
measure
the
AC
volt-
age
across
the
resistor.
Now,
reverse
the
plug
in
the
AC
outlet
and
repeat
each
measurement.
Any
voltage
measured
musy
not
exceed
0.75
V
AC
(r.m.s.).
This
corresponds
to
0.5
mA
AC
(r.m.s.).
AC
VOLTMETER
(HAVING
1000
2/V
OR
MORE
SENSITIVITY)
0.15
pF
AC-
TYPE
1500.
10W
PLACE
THIS
PROBE
ON
EACH
EXPOSED
METAL
PART
GOOD
EARTH
GROUND
