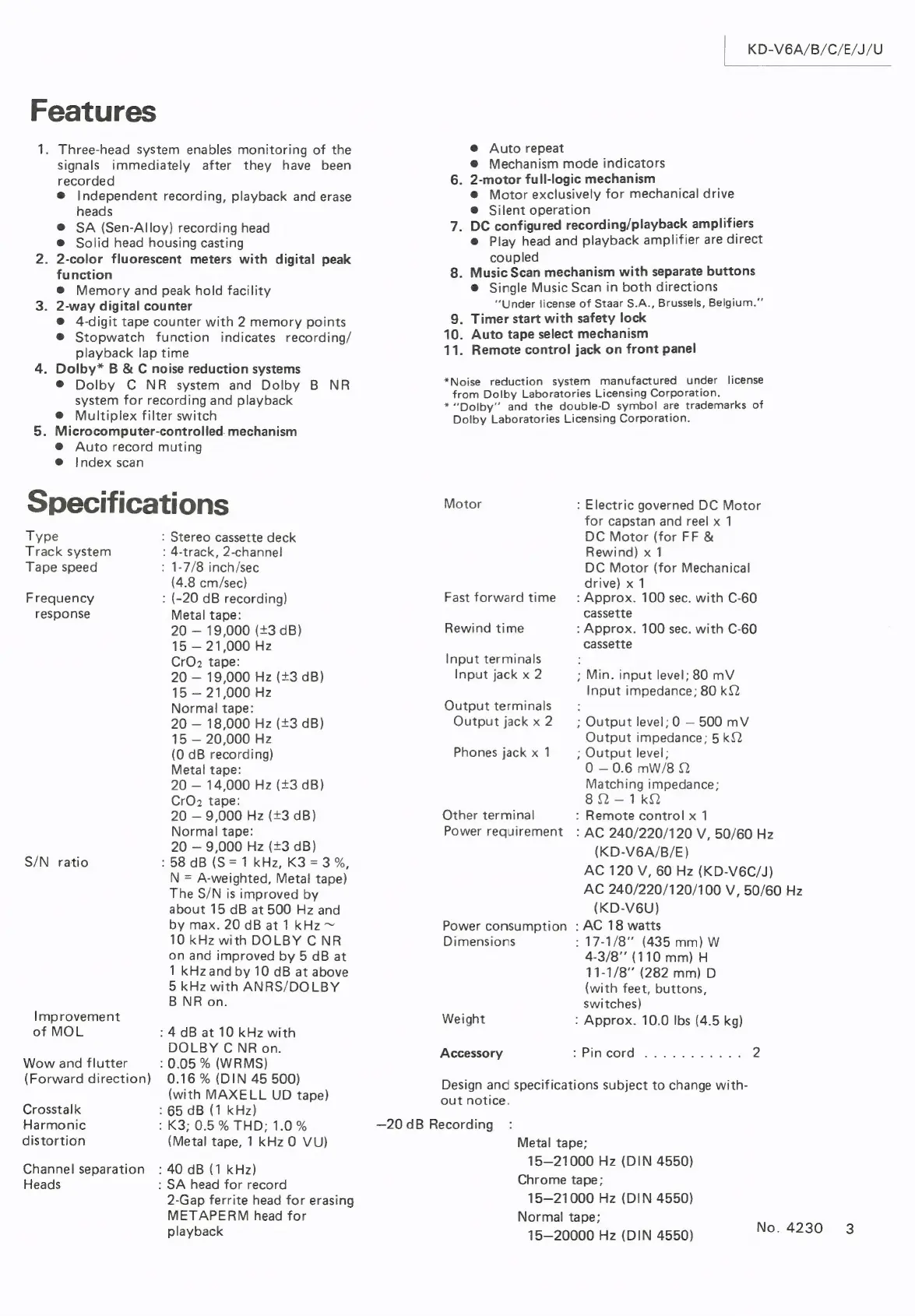

JVC KD-V6 - Specifications

Features
1. Three-head system enables monitoring of the
signals
recorded
immediately after they have been
@ Independent recording, playback and erase
heads
@ SA (Sen-Alloy) recording head
@ Solid head housing casting
2. 2-color fluorescent meters with digital peak
function
@ Memory and peak hold facility
3. 2-way digital counter
@ 4-digit tape counter with 2 memory points
@ Stopwatch function indicates recording/
playback lap time
4. Dolby* B & C noise reduction systems
® Dolby C NR system and Dolby B NR
system for recording and playback
@ Multiplex filter switch
5. Microcomputer-controlled. mechanism
@ Auto record muting
@ Index scan
Specifications
Type
Track system
Tape speed
Frequency
response
S/N ratio
Improvement
of MOL
Wow and flutter
(Forward direction)
Crosstalk
Harmonic
distortion
Channel separation
Heads
: Stereo cassette deck
: 4-track, 2-channel
: 1-7/8 inch/sec
(4.8 cm/sec)
: (-20 dB recording)
Metal tape:
20 — 19,000 (+3 dB)
15 — 21,000 Hz
CrO2 tape:
20 — 19,000 Hz (+3 dB)
15 — 21,000 Hz
Normal tape:
20 — 18,000 Hz (+3 dB)
15 — 20,000 Hz
(O dB recording)
Metal tape:
20 — 14,000 Hz (+3 dB)
CrO2 tape:
20 — 9,000 Hz (+3 dB)
Normal tape:
20 — 9,000 Hz (+3 dB)
: 58 dB (S=1 kHz, K3=3%,
N = A-weighted, Metal tape)
The S/N is improved by
about 15 dB at 500 Hz and
by max. 20 dB at 1 kHz ~
10 kHz with DOLBY C NR
on and improved by 5 dB at
1 kHz and by 10 dB at above
5 kHz with ANRS/DOLBY
B NR on.
: 4 dB at 10 kHz with
DOLBY C NR on.
: 0.05 % (WRMS)
0.16 % (DIN 45 500)
(with MAXELL UD tape)
: 65 dB (1 kHz)
: K3; 0.5 % THD; 1.0 %
(Metal tape, 1 kHz 0 VU)
: 40 dB (1 kHz)
: SA head for record
2-Gap ferrite head for erasing
METAPERM head for
playback
@ Auto repeat
KD-V6A/B/C/E/J/U
@ Mechanism mode indicators
6. 2-motor full-logic mechanism
@ Motor exclusively for mechanical drive
@ Silent operation
7.
DC
configured
recording/playback
amplifiers
@
Play
head
and
playback
amplifier
are
direct
coupled
8. Music Scan mechanism with separate buttons
®@ Single Music Scan in both directions
“Under license of Staar S.A., Brussels, Belgium.”
9. Timer start with safety lock
10.
11.
Auto tape select mechanism
Remote control jack on front panel
*Noise reduction system manufactured under license
from Dolby Laboratories Licensing Corporation.
*"Dolby’’ and the double-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
Motor
Fast forward time
Rewind time
Input terminals
Input jack x 2
Output terminals
Output jack x 2
Phones jack x 1
Other terminal
Power requirement
Power consumption
Dimensions
: Electric governed DC Motor
for capstan and reel x 1
DC Motor (for FF &
Rewind) x 1
DC Motor (for Mechanical
drive) x 1
: Approx. 100 sec. with C-60
cassette
: Approx. 100 sec. with C-60
cassette
: Min. input level; 80 mV
Input impedance; 80 kQ2
; Output level; 0 — 500 mV
Output impedance; 5 kQ2
; Output level;
0 — 0.6 mW/8 2Q
Matching impedance;
8Q-—-1kQ
: Remote control x 1
: AC 240/220/120 V, 50/60 Hz
(KD-V6A/B/E)
AC 120 V, 60 Hz (KD-V6C/J)
AC 240/220/120/100 V, 50/60 Hz
(KD-V6U)
: AC 18 watts
: 17-1/8"" (435 mm) W
4-3/8"’ (110 mm) H
11-1/8" (282 mm) D
(with feet, buttons,
switches)
Weight : Approx. 10.0 Ibs (4.5 kg)
Accessory <ePAMYCONG Beh eey Ste ee 2.
Design and specifications subject to change with-
out notice.
—20 dB Recording
Metal tape;
15—21000 Hz (DIN 4550)
Chrome tape;
15—21000 Hz (DIN 4550)
Normal tape;
No. 4230 3
15—20000 Hz (DIN 4550)
