| KD-V6A/B/C/E/J/U
/\ parts are safety assurance parts.
When replacing those parts, make sure to
use the specified one.

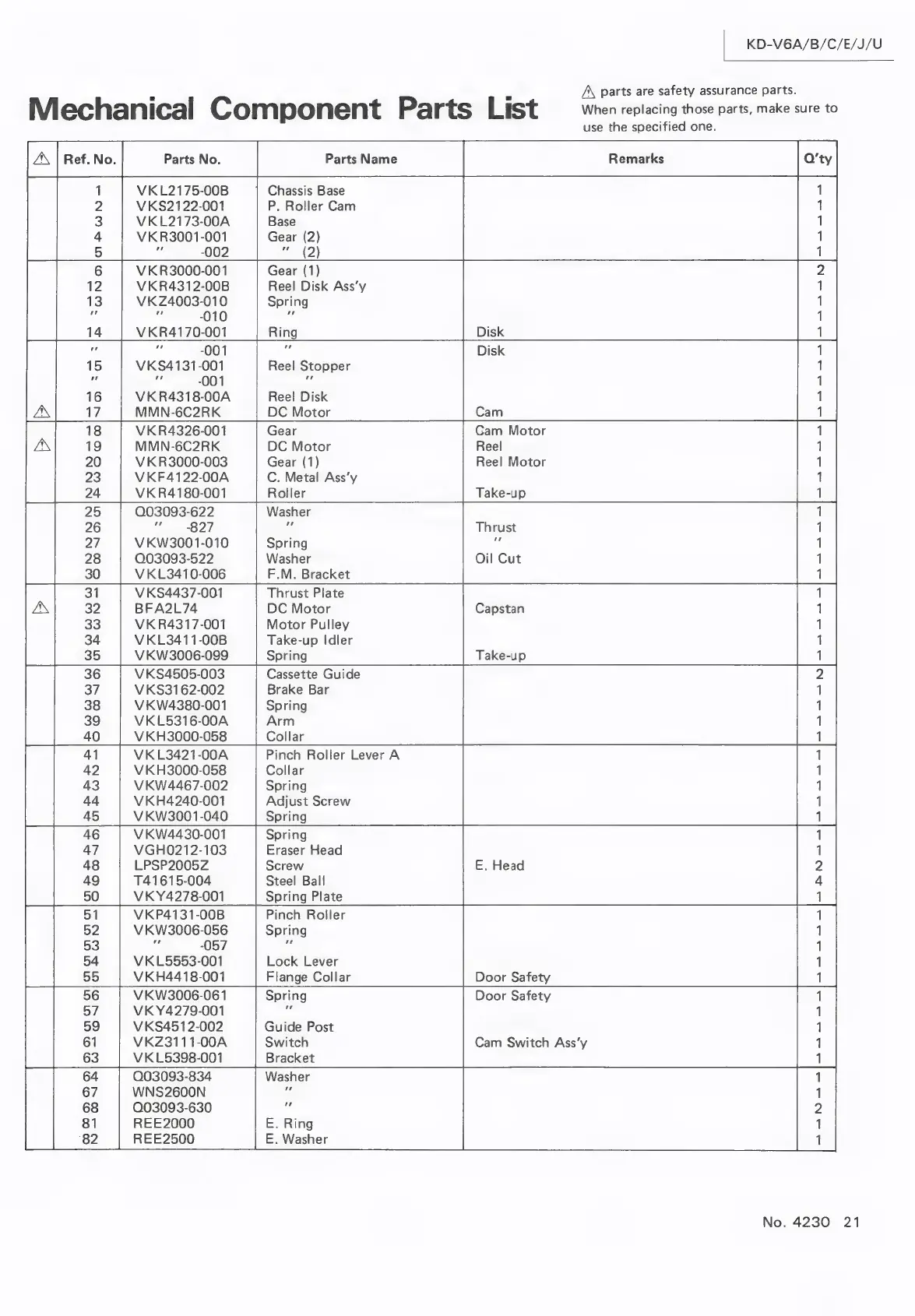

Mechanical Component Parts List
cr
Parts Name Remarks ty
1 VKL2175-00B Chassis Base 1
2 VKS2122-001 P. Roller Cam 1
3 VKL2173-00A Base 1
4 VKR3001-001 Gear (2) 1
5 ot -002 #2 (2) 1
6 VKR3000-001 Gear (1) 2
2 VKR4312-00B Reel Disk Ass’y 1
13 VKZ4003-010 Spring 1
oy ue -010 te 1
14 VKR4170-001 Ring Disk 1
ie ad -001 ae Disk 1
15 VKS4131-001 Reel Stopper 1
uf fd -001 Hi 1
16 VKR4318-00A Reel Disk 1
AN 17 MMN-6C2RK DC Motor Cam 1
18 VKR4326-001 Gear Gam Motor 1
AN 19 MMN-6C2RK DC Motor Reel 1
20 VKR3000-003 Gear (1) Reel Motor 1
23 VKF4122-00A C. Metal Ass’y 1
24 VKR4180-001 Roller Take-up 1
25 Q03093-622 Washer 1
26 "827 A Thrust 1
27 VKW3001-010 Spring a 1
28 Q03093-522 Washer Oil Cut 1
30 VKL3410-006 F.M. Bracket 1
31 VKS4437-001 Thrust Plate 1
A 32 BFA2L74 DC Motor Capstan 1
VKR4317-001 Motor Pulley 1
VKL3411-00B Take-up Idler 1
VKW3006-099 Spring Take-up 1
VKS4505-003 Cassette Guide 2
VKS3162-002 Brake Bar 1
VKW4380-001 Spring 1
VKL5316-00A Arm 1
VKH3000-058 Collar 1
VKL3421-00A Pinch Roller Lever A 1
VKH3000-058 Collar 1
VKW4467-002 Spring 1
VKH4240-001 Adjust Screw 1
VKW3001-040 Spring 1
VKW4430-001 Spring 1
VGH0212-103 Eraser Head 1
LPSP2005Z Screw 2
T41615-004 Steel Ball 4
VKY4278-001 Spring Plate 1
VKP4131-00B Pinch Roller 1
VKW3006-056 Spring 1
oe -057 ee 1
VKL5553-001 Lock Lever 1
VKH4418-001 Flange Collar Door Safety 1
VKW3006-061 Spring Door Safety 1
VKY4279-001 xs 1
VKS4512-002 Guide Post 1
VKZ3111-00A Switch Cam Switch Ass’y 1
VKL5398-001 Bracket 1
Q03093-834 Washer 1
WNS2600N od 1
68 0Q03093-630 iy 2
81 REE2000 E. Ring 1
82 REE2500 E. Washer 1
No. 4230 21
