JVC KW-R950BT

ENGLISH
35
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Installation/Connection

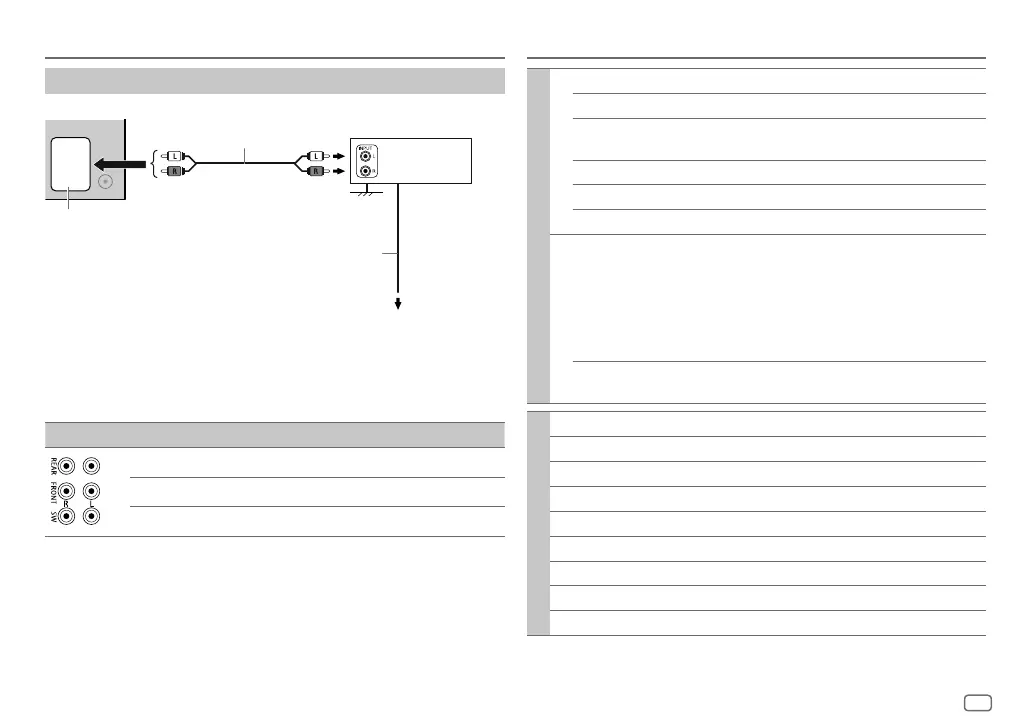

Connect external amplifiers via output terminals
JVC Amplifier*
Signal cord (not supplied)
Output terminals
To remote lead (blue/white) of the
wiring harness. (Page 34)
Remote wire (not supplied)
* Firmly connect the ground wire of the amplifier to the car’s chassis to avoid damaging the unit.
Output terminals 2-way crossover 3-way crossover
REAR: Rear output Tweeter output
FRONT: Front output Mid Range output
SW: Subwoofer output Woofer output
Specifications
Tuner
FM Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step)
Usable Sensitivity (S/N = 30 dB) 8.2 dBf (0.71 μV/75 Ω)
Quieting Sensitivity
(DIN S/N = 46 dB)
17.2 dBf (2.0 μV/75 Ω)
Frequency Response (±3 dB) 30 Hz — 15 kHz
Signal-to-Noise Ratio (MONO) 64 dB
Stereo Separation (1 kHz) 40 dB
AM Frequency Range Band 1 (AM):
531 kHz — 1 602 kHz (9 kHz step)
Band 2 (SW1):
2 940 kHz — 7 735 kHz (5 kHz step)
Band 3 (SW2):
9 500 kHz — 10 135 kHz /
11 580 kHz — 18 135 kHz (5 kHz step)
Usable Sensitivity (S/N = 20 dB) AM: 29 dBμ (28.2 μV)
SW: 30 dBμ (32 μV)
CD player
Laser Diode GaAIAs
Digital Filter (D/A) 8 times over sampling
Spindle Speed 500 rpm — 200 rpm (CLV)
Wow & Flutter Below measurable limit
Frequency Response (±1 dB) 20 Hz — 20 kHz
Total Harmonic Distortion (1 kHz) 0.01 %
Signal-to-Noise Ratio (1 kHz) 92 dB
Dynamic Range 92 dB
Channel Separation 86 dB
