JVC KW-X830BT - INSTALLATION;CONNECTION; Installation Parts and Procedure; Vehicle-Specific Installation

34
ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
INSTALLATION/CONNECTION

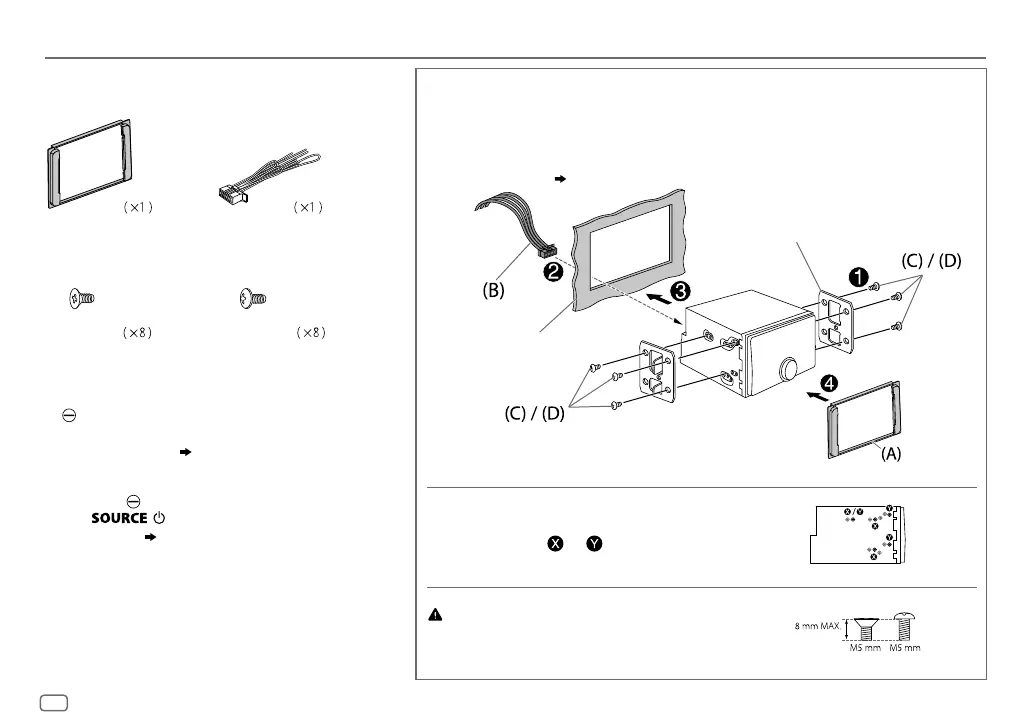

Part list for installation
Basic procedure
1 Remove the key from the ignition switch, then disconnect the
terminal of the car battery.
2 Connect the wires properly.
See Wiring connection.
( 35)
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the terminal of the car battery.
5 Press to turn on the power.
6 Reset the unit. ( 3)
Use only the specified screws. Using wrong screws might
damage the unit.
Installing the unit (in-dash mounting)
Install onto the car brackets using the supplied screws (C) or (D) . The screw holes differ depending on the model
of the cars. Then, install the supplied trim plate
(A) .
(B) Wiring harness (A) Trim plate
(C) Flat head screw
M5 × 8mm
(D) Round head screw
M5 × 8mm
Do the required wiring. ( 35)
Dashboard of your car
Car bracket
Installing in Toyota cars
Install onto the car brackets using the supplied screws (C) or (D) .
Use the mounting holes (
) or ( ) that fit the car brackets.
