3.1.12 Removing the switch board
(See Fig.12)
• Remove the front panel assembly.
(1) From the inside of front panel assembly, remove the eight
screws Q attaching the switch board.
(2) Remove the volume knob from the front side of the front
panel assembly in the direction of the arrow while lifting the
switch board little by little.
(3) Release the sections j while extending the lower section of
the front panel assembly in the direction of the arrow and
take out the switch board.

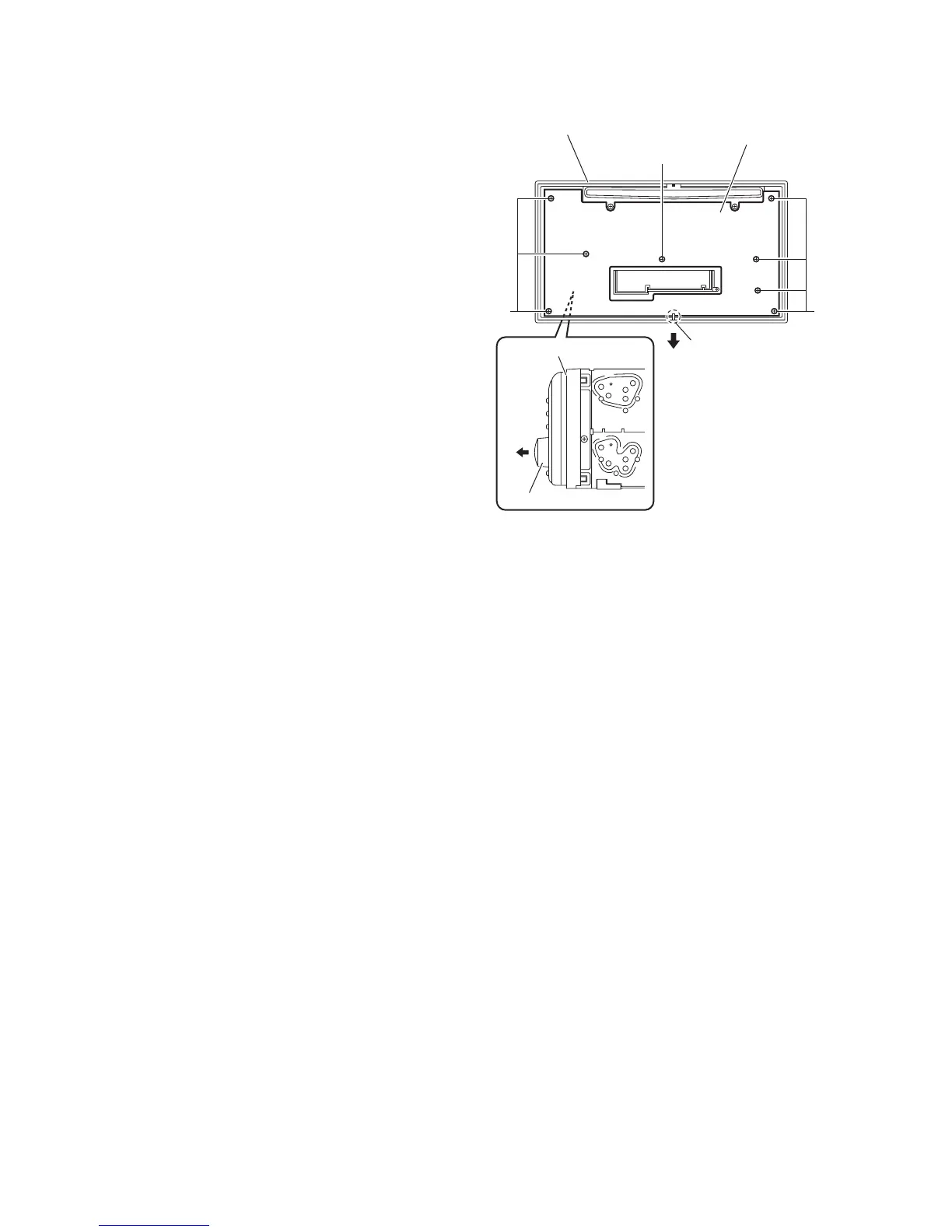

Fig.12
Q
QQ
Front panel assembly
Switch board
j
Volume knob
Front panel assembly
