1-12 (No.YA369)
3.2 MEMORY IC REPLACEMENT
• This model uses the memory IC.
• This memory IC stores data for proper operation of the video and drive circuits.
• When replacing, be sure to use an IC containing this (initial value) data.
3.2.1 MEMORY IC REPLACEMENT PROCEDURE
1. Power off
Switch off the power and disconnect the power plug from the AC outlet.
2. Replace the memory IC
Be sure to use the memory IC written with the initial setting values.
3. Power on
Connect the power plug to the AC outlet and switch on the power.
4. Receiving channel setting
Refer to the OPERATING INSTRUCTIONS and set the receive channels (Channels Preset) as described.
5. User setting
Check the user setting items according to the given in page later. Where these do not agree, refer to the OPERATING
INSTRUCTIONS and set the items as described.
6. SERVICE MODE setting
Verify what to set in the SERVICE MODE, and set whatever is necessary (Fig.1). Refer to the SERVICE ADJUSTMENT for setting.

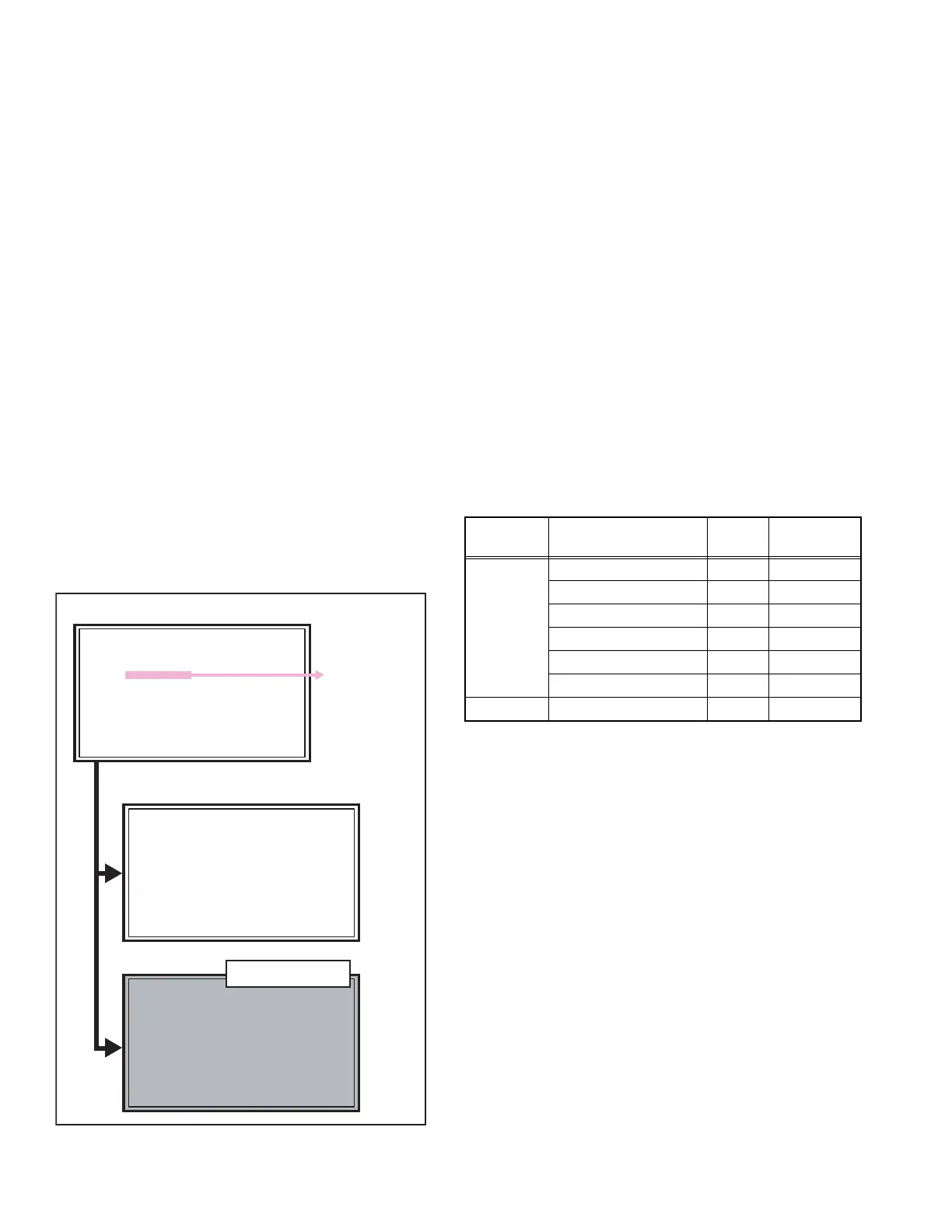

3.2.2 SERVICE MODE SETTING
SERVICE MODE SCREEN
NOTE:
As self check feature is not used in this TV,
“2.SELF_CHECK” cannot be selected (screen display
only).
Fig.1
SETTING ITEM
SERVICE MENU
1.ADJUST
2.SELF_CHECK
3.I2C STOP
4.OPTION
SERVICE MODE SCREEN
1. ADJUST
S001 5I R OF 126
PAL50 FULL STD H
4. OPTION
0001 GAMMA TABLE 000
Not used
(Display only)
[Do not adjust]
Setting
items
Setting items Settings Item No.
1.ADJUST Video system setting -1 Adjust S001 - S043
Video system setting -2 Fixed M001 - M009
Audio System Setting Fixed A001 - A003
Video system setting -3 Fixed D001 - D051
Video system setting -4 Fixed SD01 - SD15
Video system setting -5 Fixed DD07 - DD31
1.OPTION Option Setting Fixed 0001 - 0004
To Next Page
