Setting up your TV
LT-32/26A61BJ/SJ / LCT1999-001A-U / English
Connecting the aerial and video cassette recorder (VCR)
• The connecting cables are not provided.
• For further details, refer to the manuals provided with the devices to be connected.
Caution
• Turn off all the equipment including the TV before connecting anything.
If you are connecting a VCR,

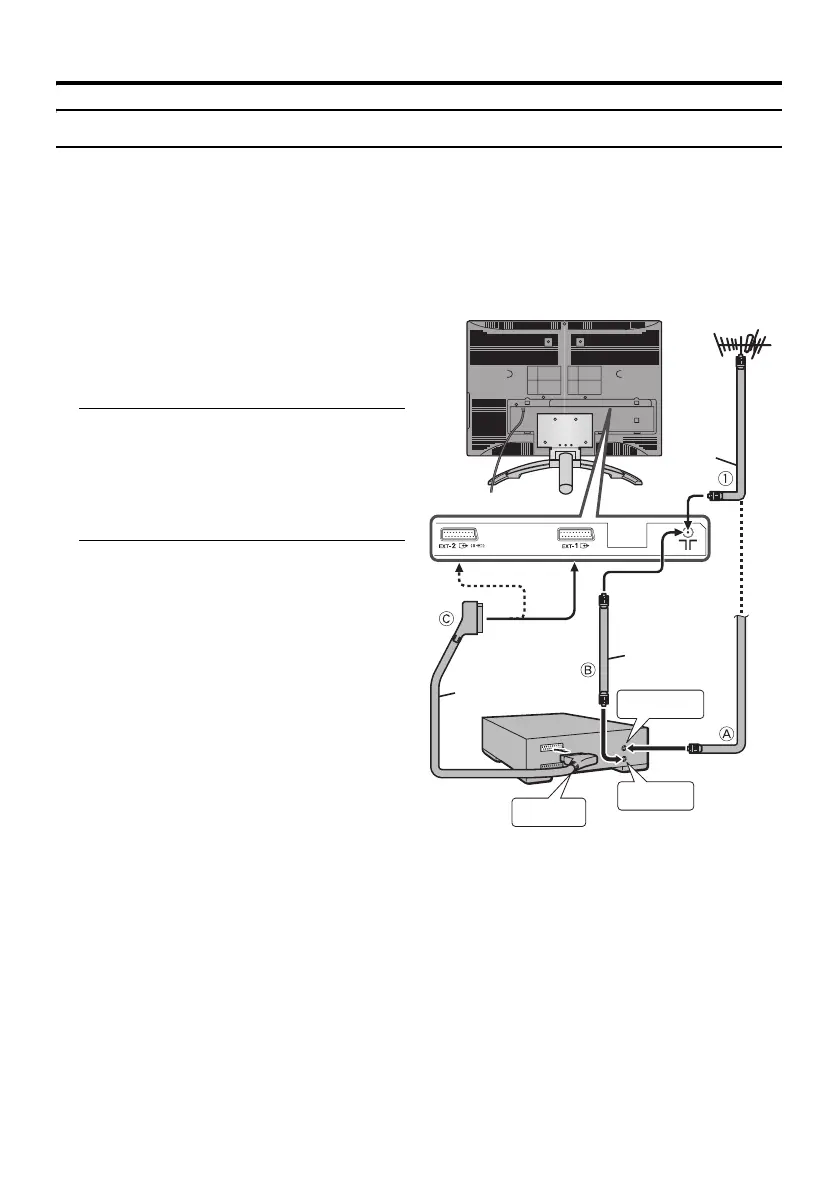

follow A → B → C in the diagram
opposite.
If you are not connecting a VCR,
follow 1.
To use the T-V LINK functions, you must
have a T-V LINK compatible VCR
connected by a SCART cable C to the EXT-
2 terminal on the TV. For details about T-V
LINK functions, see “T-V LINK functions”
on page 10.
• You can watch a video using the VCR
without doing C. For details, see your
VCR instruction manual.
• To connect more equipment, please see
“Connecting external equipment” on
page 40.
• If you connect a decoder to a T-V LINK
compatible VCR, set the DECODER
(EXT-2) function to ON. For details, see
“DECODER (EXT-2)” on page 36.
Otherwise, you will not be able to watch
scrambled channels.
75-ohm
Coaxial
Cable
21-pin
SCART
Cable
without terminal covers
75-ohm
Coaxial
Cable
To Aerial
Output
To Aerial
Input
VCR
Aerial
AV IN/OUT
Terminal
