2-24(No.YA369)(No.YA369)2-23
POWER PWB ASS'Y (3/3)
QAL0826-001
MAIN PWB ASS'Y (3/4)
J801 (SHEET3)
LCD PANEL UNIT

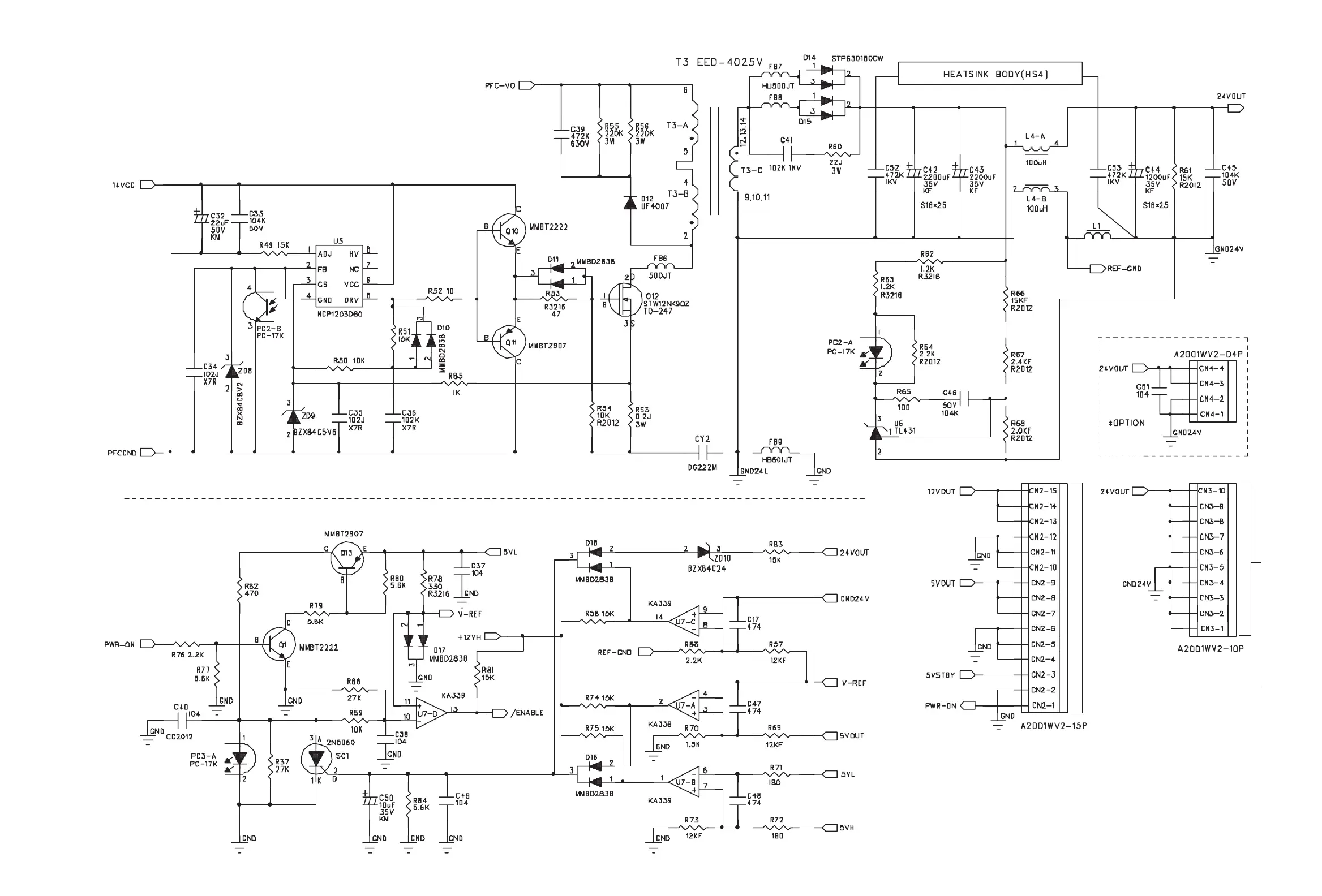

POWER PWB CIRCUIT DIAGRAM (3/3) SHEET 10
