4
EN
I
NTRODUCTION
remote control
(RM-C-2150)
batteries (AA x 2) Screw for attaching the
stand x 4 (FPH34200)

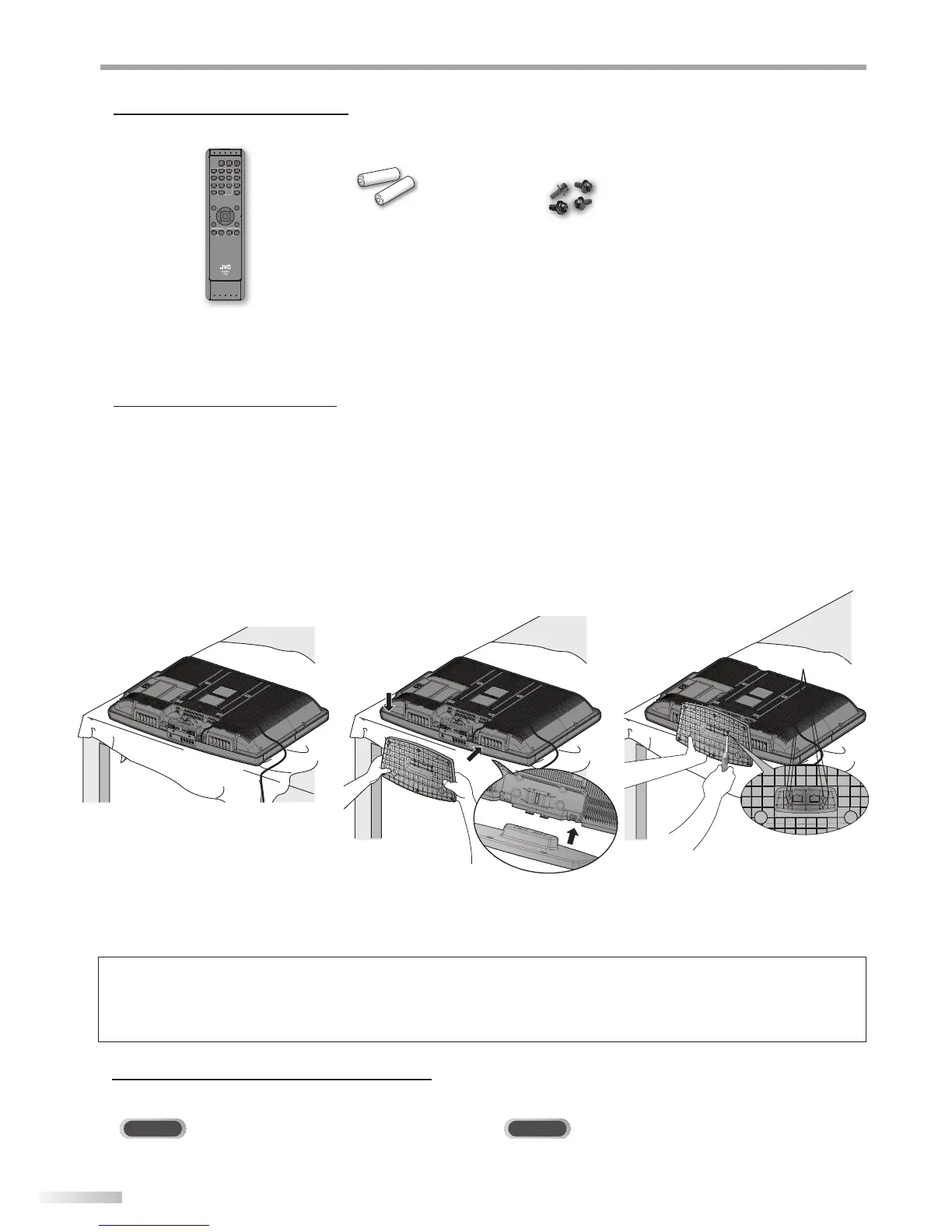

5 Supplied Accessories
5 Attaching the Stand
You must attach the stand to the unit to have it as a table top unit. Be sure the front and rear of the stand match the proper
direction.
Note:
• When attaching the stand, ensure that all screws are tightly fastened. If the stand is not properly attached, it could cause the unit to fall,
resulting in injuries as well as damage to the unit.
• Make sure to use a table which can support the weight of this unit and is larger than this unit.
• Make sure the table is in a stable location.
1
Spread a thick and soft cloth over a
table as shown below.
Place the main unit face down onto it.
Make sure not to damage the screen.
At least two people are required at
this step.
2
Align the 2 stand hooks with the two
hooks under the bottom of the main
unit (shown by arrow
➀
), then slide
the stand in the direction as shown
by arrow
➁
until it stops and the 4
mounting holes are aligned.
Make sure not to put the AC power
cord between the stand and the
unit.
3
Drive screws in the 4 threaded holes
at the bottom of the stand until
they are tight.
To remove the stand from this unit
Unscrew the screws indicated by above “
➂
”screw holes. After the
screws are removed pull the stand up toward the rear of the unit.
Be careful not to drop the stand when you remove it.
AA
AA
5 Symbols Used in this Manual
The following is the description for the symbols used in this manual. Description refers to:
TV
: Analog TV operation
DTV
: Digital TV operation
• If neither symbol appears under the function heading, operation is applicable to both.
• If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free
customer support line found on the cover of this manual.
front side
To Next Page
