JVC LT-32A200 User Manual

6
EN
I
NTRODUCTION

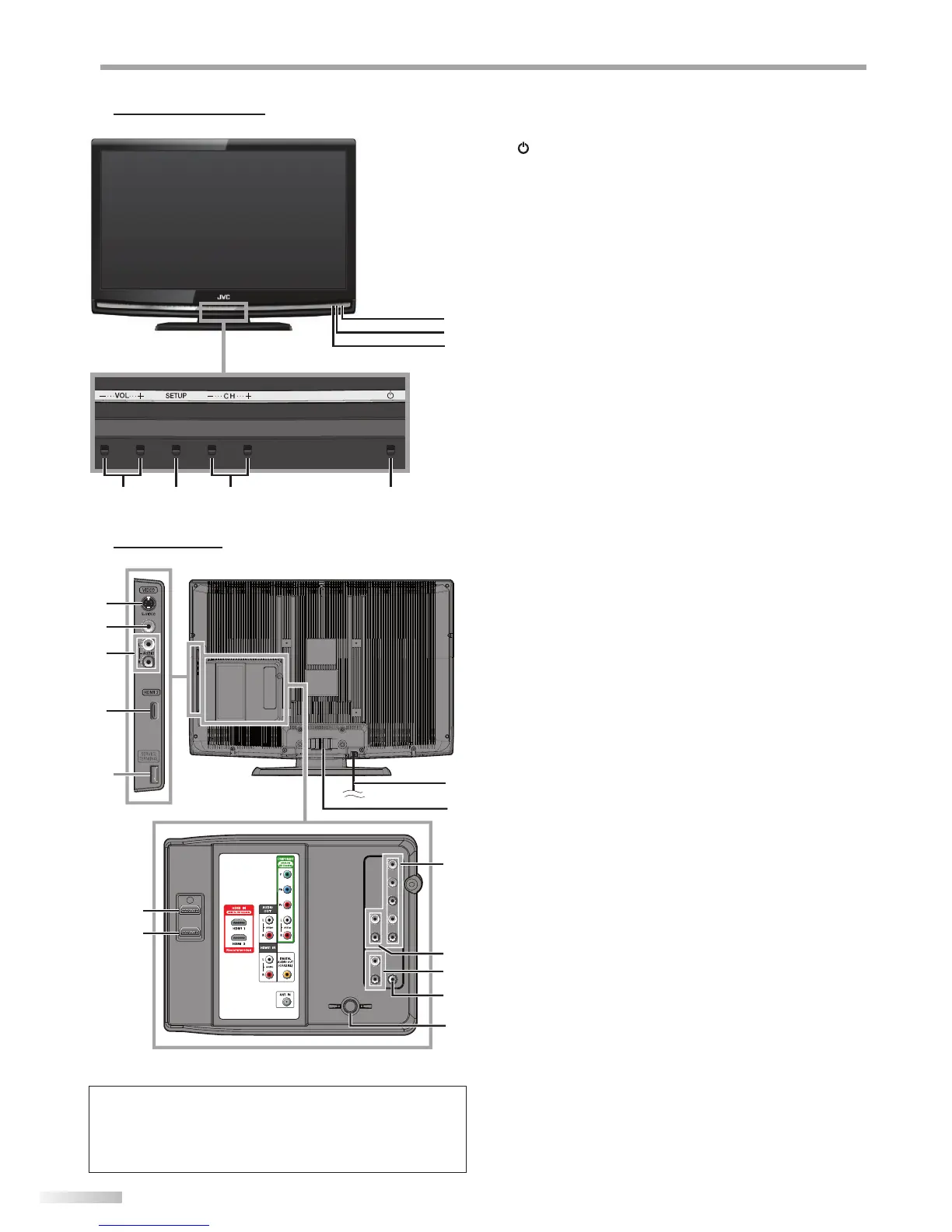

5 Terminals
Note:
*
service terminal (service use only)
• User should not connect any devices to the service terminal such
as digital camera, keyboard, mouse, etc. (because these will not
work).
5 Control Panel
1. y (power) (p. 13)
Press to turn the unit on and off.
2. CH
-
/
+
(p. 14 / p. 15)
Press to select channels or move up (
+
) / down (
-
)
through the main menu items.
3. SETUP (p. 13)
Press to display the main menu.
4. VOL
-
/
+
(p. 14)
Press to adjust the volume or move right (
+
) / left (
-
)
through the main menu items.
5. infrared sensor window
Receives infrared rays transmitted from the remote
control.
6. POWER ON indicator
Lights up blue when power is on.
7. STAND BY indicator
Lights up red when power is off.
[Side Panel]
8. S-video input jack (p. 10)
S-video cable connection from an external device.
9. video input jack (p. 11)
RCA video cable connection from an external
device.
10. audio input jack (p. 10 / p. 11)
RCA audio cable connection from an external
device.
11. HDMI 2 input jack (p. 8 / p. 9)
HDMI connection from HDMI device.
[Rear Panel]
12. AC power cord (p. 12)
Connect to a standard AC outlet to supply power to
this unit.
13. cable management (p. 12)
Use this holder to bundle the cables.
14.
component video and audio input jack (p. 8 / p. 10)
RCA component video cable and RCA audio cable
connection from an external device.
15. audio output jack (p. 11)
RCA audio cable connection for an external device.
16. audio input jack for HDMI 1 (p. 9
/ p. 12 )
RCA audio cable connection from a DVI device.
When you connect your PC that has a DVI terminal,
use a stereo mini plug-RCA conversion cable as well.
(For HDMI 1 input jack only)
17. digital audio output jack (p. 11)
Coaxial digital cable connection for a decoder or an
audio receiver.
18. antenna input jack (p. 8)
RF
coaxial cable connection for your antenna or cable
TV signal.
19. HDMI 1 input jack (p. 8 / p. 9 / p. 12)
HDMI connection for HDMI or DVI device.
When you connect your PC that has a DVI terminal,
you can enjoy this unit as a PC monitor.
20. HDMI 3 input jack (p. 8 / p. 9)
HDMI connection from HDMI device.
13
12
10
8
9
11
*
19
20
15
16
17
18
14
42 13
5
6
7

JVC LT-32A200 Specifications

General

HD type	Not supported
Display diagonal	31.5 \
Progressive scan	No
Display brightness	360 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Viewing angle, horizontal	170 °
RF ports quantity	1
Composite video out	0
Sleep timer	Yes
Product color	Black
Panel mounting interface	200 x 100 mm
RMS rated power	20 W
Analog signal format system	NTSC
