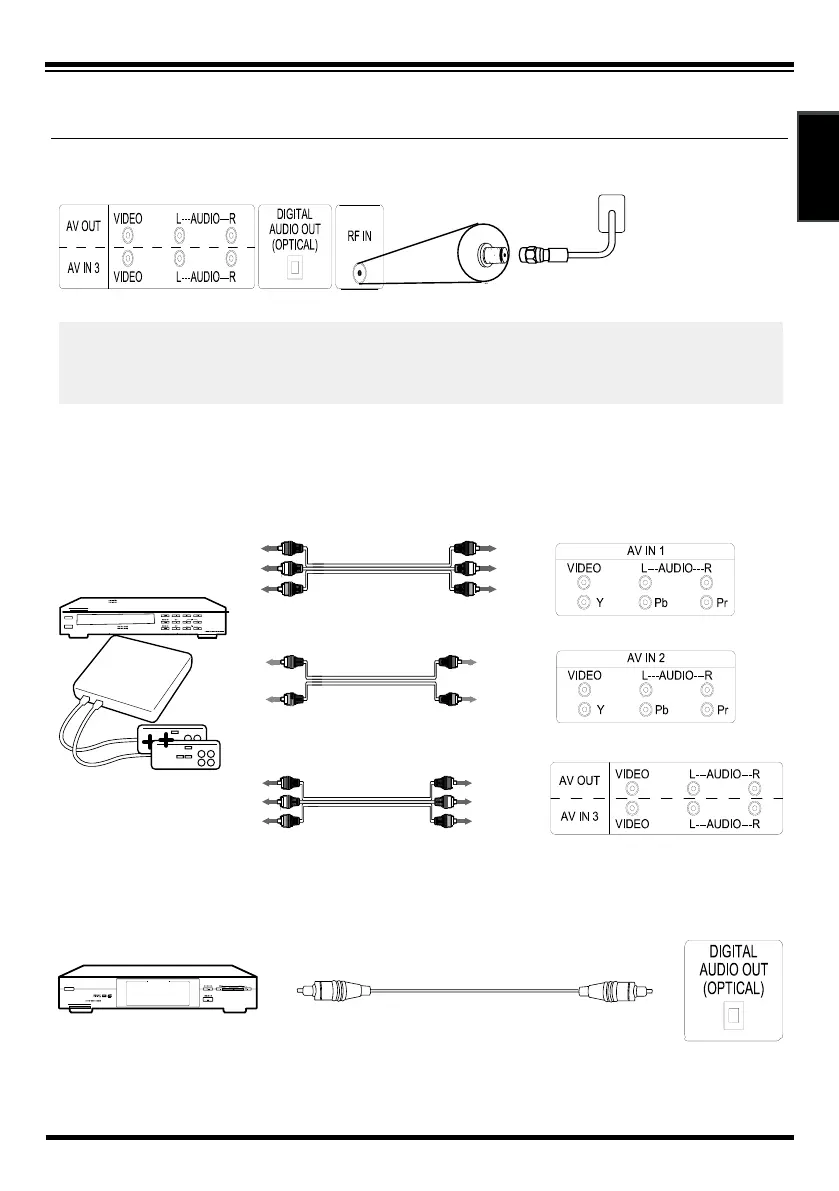

Cable Connections
AV IN 1/2/3
RF IN
Connect to device such as VCR, VCD player, DVD player etc.
It is strongly recommended that you connect the antenna using a 75Ω coaxial cable to get optimum
picture and sound quality. A 300Ω twin lead cable can be easily affected by radio and other
background noise, resulting in signal deterioration. When using a 300Ω twin lead cable, please
keep this cable as far away from the TV as possible.
DIGITAL AUDIO OUT(OPTICAL)
RCA component video cable
Pr
Pb
Y
(B)Blue
(R)Red
(G)Green
(B)Blue
(R)Red
(G)Green
RCA audio cable
AUDIO R
AUDIO L
(R)Red
(W)White
(R)Red
(W)White
(R)Red
(Y)Yellow
(W)White
(R)Red
(Y)Yellow
(W)White
VIDEO
AUDIO R
AUDIO L
RCA video&audio cable
AV IN 1-2
AV IN 1-3
