Quick Setup
INPUT 3 INPUT 4
S-VIDEO
Y
P
B
P R
VIDEO
L
R
COMPONENT
AUDIO
Y
P
B
P R
VIDEO
L
R
COMPONENT
AUDIO
VIDEO
L
R
AUDIO
L
R
AUDIO
TV Rear Panel
Speaker
Speaker
Amplifier
INPUT 5
/ INPUT 1
AUDIO
AUDIO
OUT

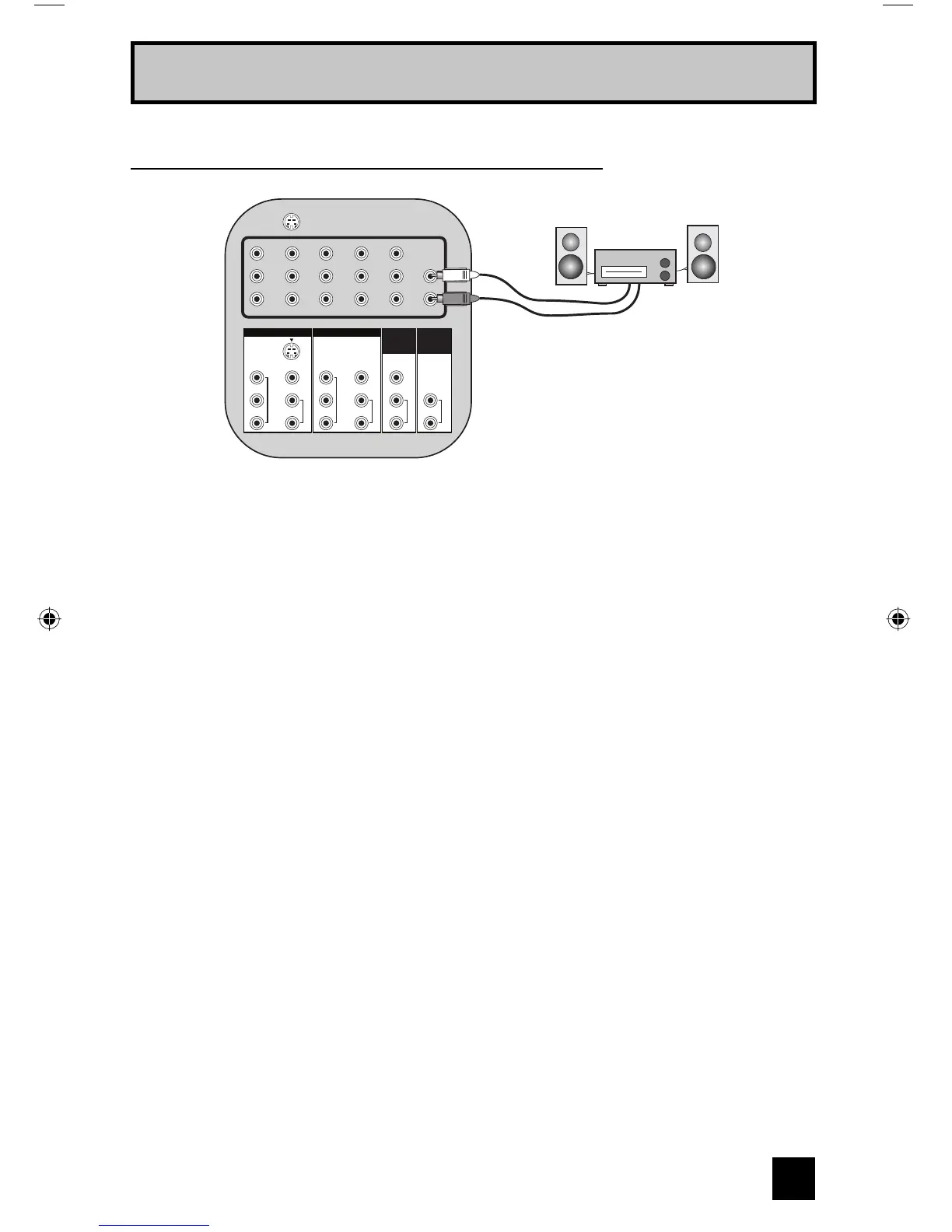

1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the
LEFT AUDIO INPUT on the amplifier.
2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the
RIGHT AUDIO INPUT on the amplifier.
Notes:
• Refer to your amplifier’s manual for more information.
• You can use AUDIO OUTPUT for your home theater system.
• If you have a device connected to INPUT-1 or INPUT-2, you will not be able to hear any
audio from the AUDIO OUT on the back of the TV.
Connecting to an External Amplifier
LCT2224-001B-A English.indd 17LCT2224-001B-A English.indd 17 2/15/07 11:04:57 AM2/15/07 11:04:57 AM

JVC LT-32E488 Specifications

General

I/O ports	2 HDMI/HDCP
Processor frequency	0.075 GHz
Display diagonal	31.5 \
Display brightness	500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (typical)	1200:1
On Screen Display (OSD)	Yes
AV input	3
RF ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	2
Product color	Black
RMS rated power	20 W

Weight and Dimensions

Depth (with stand)	230 mm
Width (with stand)	800 mm
Height (with stand)	593 mm
Weight (with stand)	14300 g
Depth (without stand)	99 mm
Height (without stand)	545 mm
Weight (without stand)	13500 g
