JVC LT-37DR7BJ - EXPLODED VIEW -2 [26 Inch; 32 Inch Models]

(No.YA408)3-7

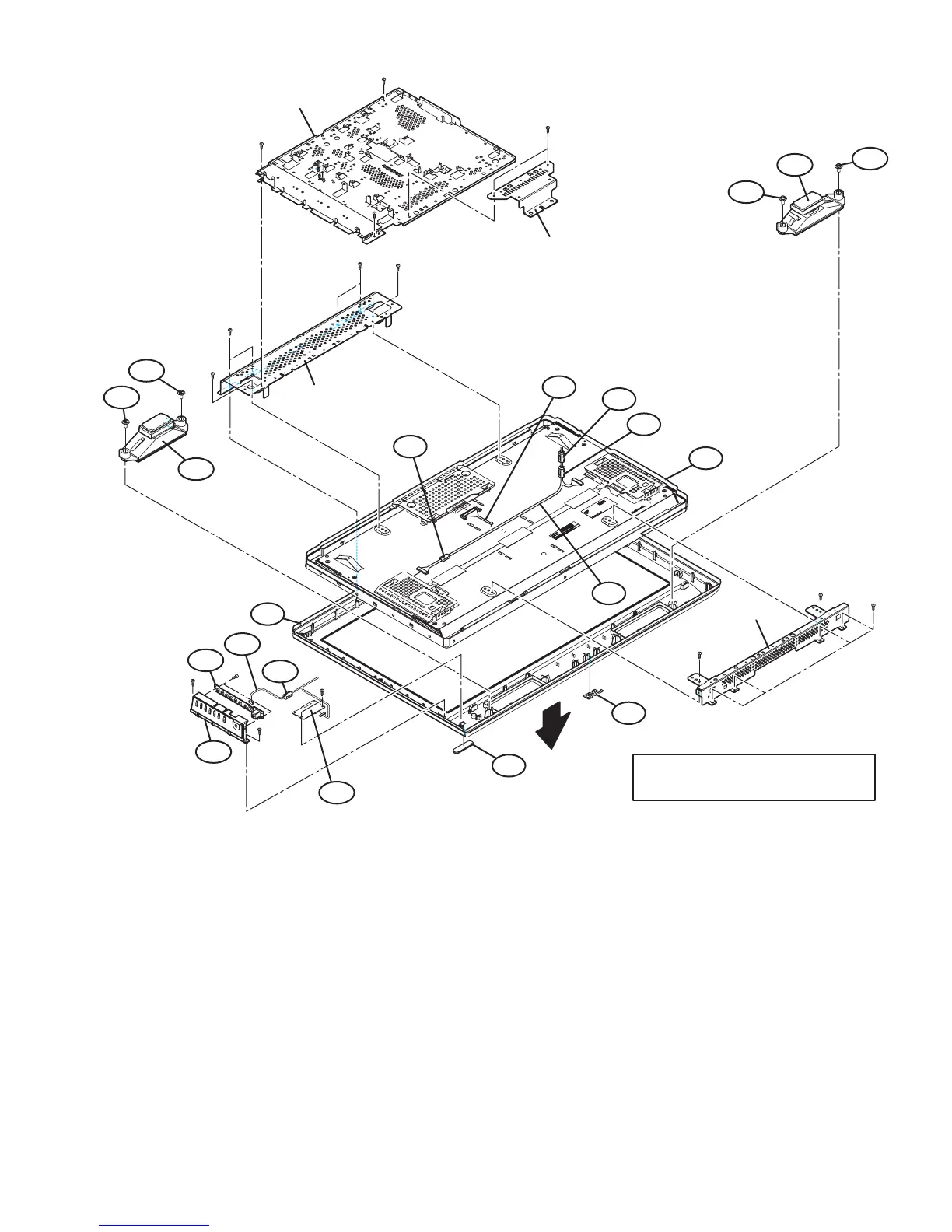

EXPLODED VIEW -2 [26 inch / 32 inch models]
BOTTOM FRAME
TOP FRAME
FRONT
MAIN BASE
STAND BRACKET
This exploded view shows the 32 inch models.
26 inch models have almost similar parts
locations.
