JVC LT-37DR7BJ - EXPLODED VIEW -4 [37 Inch Models]; EXPLODED VIEW PARTS LIST -4 [37 Inch Models]

3-10(No.YA408)
EXPLODED VIEW PARTS LIST -4 [37 inch models]

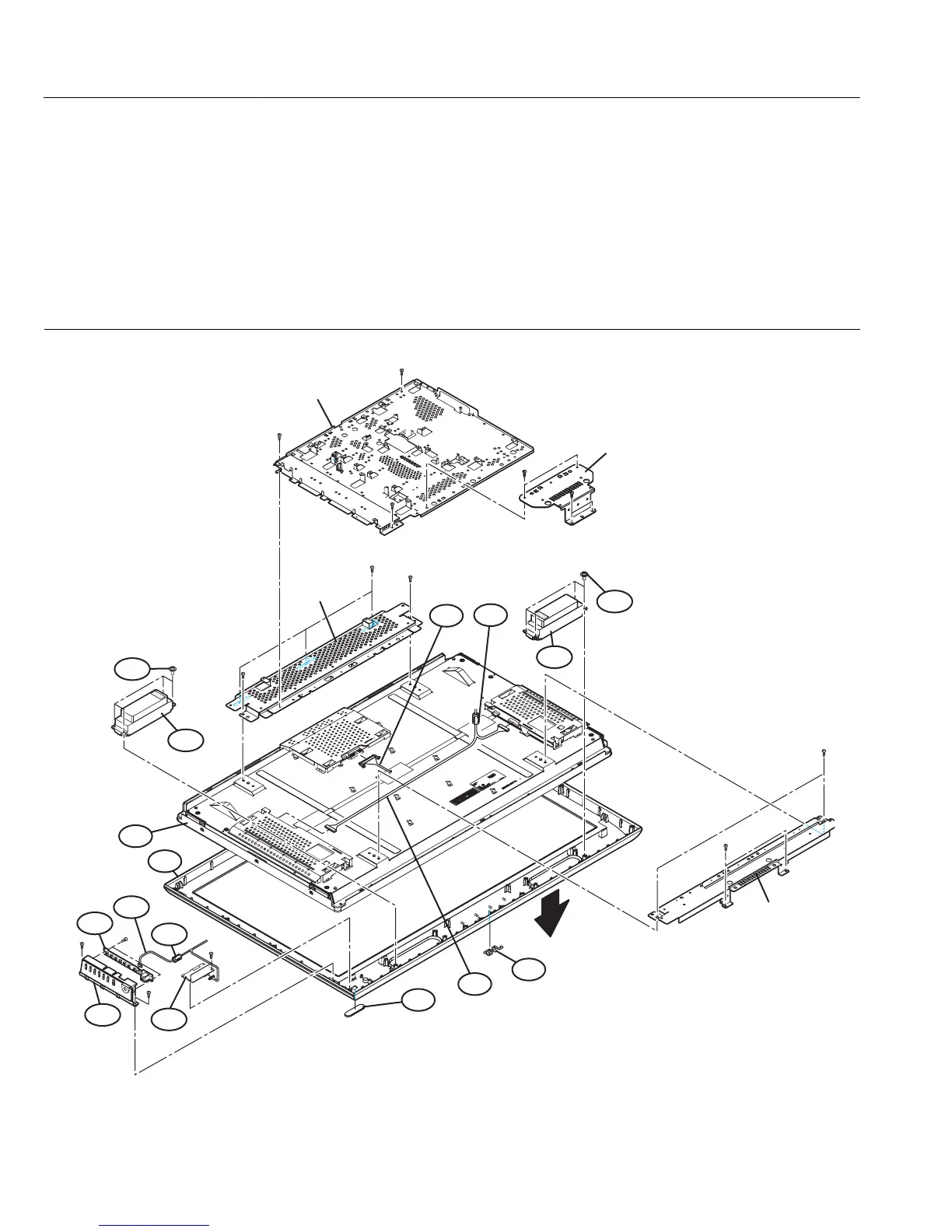

EXPLODED VIEW -4 [37 inch models]
 Ref.No. Part No. Part Name Description Local
151 QLD0432-001-JUK LCD PANEL UNIT
152 WJW0045-002A-E DIGITAL (LVDS) CABLE DIGITAL CN0LV2-LCD PANEL UNIT
153 QQR0491-001 FERRITE CORE
154 WJZ0208-001A-E E-HARNESS ASSY POWER PWB P-LCD PANEL UNIT
 155 LC12670-002A-U FRONT PANEL LT-37DR7BJ,LT-37DR7BJP
 155 LC12670-001A-U FRONT PANEL LT-37DR7SJ,LT-37DR7SJP
156 LC33452-002A LED PLATE LT-37DR7BJ,LT-37DR7BJP
156 LC33452-001A LED PLATE LT-37DR7SJ,LT-37DR7SJP
157 LC41852-001B JVC MARK ASSY
158 QAS0447-001 SPEAKER (x2)
159 QYSBSFG4016ZA TAP SCREW M4 x 16mm(x8)
160 WJZ0224-001A-E E-HARNESS ASSY ANALOG R-SW CN100R
 161 LC33404-001A-HK CONTROL ASSY
162 QQR0490-001 NOISE FILTER
 206 SFL-7209A-U2 SW PWB LT-37DR7BJ,LT-37DR7BJP,LT-37DR7SJ
 206 SFL-7206A-U2 SW PWB LT-37DR7SJP
 207 SFL-8904A-U2 LED PWB
BOTTOM FRAME
TOP FRAME
MAIN BASE
STAND
BRACKET
FRONT
158
159
159
158
157
153
152
154
156
155
151
206
160




161
162
207
