Preparation
11

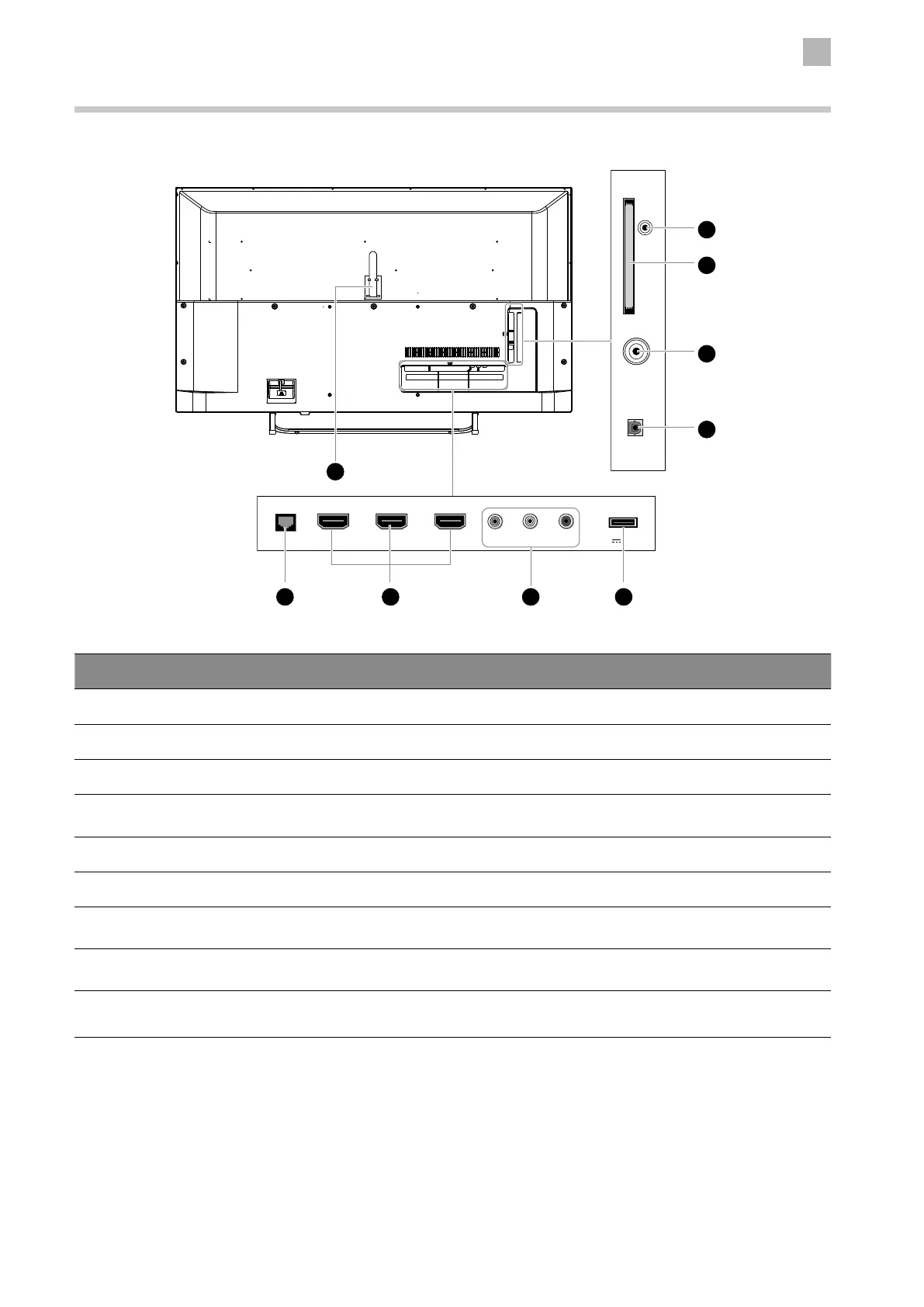

Rear View and Sockets
Item Description
1 HEADPHONES Connects to the headphones.
2 COMMON INTERFACE Allows the insertion of a Common Access Module.
3 RF Aerial Connects to the aerial socket on the wall with the RF coaxial cable.
4 Digital Audio Output
(Optical)
Connects to the audio socket on the digital/standard 5.1 audio system.
5 Cable Tie Bundle the connecting cables to prevent stepping on them before wall mounting.
6 LAN Connects your TV to the internet router by an Ethernet cable.
7 HDMI1(ARC) / HDMI2 /
HDMI3
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
8 VIDEO / AUDIO (L/R)
Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
9 USB
Allows the insertion of a USB storage device to play video, audio and photo files (USB
mode) and record DTV programmes on to a USB storage device.
HDMI1(ARC) HDMI2 HDMI3 RLVIDEO
LAN
USB
5V 500mA
RF
COMMON INTERFACE (CI)
HEADPHONES
Digital Audio Output
(optical)
1
3
2
4
96 7 8
5
