16

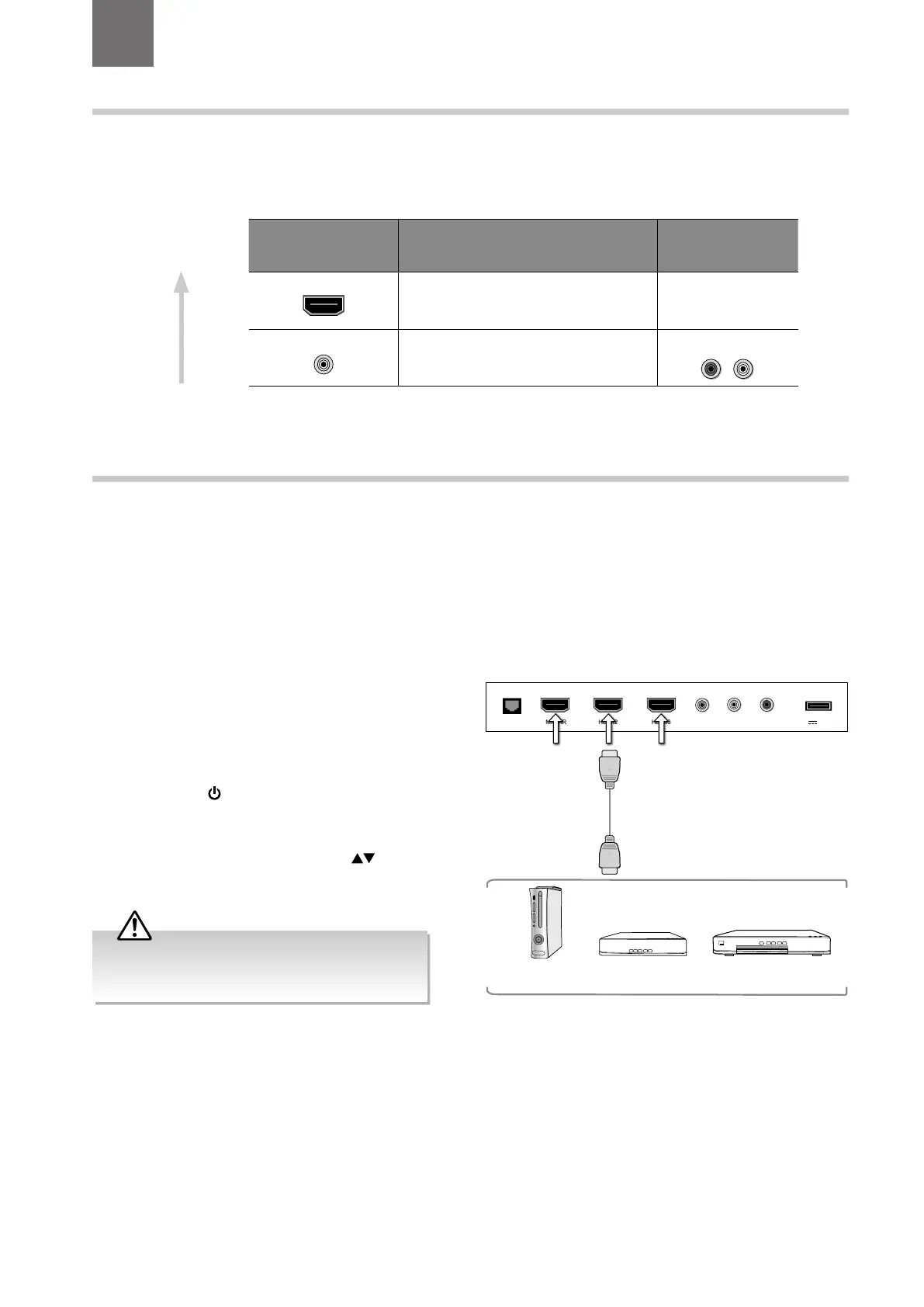

Connecting an AV Device Using an HDMI Cable
• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection)
Protocol.
• This TV has a total of 3 HDMI input sockets, please make sure the correct input source is selected and corresponds to your
connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to
the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x
1080p.
1. Use an HDMI cable to connect the TV’s HDMI input
socket to the external AV device’s HDMI output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the center of joystick function button under the
TV frame or the
button on the remote control to
turn on your TV.
4. Press the INPUT button on the remote control to
display the Input Source menu. Use the
buttons
on the remote control to select HDMI 1 / HDMI 2 /
HDMI 3 and then press the OK button to confirm.
Making Video and Audio Connections
Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and
connection procedures.
When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are
complete.
Signal Type
Separate Audio
Connection Required
HDMI
(480i/480p/576i/576p/720p/1080i/1080p)
No
Composite Video
Yes
Best Video
Performance
3 Connections
Chapter
3
Although this TV is able to connect to an HDMI
device, it is possible that some devices may not
operate correctly.
HDMI1(ARC) HDMI2 HDMI3 RLVIDEO
LAN
USB
5V 500mA
Rear Bottom View of TV
HDMI Cable
(not included)
Blu-ray Player / DVD Player /
Recorder
Set-top BoxGame Console
To Next Page
