2
10
Preparation

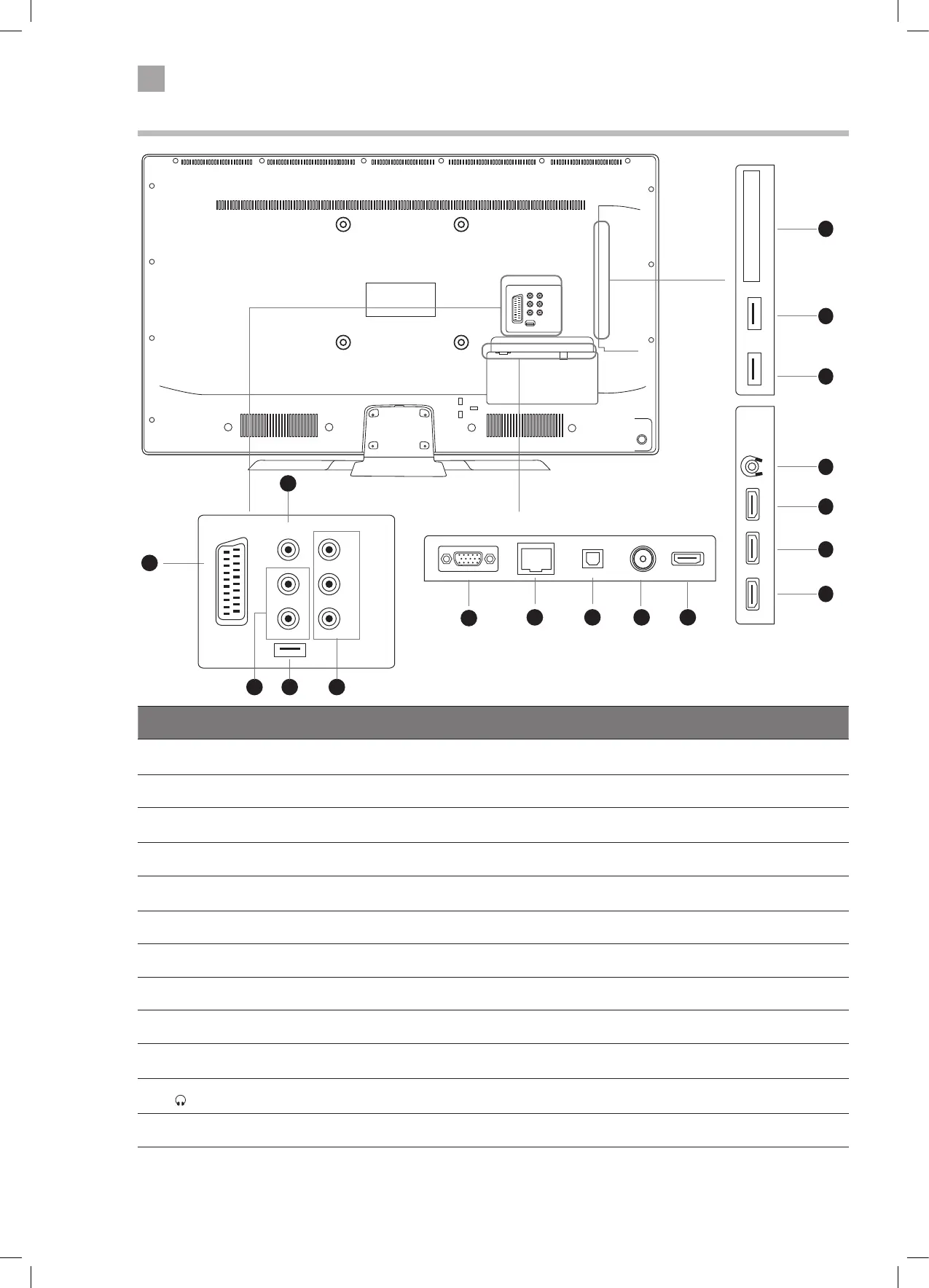

Rear View and Sockets
2
4
53
1
10
10
10
11
3
3
12
Item Description
1 SCART
Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
Select SCART 1.
2 AUDIO IN AUDIO (L/R) output sockets on external video devices.
3 USB (Side USB 3.0 x 1)
Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
4 SubW.OUT Connects to an external subwoofer.
5 YPbPr
Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
6 VGA Connects to a computer or other devices with a VGA interface.
7 LAN Connect to a router via a LAN cable for smart TV services.
8 Optic OUT Optical audio out (Digital) - Connects to an audio device via an optical cable.
9 ANT Connects to the aerial socket on the wall with the RF coaxial cable.
10 HDMI 1,2,3(ARC) & 4
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
11
Connects to the headphones. The headphone jack must only have 2 divisions to mute the
audio.
12 COMMON INTERFACE Allows the insertion of a Common Access Module.
COMMON INTERFACE
5Vdc
Max. 500mA
5Vdc
Max. 500mA
SubW.OUT
AUDIO IN
SCART
LAN
USB
5V DC max 500mA
Pr
Pb
Y / Video
R
L
VGA ANT.
HDMI 3
ARC
HDMI 4HDMI 2
HDMI 1
USB
Optic.OUT
USB 3.0
COMMON INTERFACE
5Vdc
Max. 500mA
5Vdc
Max. 500mA
SubW.OUT
AUDIO IN
SCART
LAN
USB
5V DC max 500mA
Pr
Pb
Y / Video
R
L
VGA ANT.
HDMI 3
ARC
HDMI 4HDMI 2
HDMI 1
USB
Optic.OUT
USB 3.0
COMMON INTERFACE
5Vdc
Max. 500mA
5Vdc
Max. 500mA
SubW.OUT
AUDIO IN
SCART
LAN
USB
5V DC max 500mA
Pr
Pb
Y / Video
R
L
VGA ANT.
HDMI 3
ARC
HDMI 4HDMI 2
HDMI 1
USB
Optic.OUT
USB 3.0
7 8 9 10
6
JVC 49' LED Smart 4K Ultra HD TV LT-49C870(A) Manual.indd 10 20/09/2017 17:04
