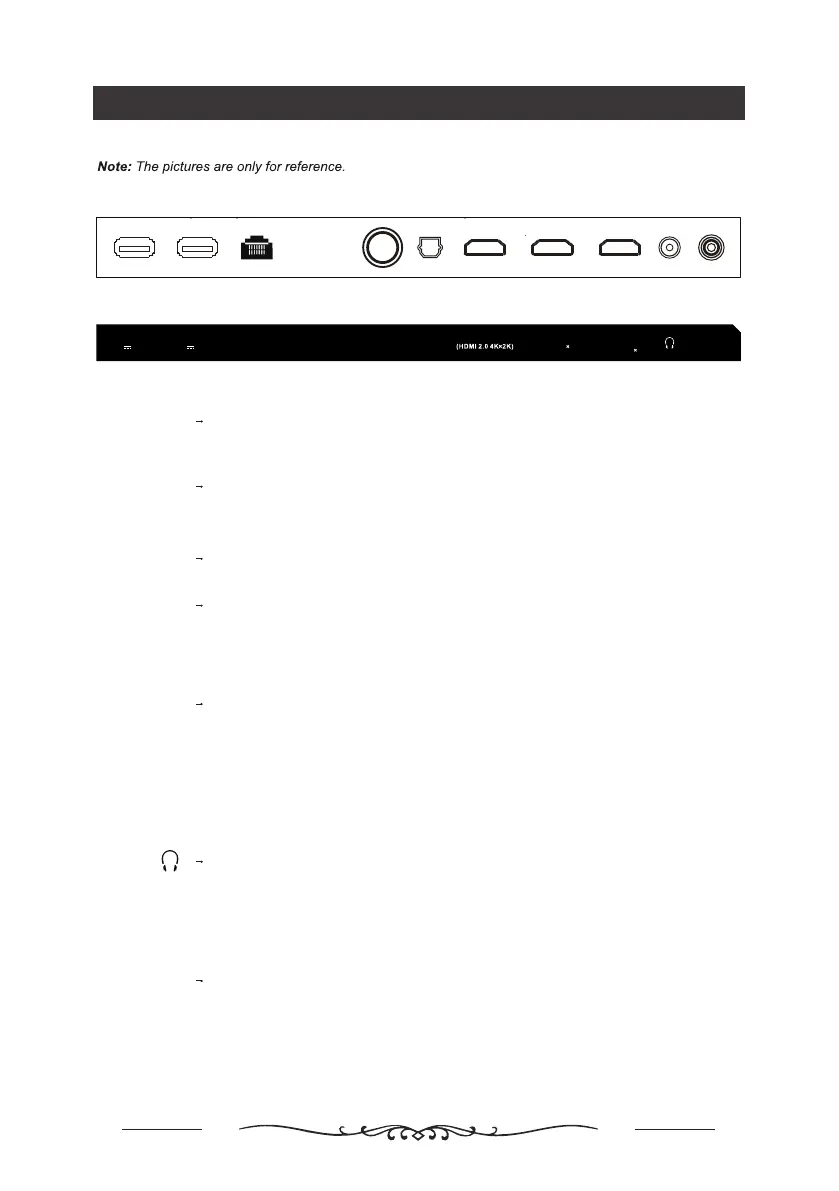

Sockets
5
ANTENNA IN
ANTENNA IN socket (input)
This socket can be used to connect the outside aerial or cable network.
HDMI
EARPHONE socket (output)
Allow you to connect earphones to listen to the sound coming from the TV.
When earphones are connected, sound output from the TV speakers is muted.
Note: Excessive sound pressure from earphones can cause hearing loss.
USB
HDMI socket (input)
The HDMI (High-Definition Multimedia Interface) socket can be used to connect a
PC with a compatible video card installed, certain DVD players or a high-definition
compatible digital satellite decoder.This socket provides an uncompressed digital
connection that carries both video and audio data by way of an integrated mini-plug
cable.
Note: Audio Return Channel (ARC) returns audio though the same HDMI channel that
is used to send video to the TV. If switched on, you won't need a separate audio cable
to return sound from the TV. ARC Feature is available on HDMI 1.
USB sockets (input)
These sockets can be used to connect an USB device for playback or PVR recording.
Note: There are 2 USB ports available for this model.
LAN
RJ45 plug for connecting to external modem or network access equipment.
LAN
AV audio sockets (input)
AV IN
The AV IN sockets can be used to connect a range of equipment, including
video recorders, camcorders, decoders, satellite receivers, DVD players, or
games consoles. The VIDEO IN socket provides composite video connection.
Note: Use the adaptor cable included to convert the 3.5mm AV input to RCA inputs.
OPTICAL
OPTICAL OUT socket
This output can be used to connect a compatible digital audio receiver.
ANTENNA
IN
5V
500mA
USB 2.0
5V
500mA
USB 2.0
LAN AV IN
OPTICAL
OUT
HDMI 3
HDMI 2
(HDMI 2 .0 4K 2K)
HDMI 1
(HDMI 2 .0 4K 2K)
( ARC )
