JVC MX-GA3V User Manual

MX-GA3V
1-8

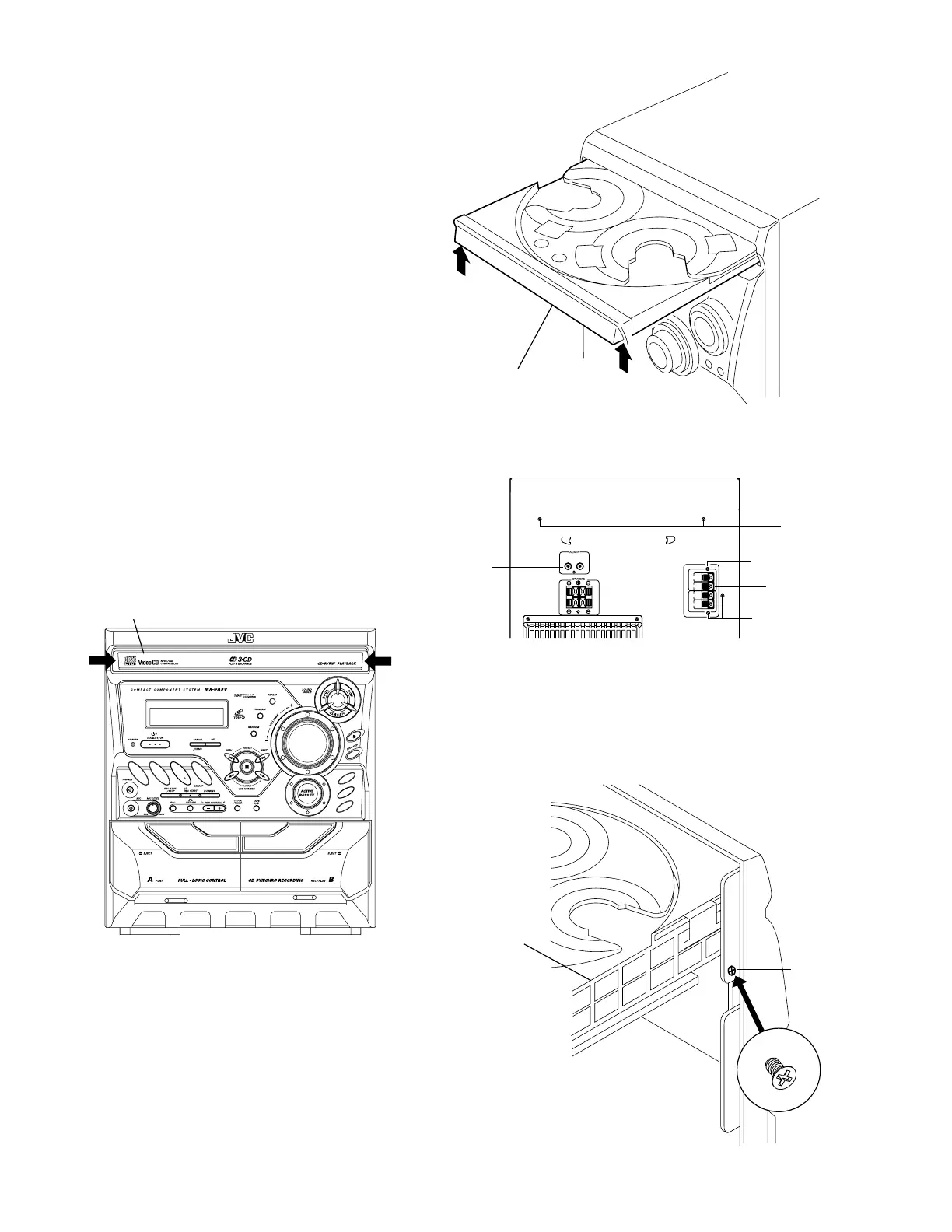

 Removing the CD changer unit
(See Fig.6 to 9)

Prior to performing the following procedures, remove
the top cover and both sides BOARD.
[Caution] Although the CD mechanism unit can be
removed without removing the CD tray
panel, it is still recommended to remove it
in order to prevent damage.
a. From the front panel side of this set, push in the
sections marked with arrows and pull out the CD
tray toward the front.
b. Remove the CD tray panel by pushing both of its
extremities upward in the direction of the arrows.
c. Push the CD tray deep into the set.
1. Disconnect the cord wires from the CD PCB CN704,
CN607, CN1101 and disconnect CN1 (shield wire)
from back panel.
2.
From the rear of the set, remove two screws E and
two screws G on the front panel left and right side.
3. Handle the CD changer unit rear, take out the unit.
Fig.10
CD changer
unit
Fig.6
CD tray panel
Fig.7
CD tray panel
Fig.8
Accessory
terminal
Antenna
termianl
E
F
F
G
