Prior to performing the following procedures, remove
the metal cover and the CD changer mechanism
assembly.
Disconnect the card wires from connector CN302,
CN306, CN307 and the harness from CN301,
CN305 on the inside of the main board.
Turn over the body and remove the four screws E.
Release the joint d and e on both sides of the body
using a screwdriver, and detach the front panel
assembly toward the front.
1.
2.
3.

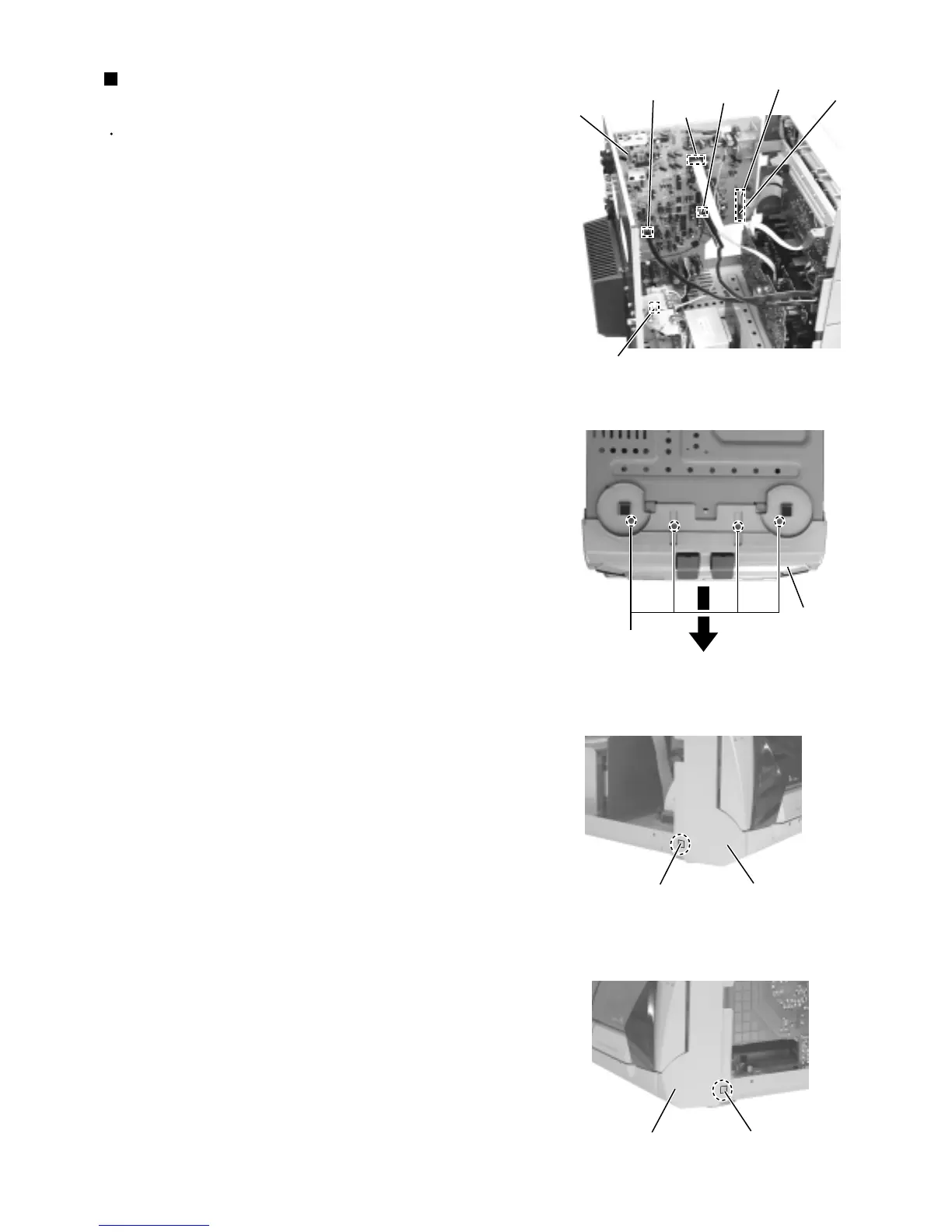

Removing the front panel assembly
(See Fig.8 to 11)
Fig.9
Fig.8
Fig.10
Fig.11
Main board
CN301
CN302
CN306
CN307
CN312
CN305
E
Front panel
assembly
Front panel
assembly
Joint d
Front panel
assembly
Joint e
(Bottom)
To Next Page
