3.5.3 Removing the speaker
(See Figs.5 and 6)
• Remove the front panel assembly.
(1) From the front side of the speaker main body, remove the
four screws A attaching the speaker. (See Fig.5.)
(2) Take out the speaker from the speaker main body and dis-
connect the wires (red/black, gray/black) from the terminal
of the speaker. (See Fig.6.)

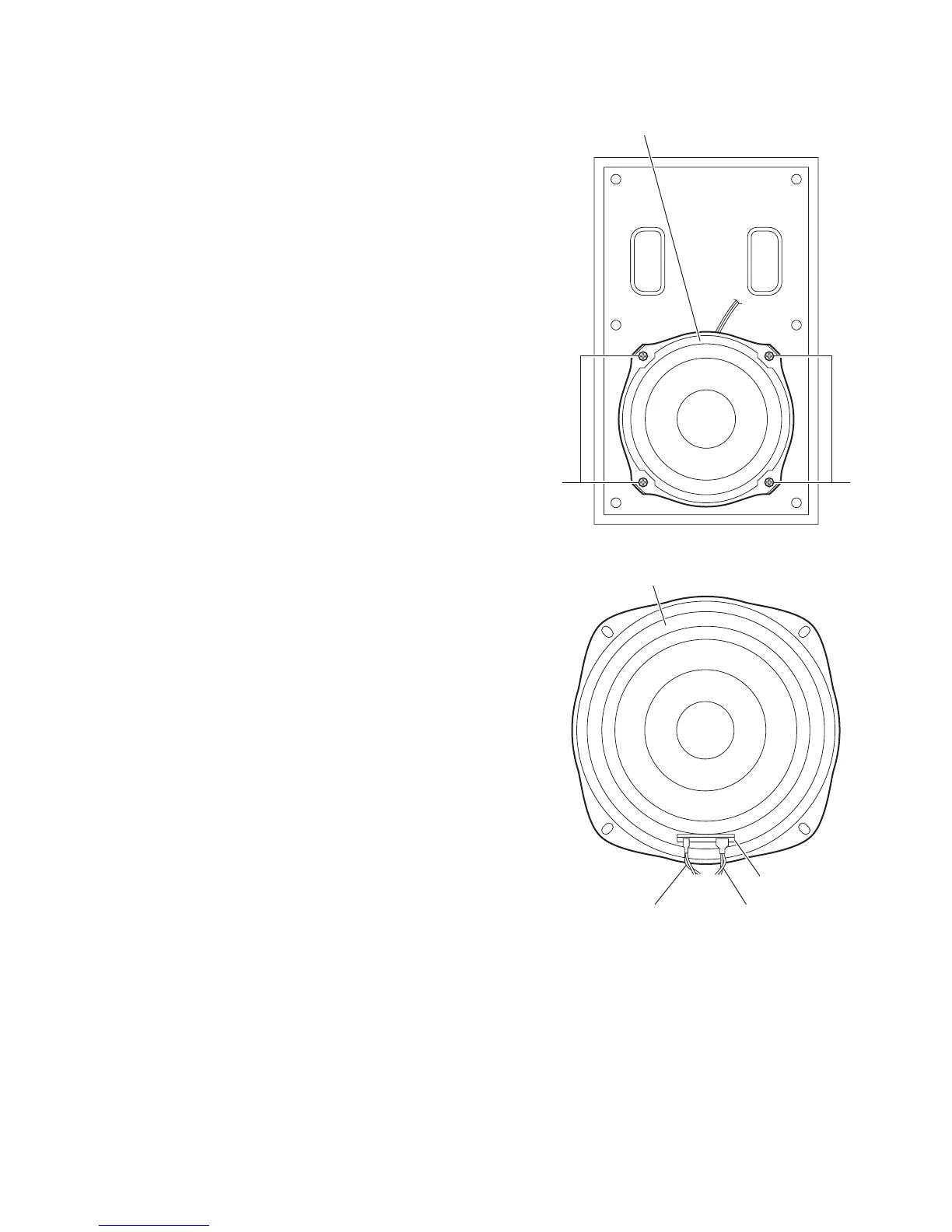

Fig.5
Fig.6
Speaker
A A
Speaker
Wires (gray/black) Wires (red/black)
Terminal
