SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the metal cover
(See Figs.1 to 3)
(1) From the both sides of the main body, remove the two
screws A attaching the metal cover. (See Figs.1 and 2.)
(2) From the back side of the main body, remove the six
screws B attaching the metal cover. (See Fig.3.)
(3) Remove the metal cover from the main body while lifting
the rear section of the metal cover in the direction of the ar-
row. (See Figs.1 and 2.)

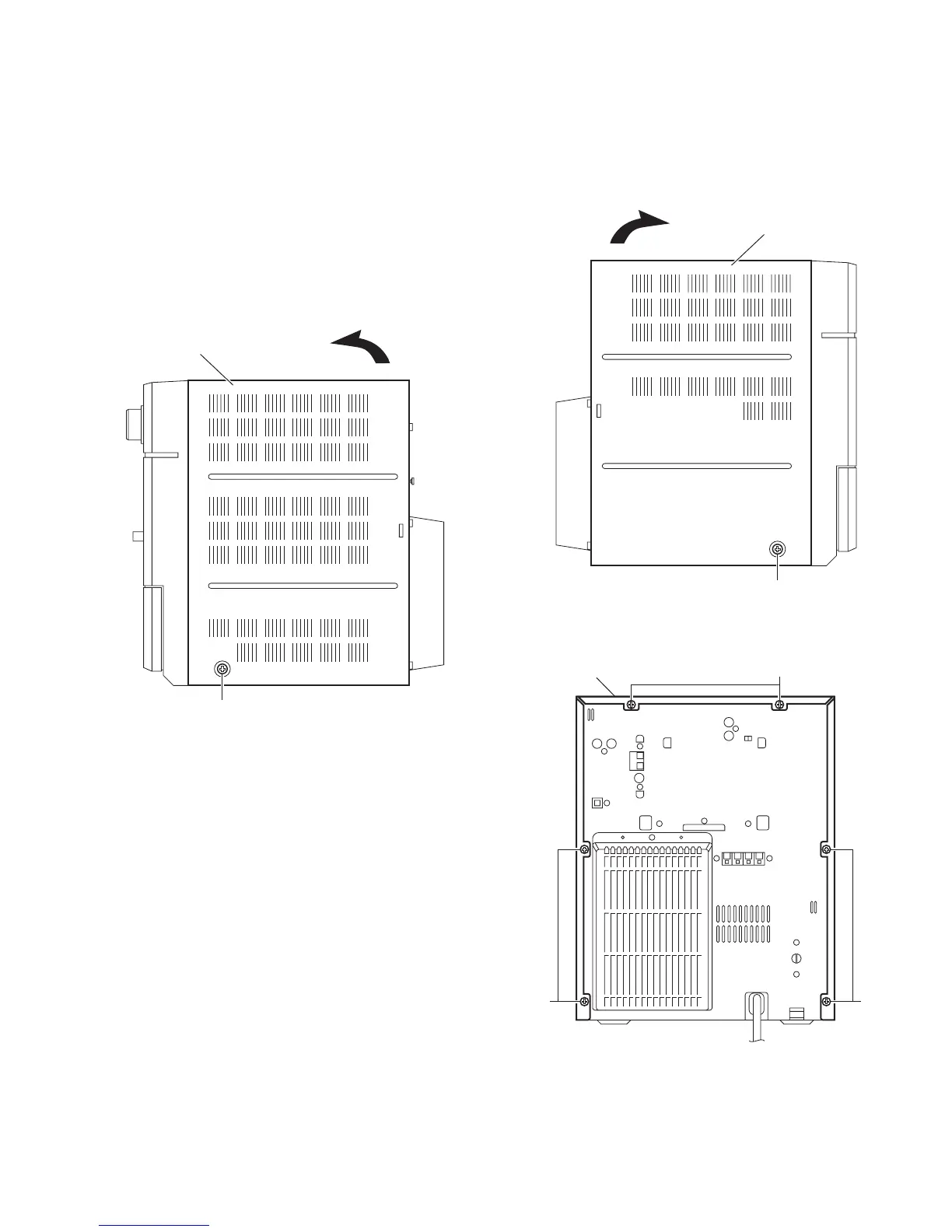

Fig.1
Fig.2
Fig.3
Metal cover
A
Metal cover
A
Metal cover
B
B
B
